Not Specified Fiber Bragg Grating

Fiber Bragg Gratings For Lasers
DK Photonics
Add to watch list
Fiber Bragg Gratings For Lasers
FBG Mirrors are based on the reflective properties of the Fiber Bragg Grating (FBG) written in the core of an optical fiber waveguide. FBG mirrors’ principal application is to use a high and low reflector to form a stable laser cavity having the lasing wavelength selected by the low reflector. Fiber Bragg grating (FBG) is a ...

Specifications
Center Wavelength Range: 1018-2040nm
FBG Length: Not Specified
Reflectivity: 30 - 99%
Data Sheet
Chirped Fiber Bragg Grating
DK Photonics
Add to watch list
Chirped Fiber Bragg Grating
Chirped fiber Bragg ggratings are structures where the optical period of the index modulation varies along the grating length. DK Photonics manufactures the chirped fiber Bragg grating by using chirped phase mask. By modifying the intensity of grating depth for reaching any predefined gain compensation profile that creates the gain ...

Specifications
Center Wavelength Range: 1550-1650nm
FBG Length: Not Specified
Reflectivity: 30 - 99%
Data Sheet
Athermal Packaged Fiber Bragg Grating
DK Photonics
Add to watch list
Athermal Packaged Fiber Bragg Grating
FBG is the key component that acts as a rejection filter in telecommunications. The center wavelength of FBG is very sensitive to changes of temperature or strain. The package of Athermal Packaged FBG is used by the technology of temperature compensation to make the wavelength very stable.

Specifications
Center Wavelength Range: 1-980nm
FBG Length: Not Specified
Reflectivity: >1%
Data Sheet
Fiber Bragg Grating Wavelength Locker
DK Photonics
Add to watch list
Fiber Bragg Grating Wavelength Locker
Fiber Bragg gratings are basic components for a wide range of applications in the areas of telecommunications, lasers and sensors. The wavelength of pump laser diode is varied at different operating temperatures.   Fiber Bragg Gratings (FBG) with low reflectivity are used to stabilize the wavelength and intensity of ...

Specifications
Center Wavelength Range: 980-1550nm
FBG Length: Not Specified
Reflectivity: >1%
Center Wavelength: 940, 972-978, 1064, 1070 nm
Wavelength Tolerance: +/-0.25 nm
...
Data Sheet
Long Period Grating
DK Photonics
Add to watch list
Long Period Grating
Long period grating couples light from a guided mode into forward propagating cladding modes where it is lost due to absorption and scattering. The coupling from the guided mode to cladding modes is wavelength dependent so we can obtain a spectrally selective loss. It is an optical fiber structure with the properties periodically ...

Specifications
Center Wavelength Range: 1500-1600nm
FBG Length: Not Specified
Reflectivity: >1%
Data Sheet
FBG Filter Embedded Connector
DK Photonics
Add to watch list
FBG Filter Embedded Connector
The FBG Filter Embedded Connector is designed for fiber-to-the-home applications where monitoring optical fiber communication lights is required. It utilizes a wavelength of 1625nm or 1650nm for maintenance testing and incorporates optical filters that allow the communication light to pass while cutting off the test light in front of ...

Specifications
Center Wavelength Range: 1625-1650nm
FBG Length: Not Specified
Reflectivity: 10 - 90%
FWHM: 10 nm
Fiber Type: SMF-28e or other
...
Data Sheet
Phase Shifted Fiber Bragg Grating
DK Photonics
Add to watch list
Phase Shifted Fiber Bragg Grating
Phase shifted Fiber Bragg gratings (FBG) show a very narrow transmission band within its reflection bandwidth. DK Photonics can offer athermal packaged phase shifted FBG.

Specifications
Center Wavelength Range: 1510-1590nm
FBG Length: Not Specified
Reflectivity: 30 - 99%
Data Sheet
Fiber Bragg Gratings (FBG) for Fiber Lasers | 1.0um, 1.5um, 2.0um
GKER LASER TECHNOLOGY CO.,LTD.
Add to watch list
Fiber Bragg Gratings (FBG) for Fiber Lasers | 1.0um, 1.5um, 2.0um
GKER high-quality 1.0um/1.5um/2.0um fiber grating reflectors (also called Fiber Laser cavity mirrors) are written in specialty double clad optical fiber with optimized chirped Fiber Bragg Grating (FBG) writing technology. They are specially designed for 1.5um high power continuous and pulsed fiber lasers, suitable for ...

Specifications
Center Wavelength Range: 1018-2050nm
FBG Length: Not Specified
Reflectivity: Not Specified
Peak Reflectivity For HR: >99%
Reflectivity For LR: 10% 15% or specify
...
Data Sheet
50G Fiber Bragg Gratings Filter
Broptics Technology Inc
Add to watch list
50G Fiber Bragg Gratings Filter
When the channel spacing getting narrower, FBG filter gains its advantages of precise center wavelength position and channel extraction capability. Broptics makes 50G FBG filter specifically for high demanding Dense WDM and Optical Add/Drop Multiplexer applications. While Thin Film filter is technically uneasy to meet 50G filter ...

Specifications
Center Wavelength Range: 1532-1536nm
FBG Length: Not Specified
Reflectivity: 3 - 90%
Data Sheet

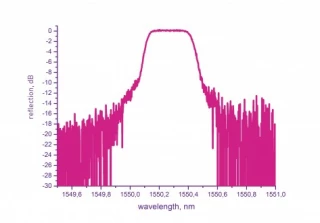

APODIZED FIBER BRAGG GRATINGS GTL-FBG-AD-820
FORC-Photonics
Add to watch list
APODIZED FIBER BRAGG GRATINGS GTL-FBG-AD-820
Fiber Bragg Gratings have many applications in optical communication, laser technique and sensing systems. The FBGs are widely used in-fiber mirrors or optical filters with narrow band optical spectrum. FBGs can be used like a sensitive element for strain and temperature measuring.

Specifications
Center Wavelength Range: 600-2300nm
FBG Length: Not Specified
Reflectivity: >90%
Reflectivity, %: 0.5 ÷ 99.9
Bandwidth (WFHM), Nm: 0.1 ÷ 1.2
...
Data Sheet
FIBER BRAGG GRATING FOR RAMAN LASERS GTL-FBG-RL-880
FORC-Photonics
Add to watch list
FIBER BRAGG GRATING FOR RAMAN LASERS GTL-FBG-RL-880

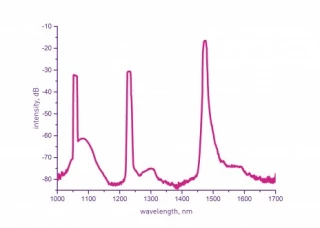

Highly efficiently multicascaded Raman lasers based on phosphosilicate fibers can be created at different wavelength. Raman shift by 1330 cm-1 in opposite to Ge-doped fibers is approximately three times larger.  Output emission spectrum of two-cascade 1.48 µm Raman fiber laser is presented in the graph.

Specifications
Center Wavelength Range: 1240-1484nm
FBG Length: Not Specified
Reflectivity: >90%
Wavelength Range, Nm: 1240,1270,1484
Types Of Fiber: Single-Mode, PM, Double clad, LMA
...
Data Sheet
On FindLight marketplace you will find 11 different Not Specified Fiber Bragg Grating from suppliers around the world. With just a few clicks you can compare different Not Specified Fiber Bragg Grating and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
