APODIZED FIBER BRAGG GRATINGS GTL-FBG-AD-820

Specifications

Center Wavelength Range: 600 – 2300 nm
FBG Length: Not Specified
Reflectivity: >90%
Reflectivity, %: 0.5 ÷ 99.9
Bandwidth (WFHM), Nm: 0.1 ÷ 1.2
SLSR, DB: › 25
FBG Recoating: None, Acrylate, Polyimide, Aluminium, Copper
Types Of Fiber: Single-Mode, PM, Double clad, LMA
Document icon Download Data Sheet Download icon

Features

The Apodized FBGs have special profile of induced refractive index and grating strength along the grating length. Therefore, side lobe level becomes smaller compared with that of the ordinary gratings. There are a lot of apodized profiles which lead to the optimization of various FBG parameters (strength, FWHM, SLSR).

Applications

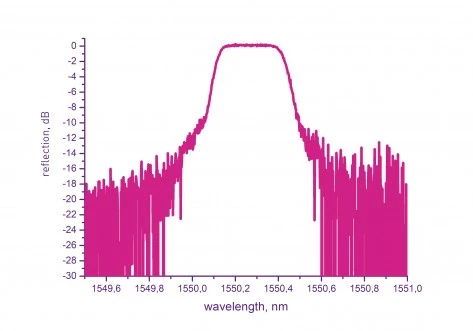

Apodized FBGs are useful in sensing applications, signal and Brillouin scatter filtering and others. Possible values of SLSR for different grating strengths are in the range of -10dB to -30dB. The reflection spectrum of Apodized HR FBGs is presented in the graph.
