Description
The GKER Photonics 2.0µm High Power Chirped Fiber Bragg Grating (FBG) is engineered for optimal performance in high-power continuous and pulsed fiber lasers. Utilizing advanced chirped FBG writing technology, these gratings are inscribed in specialty double-clad optical fibers, making them ideal for applications requiring high power handling capabilities of up to 200W. The FBG is suitable for both single-mode and large mode area (LMA) fibers, offering exceptional reliability and stability across a range of demanding environments.
This FBG offers excellent conversion efficiency, a wide variety of fiber compatibility, and an extremely low-temperature slope, ensuring consistent performance even under challenging conditions. GKER provides customizable options, including various bandwidths and reflectivity levels, to meet the specific needs of different laser applications. The product is available in either a heat-dissipative package or a recoated-only configuration, ensuring flexibility in design and application.
2.0um High Power Chirped FBG for Fiber Laser
Specifications
| Center Wavelength Range: | 1908 – 1980 nm |
|---|---|
| FBG Length: | Not Specified |
| Reflectivity: | Not Specified |
| Typical Central Wavelength¹: | 1908, 1940, 1980 nm |
| Tolerance On Central Wavelength: | 1 nm |
| Type Of Reflector: | HR LR - |
| Peak Reflectivity²: | >99.5 10±2 % |
| FWHM² (-3dB): | 2±0.2 1±0.1 nm |
| Side Mode Suppression Ratio: | 20 10 dB |
| Wavelength Mismatch (LR To HR): | 0.2 m |
| Input/output Fiber Length: | 1 m |

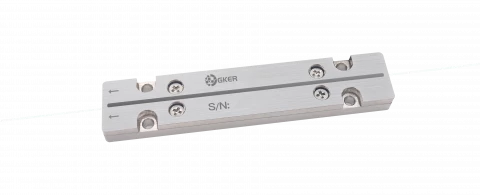

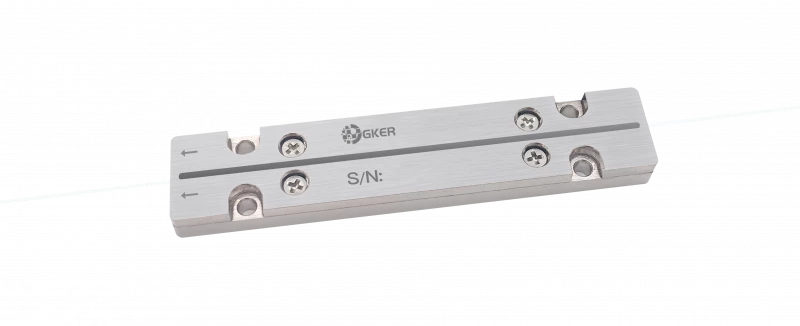

| Package Type: | Recoated or High Power Metal Housing - |
Download Data Sheet
Features
- High Power Handling: Supports pump power handling up to 200W for robust performance
- Low Temperature Slope: Maintains stable operation across temperature variations
- High Conversion Efficiency: Maximizes energy transfer for efficient laser operation
- Wide Fiber Compatibility: Suitable for single-mode and LMA fibers, offering versatility
- Customizable Reflectivity: Available in high and low reflectivity options to match application requirements
Applications
- High Power Fiber Laser
- Pulsed Fiber Laser
Frequently Asked Questions
What is the maximum pump power handling capacity of this FBG?
What are the central wavelengths available for this FBG?
What types of reflectors are available?
What is the typical reflectivity of this FBG?
What are the options for package types?
What is the Full Width at Half Maximum (FWHM) for the gratings?
How much side mode suppression ratio does the FBG offer?
What is the tolerance on the central wavelength?
What is the typical wavelength mismatch between Low Reflector and High Reflector?
What fiber types are available for this FBG?
