1.0um High Power Chirped FBG

Name: 1.0um High Power Chirped FBG
Brand: Connet Laser Technology Co., Ltd.
Availability: InStock

Description

The 1.0µm High Power Chirped Fiber Bragg Grating (FBG) from Connet is a high-performance optical reflector designed for use in advanced fiber laser systems. Written into specialty double-clad fibers using precision chirped grating technology, this chirped fiber Bragg grating is engineered for both continuous wave and pulsed high-power lasers operating around the 1µm wavelength range. Offering excellent thermal stability, high reflectivity, and exceptional mode control, this 1um FBG serves as a reliable cavity mirror in both single-mode and large mode area (LMA) fiber configurations. With pump and signal handling capabilities up to 3000W, this grating is available in recoated or heat-dissipative metal packages to suit diverse deployment needs.

Whether you require broadband reflectivity or matched low/high reflector pairs, Connet’s solution offers customization across wavelength, bandwidth, and fiber type, making it ideal for OEMs and integrators in industrial laser manufacturing.

Connet can provide various bandwidths and accurately matched high and low reflectivity gratings for different applications. They are offered in heat dissipative package or recoated only.

Specifications

Center Wavelength Range:	1012 – 1120 nm
FBG Length:	Custom
Reflectivity:	>1%, >90%
Typical Central Wavelength:	1018, 1050, 1064, 1070, 1080, 1090 nm
Tolerance On Central Wavelength:	1 nm
Type Of Reflector:	HR/LR
Peak Reflectivity:	>99.5/10±2 %
FWHM (-3dB):	2~3±0.3/1±0.1 nm
Side Mode Suppression Ratio:	20/10 dB
Wavelength Mismatch (LR To HR):	0.2 nm
Input/output Fiber Length:	1 m

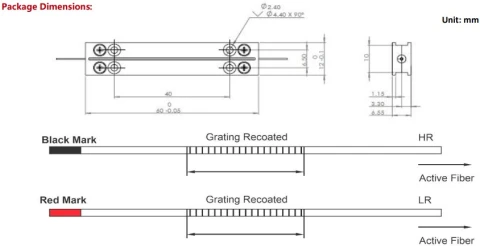

Package Type:	Recoated or High Power Metal Housing

Download Data Sheet

Features

Extremely Low Temperature Slope
High Conversion Efficiency
High Power Handling
Outstanding Reliability
Wide Variety of Fiber Types
Precision-engineered chirped fiber Bragg grating optimized for 1µm wavelength operation
Compatible with high-power CW and pulsed fiber lasers
High reflectivity: HR >99.5%, LR ~10±2%
Bandwidth options from 1 to 3nm for flexible pulse shaping
Wide selection of double-clad fibers (e.g., 10/125 to 25/400 μm)
Superior thermal management via heat-dissipative metal packaging
Customizable central wavelengths: 1018–1090nm
Exceptional side mode suppression for stable operation

Applications

High Power Fiber Laser
Pulsed Fiber Laser
High-power fiber lasers (CW and pulsed) at 1.0µm
Laser cavity design in industrial and research lasers
Pulse compression and stretching in ultrafast systems
Spectral filtering in advanced optical systems
OEM laser modules for materials processing
Nonlinear optical system stabilization
Aerospace and defense-grade laser subsystems

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Connet Laser Technology Co., Ltd.

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the primary use of this 1um FBG?

It is primarily used as a cavity mirror in high-power fiber lasers operating around 1µm, offering efficient reflection and pulse management.

What are the typical central wavelengths supported?

Supported central wavelengths include 1018nm, 1050nm, 1064nm, 1070nm, 1080nm, and 1090nm, with a tolerance of ±1nm.

Can I request a custom grating specification?

Yes. Connet provides customization on central wavelength, reflectivity, bandwidth, and fiber type upon request.

What is the power handling capacity of this chirped fiber Bragg grating?

Depending on the fiber type and packaging, the FBG can handle pump powers up to 3000W and signal powers up to 2000W.

What fiber types are supported?

Fiber types include 10/125, 15/130, 20/130, 30/250, 20/400, 25/400, among others, covering both SM and LMA fibers.

What packaging options are available?

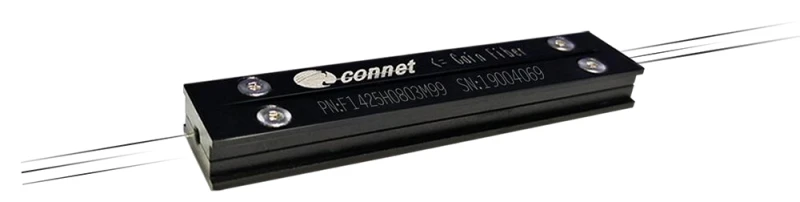

The product is available in recoated fiber form or high-power heat-dissipating metal housings, suitable for integration in harsh environments.

How does the chirped FBG differ from uniform FBGs?

Chirped FBGs have a varying grating period that allows for dispersion management and pulse shaping, which is essential in ultrafast laser applications.
