TILTED FIBER BRAGG GRATING GTL-FBG-TL-860

Name: TILTED FIBER BRAGG GRATING GTL-FBG-TL-860
Brand: FORC-Photonics

Description

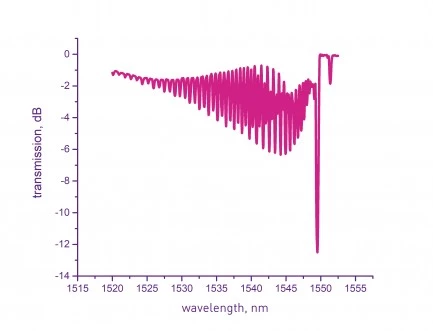

The Tilted FBG has an angle between wave vector of the grating and fiber axis. Therefore cladding modes resonances peaks become more intensive compared to ordinary gratings. TFBG cladding modes resonances wavelength are highly sensitive to the refractive index of the medium outside the fiber cladding. TFBGs are useful in sensing applications. Possible value of tilt angle is 1⁰ ÷ 45⁰. The TFBG transmission spectrum of 10mm length with tilt angle of 3⁰ is presented in the graph.

Specifications

Center Wavelength Range:	600 – 2300 nm
FBG Length:	Custom
Reflectivity:	>90%
Tilt Angle, °:	1 ÷ 45
Reflectivity, %:	5 ÷ 99
Bandwidth (WFHM), Nm:	0.1 ÷0.8
SLSR, DB:	› 8
FBG Length :	1 ÷ 20
FBG Recoating:	None, Acrylate, Polyimide, Aluminium, Copper

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Applications

Fiber Bragg Gratings have many applications in optical communication, laser technique and sensing systems. The FBGs are widely used like in-fiber mirrors or optical filters with narrow band optical spectrum. FBGs can be used like a sensitive element for strain and temperature measuring.

Request Quote

To: FORC-Photonics
Re: TILTED FIBER BRAGG GRATING GTL-FBG-TL-860

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: Russia
Sold by:: FORC-Photonics
On FindLight:: since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is a Tilted Fiber Bragg Grating (TFBG)?

A Tilted Fiber Bragg Grating (TFBG) is a type of fiber grating where the angle between the wave vector of the grating and the fiber axis is tilted. This results in more intensive cladding modes resonances compared to ordinary gratings.

What are the applications of Fiber Bragg Gratings (FBGs)?

Fiber Bragg Gratings (FBGs) have many applications in optical communication, laser techniques, and sensing systems. They can be used as in-fiber mirrors, optical filters with narrow band optical spectrum, and as sensitive elements for strain and temperature measuring.

What is the possible range of tilt angle for TFBGs?

The possible range of tilt angle for Tilted Fiber Bragg Gratings (TFBGs) is 1⁰ to 45⁰.

What is the wavelength range for the TFBG GTL-FBG-TL-860?

The wavelength range for the TFBG GTL-FBG-TL-860 is 600nm to 2300nm, with a tolerance of ±0.1 to ±1. Custom requests for wavelength range are also available.

What is the reflectivity range for the TFBG GTL-FBG-TL-860?

The reflectivity range for the TFBG GTL-FBG-TL-860 is 5% to 99%, with a custom request option for 2% to 5%.
