Description

he OPTOMAN PP-UVFS-50.8-9.52-ULLM19 (No SCC) is a premium ion beam sputtered (IBS) ultrafast laser mirror engineered for Yb-based femtosecond and picosecond laser systems operating at 1030 nm. Designed for reliable performance across a 0° to 45° angle of incidence, it combines greater than 99.9% reflectivity, low group delay dispersion (GDD), and excellent laser-induced damage threshold (LIDT) to preserve ultrashort pulse quality while enabling flexible optical system layouts.

Manufactured on a precision 50.8 mm UV fused silica substrate, this dielectric mirror delivers outstanding optical quality, low scatter, and stable long-term performance in demanding industrial, scientific, and research environments. Its wide-angle coating design allows system designers to steer laser beams without sacrificing reflectivity or pulse integrity, making it an excellent choice for advanced laser processing, nonlinear optics, microscopy, and ultrafast research applications.

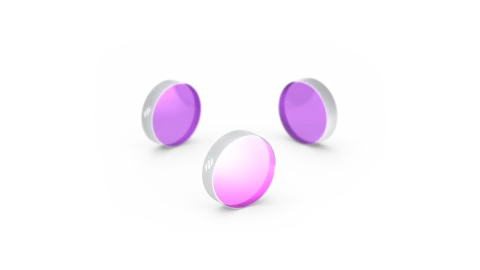

PP-UVFS-50.8-9.52-ULLM19 (No SCC) 1030 nm Wide-Angle Ultrafast Laser Mirror

Specifications

Diameter: 50.8 mm
Thickness: 9.52 mm
Wavelength Range: 1030 – 1030 nm
Clear Aperture (CA): 80 %
Substrate Material: UV Grade Fused Silica
Angle Of Incidence (AOI): 0 – 45 deg
Surface Quality, S1 (scratch-dig): 20-10
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): Lambda/2
Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): Lambda/8
Parallelism: 5 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRa @ AOI, @ Peak Wavelength): 99.9 %
GDD R @ AOI, @ Peak Wavelength: 30 fs^2
Manufacturer Part Number (MPN): PP-UVFS-50.8-9.52-ULLM19 (no SCC)
FindLight SKU: FL-24521

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-50.8-9.52-ULLM19 (No SCC)
  • Optimized for 1030 nm Yb-doped ultrafast laser systems.
  • Wide operating angle of incidence from 0° to 45° for maximum optical design flexibility.
  • HR reflectivity greater than 99.9% at 1030 nm.
  • Low |GDD| below 30 fs² helps maintain femtosecond and picosecond pulse duration.
  • Precision 50.8 mm diameter UV fused silica substrate with 9.52 mm thickness.
  • Ion Beam Sputtered (IBS) dielectric coating for exceptional coating density, durability, and stability.
  • High laser-induced damage threshold suitable for high-peak-power ultrafast lasers.
  • 20-10 scratch-dig surface quality with precision flatness for excellent beam quality.
  • Uncoated rear surface minimizes unwanted coating interactions where required.
  • Ideal for demanding industrial, laboratory, and OEM laser integration.

Applications

  • Beam steering in Yb:YAG, Yb:KGW, and Yb:KYW ultrafast laser systems
  • Femtosecond and picosecond laser beam delivery
  • Ultrafast laser micromachining and precision materials processing
  • Nonlinear optics and frequency conversion setups
  • Optical amplifier and regenerative amplifier systems
  • Scientific laser laboratories and university research
  • Multiphoton microscopy and advanced imaging systems
  • Ultrafast spectroscopy
  • OEM laser equipment integration
  • High-power photonics and precision optical instruments

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelength is this mirror optimized for?
The PP-UVFS-50.8-9.52-ULLM19 is specifically optimized for 1030 nm ultrafast laser sources, making it ideal for Yb-based femtosecond and picosecond laser systems.
What makes this mirror suitable for ultrafast lasers?
Its combination of extremely high reflectivity, low group delay dispersion, and high laser-induced damage threshold allows ultrashort pulses to be reflected efficiently while minimizing pulse distortion and maintaining beam quality.
Can the mirror be used at different angles of incidence?
Yes. Unlike conventional laser mirrors designed for a single angle, this model maintains high performance across a broad 0° to 45° angle of incidence, giving optical engineers greater flexibility when designing beam paths.
What coating technology is used?
The mirror utilizes advanced Ion Beam Sputtering (IBS) coating technology, which produces dense, durable dielectric coatings with excellent environmental stability, low optical losses, and consistent long-term performance.
Which applications benefit most from this mirror?
This mirror is ideal for beam steering in ultrafast laser systems used for precision micromachining, semiconductor processing, nonlinear optics, microscopy, spectroscopy, laser research, and OEM photonic equipment where high reflectivity and low pulse dispersion are essential.

Got more questions? Use the inquiry form to ask the supplier directly.
