Broadband Dielectric Mirrors for Optical Systems

Did You Know?

Did you know that a well-designed broadband dielectric mirror can maintain >99% reflectivity over more than an octave in wavelength (for example, 400–900 nm) by carefully apodizing the stack of quarter-wave and non-quarter-wave layers? Unlike metallic mirrors, their high reflectivity comes from constructive interference at multiple interfaces with alternating high and low refractive indices, but this also means that performance is extremely angle- and polarization-dependent, so a 0–10° AOI spec at s/p-average reflectance is very different from a 45° p-polarized spec. A common misconception is that “broadband” implies insensitivity to incidence angle; in practice, even a 5–10° deviation from the design angle can shift the effective stopband enough to degrade reflectivity at the band edges. For high-peak-power femtosecond systems, broadband dielectric stacks must also be dispersion-engineered to keep group delay ripple below a few fs over the band, otherwise pulse compression and temporal contrast are compromised.

Related Resources

Frequently Asked Questions

A broadband dielectric mirror is a multilayer thin-film stack (typically alternating high- and low-index dielectric materials) designed to provide high reflectivity over a wide spectral range at a specified incidence angle and polarization. Unlike metal mirrors, which rely on free-electron reflection and have moderate reflectance and higher absorption, dielectric mirrors achieve very high reflectance with low absorption but are more sensitive to wavelength, angle, and polarization.

Overview of Broadband Dielectric Mirrors

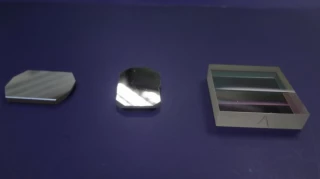

Broadband Dielectric Mirrors are multilayer interference coatings engineered to provide high reflectivity over a wide spectral range. Unlike metallic mirrors, these components rely on alternating high and low refractive index layers to achieve high Rλ across a specified bandwidth while maintaining low absorption and high laser damage thresholds.

On FindLight, Broadband Dielectric Mirrors are offered for UV, VIS, NIR, and MIR regions, with options tailored for both narrow and very broad bands. Substrates typically include fused silica, BK7, sapphire, and other optical glasses, enabling use in demanding laser and imaging applications.

Typical Specifications

When evaluating Broadband Dielectric Mirrors, engineers usually consider:

  • Wavelength range: Common bands include 250–450 nm (UV), 400–700 nm (VIS), 650–1100 nm (NIR), and customized multi-octave ranges.

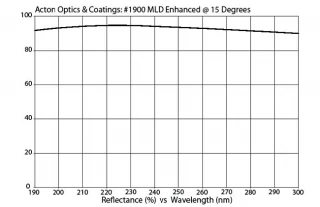

  • Reflectivity (Rλ): Typical values are >99% over the design band at a specified angle of incidence (AOI) and polarization (s, p, or unpolarized).
  • Angle of incidence: Normal incidence (0–5°), 45°, or other fixed AOIs, with coatings optimized for minimal spectral shift and stable performance.
  • Surface quality and figure: Scratch-dig (e.g., 10-5, 20-10) and flatness (λ/10 to λ/2 at 633 nm) for high-finesse or imaging systems.
  • Laser damage threshold: Specified in J/cm² or GW/cm² for ns, ps, or fs pulses; critical for high-power Broadband Dielectric Mirrors.
  • Substrate geometry: Round or rectangular optics, typical diameters from 0.5 to 2 inches, various thicknesses, and optional wedge.

Applications and Buyer Guidance

Broadband Dielectric Mirrors are used in ultrafast laser beam paths, OPO/OPA setups, tunable laser sources, spectroscopy, microscopy, and broadband imaging systems. Their low loss and controlled dispersion are important in pulse compression and chirped-pulse amplification schemes.

On FindLight you can compare Broadband Dielectric Mirrors by spectral band, AOI, reflectivity curve, substrate material, and damage threshold. Review datasheets for coating design range versus guaranteed range, group delay dispersion (when available), and environmental durability (MIL or ISO test compliance). For budgetary and technical evaluation, request quotes and additional documentation from multiple suppliers directly through the platform—no registration is required to initiate inquiries.
