Description

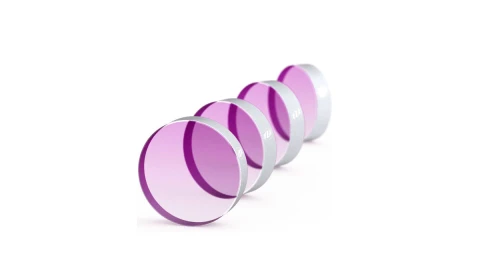

The OPTOMAN PP-UVFS-12.7-6.35-UBBHR25 is a precision broadband dielectric laser mirror engineered for ultrafast laser systems operating across the 730–870 nm wavelength range. Manufactured on a high-quality UV fused silica substrate and coated using advanced Ion Beam Sputtering (IBS) technology, this mirror delivers exceptionally high reflectivity, excellent environmental stability, and outstanding resistance to high laser power.

Designed for a 45° angle of incidence, the mirror provides average reflectivity above 99.7% throughout its operating band while maintaining superior wavefront quality with surface flatness better than λ/10. Its durable optical coating minimizes absorption and scattering, making it an ideal choice for demanding femtosecond and picosecond laser applications where long-term stability and reliable performance are essential.

PP-UVFS-12.7-6.35-UBBHR25 Ultrafast Broadband HR Laser Mirror

Specifications

Diameter: 12.7 mm
Thickness: 6.35 mm
Wavelength Range: 730 – 870 nm
Clear Aperture (CA): 80 %
Substrate Material: UV Grade Fused Silica
Angle Of Incidence (AOI): 45 – 45 deg
Surface Quality, S1 (scratch-dig): 10-5
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): Lambda/10
Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): Unspecified
Parallelism: 0.17 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRs @ AOI, @ Peak Wavelength): 99.7 %
Reflectivity (HRp @ AOI, @ Peak Wavelength): 99.7 %

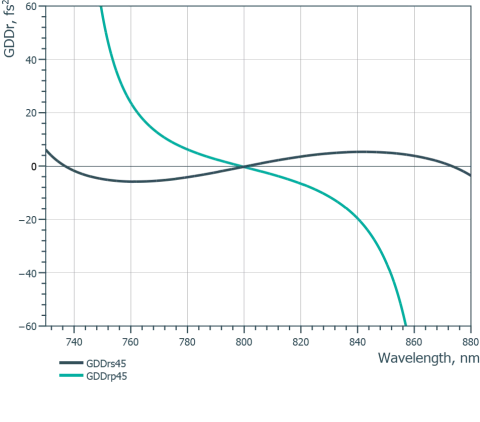

GDD Rs @ AOI, @ Peak Wavelength: 0 fs^2
GDD Rp @ AOI, @ Peak Wavelength: 0 fs^2
Manufacturer Part Number (MPN): PP-UVFS-12.7-6.35-UBBHR25
FindLight SKU: FL-24517

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-12.7-6.35-UBBHR25
  • Broadband high-reflectivity coating optimized for 730–870 nm
  • HRavg >99.7% across 730–870 nm

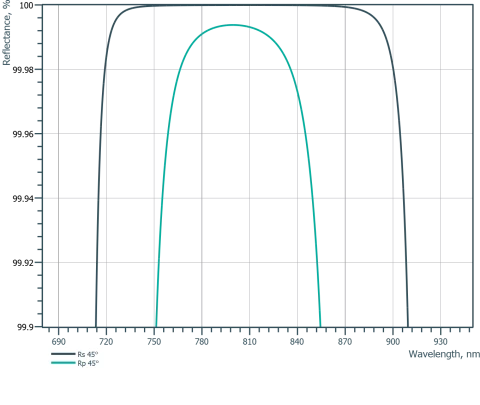

  • HRs >99.7% across 685–935 nm for s-polarization
  • Optimized for 45° angle of incidence
  • Premium UV Fused Silica (UVFS) substrate
  • 12.7 mm diameter with 6.35 mm thickness
  • Surface flatness <λ/10 @ 633 nm
  • IBS (Ion Beam Sputtered) dielectric coating for exceptional durability
  • High resistance to laser-induced damage for ultrafast laser applications
  • Low scattering and excellent wavefront preservation
  • Suitable for industrial, scientific, and research laser systems

Applications

  • Ti:Sapphire ultrafast laser systems
  • Femtosecond and picosecond laser beam steering
  • Broadband near-infrared laser beam delivery
  • Optical amplifier and oscillator cavities
  • Ultrafast spectroscopy
  • Nonlinear optics experiments
  • Precision laser diagnostics
  • Biomedical laser research
  • Quantum optics laboratories
  • High-power photonics research
  • Optical instrumentation and beam routing

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelength range is this mirror optimized for?
The PP-UVFS-12.7-6.35-UBBHR25 is designed for broadband high reflection from 730 nm to 870 nm, making it suitable for ultrafast near-infrared laser systems.
What is the reflectivity of this laser mirror?
The mirror provides greater than 99.7% average reflectivity throughout the 730–870 nm operating range, with s-polarized reflectivity exceeding 99.7% over 685–935 nm at a 45° angle of incidence.
Which laser systems commonly use this optical mirror?
This mirror is well suited for Ti:Sapphire lasers, femtosecond and picosecond laser platforms, ultrafast spectroscopy setups, nonlinear optical systems, and other high-performance scientific laser instruments.
Why is Ion Beam Sputtering important for this mirror?
Ion Beam Sputtering produces dense, highly stable dielectric coatings with low optical loss, excellent environmental durability, and superior laser damage resistance, ensuring reliable long-term performance in demanding laser applications.
What optical substrate is used?
The mirror is fabricated from premium UV fused silica, a material valued for its excellent optical homogeneity, low thermal expansion, and outstanding transmission and stability in precision laser systems.

Got more questions? Use the inquiry form to ask the supplier directly.
