Description

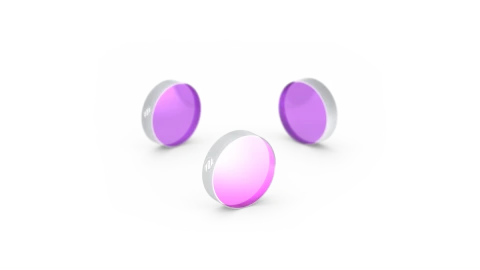

The OPTOMAN PP-UVFS-50.8-9.52-UBBHR18-NO-SSC is a premium broadband ultrafast laser mirror engineered for demanding femtosecond and picosecond laser applications operating across the 700–900 nm spectral range. Manufactured on a precision UV fused silica substrate using advanced Ion Beam Sputtering (IBS) coating technology, this dielectric mirror delivers exceptionally high reflectivity, low group delay dispersion (GDD), and excellent laser-induced damage threshold (LIDT), helping preserve ultrashort pulse quality while minimizing optical losses.
Optimized for 45° angle of incidence, the mirror is particularly well suited for Ti:Sapphire laser systems, ultrafast spectroscopy, nonlinear optics, microscopy, and precision scientific research. The uncoated rear surface (NO-SSC version) provides flexibility for integration into custom optical assemblies where a stress-compensating coating is unnecessary. Its precision-polished optical surface, excellent flatness, and broadband performance make it an ideal beam-steering solution for advanced photonics laboratories and industrial laser platforms.
PP-UVFS-50.8-9.52-UBBHR18-NO-SSC Broadband Ultrafast Laser Mirror 700–900 nm
Specifications
| Diameter: | 50.8 mm |
|---|---|
| Thickness: | 9.52 mm |
| Wavelength Range: | 700 – 900 nm |
| Clear Aperture (CA): | 80 % |
| Substrate Material: | UV Grade Fused Silica |
| Angle Of Incidence (AOI): | 45 – 45 deg |
| Surface Quality, S1 (scratch-dig): | 20-10 |
| Surface Quality, S2 (scratch-dig): | Inspection Polished |
| Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): | Lambda/2 |
| Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): | Lambda/8 |
| Parallelism: | 5 arcmin |
| S1 Surface: | Coated |
| S2 Surface: | Uncoated |
| Reflectivity (HRs @ AOI, @ Peak Wavelength): | 99.9 % |
| Reflectivity (HRp @ AOI, @ Peak Wavelength): | 99.5 % |
| GDD R @ AOI, @ Peak Wavelength: | 20 fs^2 |
| Manufacturer Part Number (MPN): | PP-UVFS-50.8-9.52-UBBHR18 (no SCC) |
| FindLight SKU: | FL-24520 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Manufacturer Part Number: PP-UVFS-50.8-9.52-UBBHR18-NO-SSC
- Broadband high-reflectivity coating optimized for 700–900 nm
- High reflectance exceeding 99.9% (s-polarization) across the operating bandwidth
- Low Group Delay Dispersion (Low GDD) for preserving ultrashort laser pulses
- Designed for 45° angle of incidence
- UV fused silica substrate offers excellent thermal stability and low absorption
- Precision Ion Beam Sputtering (IBS) dielectric coating for long-term durability
- Measured high Laser-Induced Damage Threshold suitable for ultrafast laser systems
- Precision optical surface with excellent flatness and low scatter
- 50.8 mm diameter with 9.52 mm thickness for integration into standard optical mounts
- Uncoated rear surface (NO-SSC) for applications where stress compensation is not required
Applications
- Ti:Sapphire femtosecond oscillators and regenerative amplifiers
- Ultrafast beam steering and laser delivery systems
- Pump-probe spectroscopy
- Nonlinear optical experiments
- Multiphoton and two-photon microscopy
- Time-resolved spectroscopy
- Ultrafast laser material research
- Optical laboratories and research facilities
- Precision photonics instrumentation
- Scientific laser development and OEM integration
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9001.90.6000 |
| Estimated US Tariff: | 10% |
Frequently Asked Questions
What wavelength range is this mirror designed for?
What does the "NO-SSC" designation mean?
Why is low Group Delay Dispersion important?
Can this mirror be used with high-power ultrafast lasers?
Which applications benefit most from this mirror?
