Description

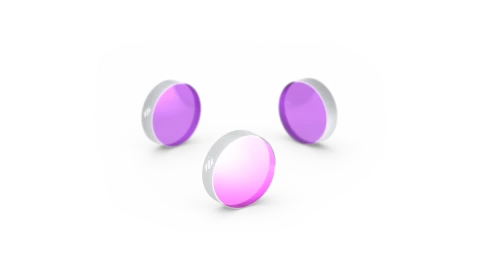

The OPTOMAN PP-UVFS-12.7-6.35-UBBHR18 is a premium broadband ultrafast laser mirror engineered for demanding femtosecond laser applications in the 700–900 nm spectral range. Manufactured on a high-quality UV fused silica (UVFS) substrate with a 12.7 mm diameter and 6.35 mm thickness, this dielectric mirror combines exceptionally high reflectivity with ultra-low group delay dispersion (GDD) to preserve ultrashort pulse duration and beam quality.

Produced using advanced Ion Beam Sputtering (IBS) coating technology, the mirror delivers outstanding coating density, environmental durability, and excellent laser-induced damage threshold (LIDT), making it suitable for continuous operation in research laboratories, industrial laser systems, and precision photonics applications. Optimized for a 45° angle of incidence, it provides greater than 99.9% s-polarized reflectivity across 700–900 nm and greater than 99.5% p-polarized reflectivity from 730–870 nm, ensuring reliable performance in Ti:Sapphire and other ultrafast laser platforms.

PP-UVFS-12.7-6.35-UBBHR18 Broadband Low GDD Ultrafast Laser Mirror

Specifications

Diameter: 12.7 mm
Thickness: 6.35 mm
Wavelength Range: 700 – 900 nm
Clear Aperture (CA): 80 %
Substrate Material: UV Grade Fused Silica
Angle Of Incidence (AOI): 45 – 45 deg
Surface Quality, S1 (scratch-dig): 20-10
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): Lambda/8
Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): Unspecified
Parallelism: 0.5 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRs @ AOI, @ Peak Wavelength): 99.9 %
Reflectivity (HRp @ AOI, @ Peak Wavelength): 99.5 %
GDD R @ AOI, @ Peak Wavelength: 20 fs^2
Manufacturer Part Number (MPN): PP-UVFS-12.7-6.35-UBBHR18
FindLight SKU: FL-24519

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-12.7-6.35-UBBHR18
  • Premium UV fused silica (UVFS) substrate with 12.7 mm diameter and 6.35 mm thickness
  • Broadband high-reflectivity coating optimized for 700–900 nm
  • Reflectivity exceeding 99.9% (s-polarization) and 99.5% (p-polarization) over the specified operating range
  • Ultra-low Group Delay Dispersion (Low GDD) minimizes pulse broadening for femtosecond lasers
  • Optimized for 45° angle of incidence
  • Ion Beam Sputtering (IBS) coating provides exceptional coating density, durability, and long operational lifetime
  • High laser-induced damage threshold suitable for high-power ultrafast laser systems
  • Excellent optical flatness for precise beam steering and minimal wavefront distortion
  • Ideal for scientific research, laser development, spectroscopy, microscopy, and nonlinear optics applications.

Applications

  • Ti:Sapphire femtosecond laser systems
  • Ultrafast spectroscopy
  • Multipass cell (MPC) optical systems
  • Nonlinear frequency conversion setups
  • Pump-probe experiments
  • Optical parametric amplifiers (OPA)
  • Ultrafast microscopy
  • Precision beam delivery and beam steering
  • Scientific laser research laboratories
  • Industrial ultrafast laser processing systems

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the operating wavelength range of the PP-UVFS-12.7-6.35-UBBHR18?
This ultrafast laser mirror is optimized for broadband operation from 700 nm to 900 nm, making it an excellent choice for Ti:Sapphire and other femtosecond laser systems operating within this spectral region.
Why is low Group Delay Dispersion (GDD) important?
Low GDD helps preserve the duration and shape of ultrashort laser pulses. By minimizing dispersion introduced by reflective optics, the mirror maintains pulse quality, improves experimental accuracy, and maximizes laser system performance.
What advantages does Ion Beam Sputtering (IBS) coating provide?
IBS coatings produce dense, highly stable optical films with exceptional environmental resistance, high reflectivity, excellent coating uniformity, and superior laser damage resistance. These characteristics contribute to long service life and reliable operation in demanding laser applications.
Can this mirror be used in high-power ultrafast laser systems?
Yes. The mirror is designed specifically for ultrafast laser applications requiring high reflectivity, low dispersion, and excellent laser-induced damage resistance, making it well suited for many research and industrial high-power femtosecond laser systems when operated within its specified limits.
Which applications benefit most from this broadband ultrafast mirror?
The mirror is ideal for Ti:Sapphire lasers, ultrafast spectroscopy, nonlinear optics, optical parametric amplifiers, multipass cells, pump-probe experiments, precision beam steering, and advanced scientific photonics research requiring excellent pulse preservation and optical stability.

Got more questions? Use the inquiry form to ask the supplier directly.
