Description

The OPTOMAN PP-UVFS-38.1-9.5-LLM96 is a premium low-loss ultrafast laser mirror engineered for high-power femtosecond and picosecond laser systems operating in the 1025–1035 nm wavelength range. Manufactured on a high-quality UV fused silica substrate with advanced Ion Beam Sputtered (IBS) dielectric coatings, it delivers greater than 99.99% p-polarized reflectivity at 45° angle of incidence, minimizing optical losses while preserving pulse quality and beam stability.

Designed for demanding industrial and scientific environments, this mirror combines excellent surface flatness, low absorption, and exceptional coating durability to support continuous operation in high-average-power Yb:YAG laser systems. Its precision optical performance makes it an excellent choice for laser micromachining, materials processing, research laboratories, and advanced photonics applications.

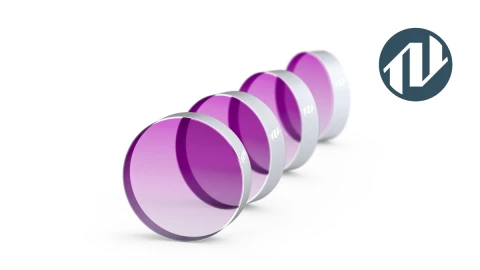

PP-UVFS-38.1-9.5-LLM96 Low-Loss Ultrafast Laser Mirror 1025–1035 nm

Specifications

Diameter: 38.1 mm
Thickness: 9.5 mm
Wavelength Range: 1025 – 1035 nm
Clear Aperture (CA): 90 %
Substrate Material: UV Grade Fused Silica
Angle Of Incidence (AOI): 45 – 45 deg
Surface Quality, S1 (scratch-dig): 20-10
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): Lambda/10
Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): Unspecified
Parallelism: 5 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRa @ AOI, @ Peak Wavelength): 99.99 %
Manufacturer Part Number (MPN): PP-UVFS-38.1-9.5-LLM96
FindLight SKU: FL-24515

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-38.1-9.5-LLM96
  • Optimized for 1025–1035 nm ultrafast laser wavelengths
  • >99.99% p-polarized reflectivity at 45° angle of incidence
  • Premium Ion Beam Sputtered (IBS) dielectric coating for exceptional durability and long-term stability
  • UV Fused Silica (Corning 7980 0F) substrate with excellent thermal and optical properties
  • Precision 38.1 mm diameter and 9.5 mm thickness
  • Surface flatness <λ/10 @ 633 nm over a 15 mm area for superior wavefront quality
  • High-quality 20-10 scratch-dig optical surface
  • Low absorption and scatter help reduce thermal lensing and beam drift
  • Designed for demanding femtosecond and picosecond laser applications requiring maximum efficiency and beam stability.

Applications

  • High-power femtosecond laser systems
  • Picosecond laser beam steering
  • Precision laser micromachining
  • Semiconductor and electronics manufacturing
  • Medical laser instrumentation
  • Scientific and university laser laboratories
  • Yb:YAG ultrafast laser systems operating near 1030 nm
  • Nonlinear optics research
  • Industrial laser materials processing
  • OEM ultrafast laser integration.

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelength range is the PP-UVFS-38.1-9.5-LLM96 designed for?
The mirror is optimized for ultrafast laser systems operating between 1025 nm and 1035 nm, making it ideal for Yb:YAG-based lasers centered around 1030 nm.
Why is the IBS coating beneficial for ultrafast lasers?
Ion Beam Sputtered coatings provide dense, highly stable dielectric layers with extremely low optical loss, excellent environmental durability, and consistent long-term performance under demanding laser operating conditions.
What angle of incidence is this mirror designed for?
The mirror is optimized for 45° angle of incidence with p-polarized light, delivering reflectivity greater than 99.99% within its design wavelength range.
Which laser systems can use this mirror?
The mirror is compatible with many high-power Yb:YAG ultrafast laser platforms used in industrial and research environments, including femtosecond and picosecond laser sources operating near 1030 nm.
What applications benefit most from this low-loss mirror?
It is particularly well suited for precision laser micromachining, high-average-power beam delivery, nonlinear optics experiments, laser research, and advanced manufacturing processes where minimizing optical loss and maintaining beam quality are critical.

Got more questions? Use the inquiry form to ask the supplier directly.
