Description

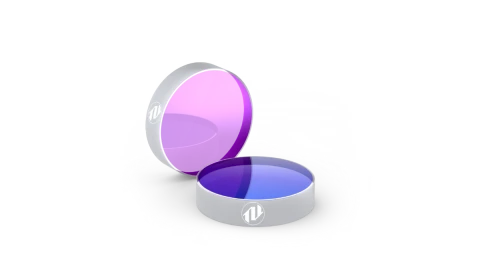

The OPTOMAN PP-UVFS-50.8-9.52-BBHR51 is a premium broadband ultrafast laser mirror engineered for demanding femtosecond and picosecond laser applications. Manufactured on a precision UV fused silica substrate and coated using advanced Ion Beam Sputtering (IBS) technology, it delivers exceptionally high reflectivity with low group delay dispersion (GDD) across a broad spectral range, helping preserve ultrashort pulse integrity while minimizing optical losses.

Designed for operation at a 45° angle of incidence, this broadband mirror provides Rp >99.9% from 730–870 nm and Rs >99.9% from 700–920 nm, making it an excellent choice for Ti:Sapphire laser systems, tunable ultrafast sources, nonlinear optics, spectroscopy, and advanced photonics research. Its durable IBS coating offers excellent environmental stability, high laser damage resistance, and long-term performance in both laboratory and industrial environments.

PP-UVFS-50.8-9.52-BBHR51 Broadband Ultrafast Laser Mirror 700–920 nm

Specifications

Diameter: 50.8 mm
Thickness: 9.52 mm
Wavelength Range: 700 – 920 nm
Clear Aperture (CA): 90 %
Substrate Material: UV Grade Fused Silica
Angle Of Incidence (AOI): 45 – 45 deg
Surface Quality, S1 (scratch-dig): 20-10
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): Lambda/10
Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): Unspecified
Parallelism: 5 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRs @ AOI, @ Peak Wavelength): 99.9 %
Reflectivity (HRp @ AOI, @ Peak Wavelength): 99.9 %
Manufacturer Part Number (MPN): PP-UVFS-50.8-9.52-BBHR51
FindLight SKU: FL-24494

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-50.8-9.52-BBHR51
  • Broadband ultrafast mirror optimized for 700–920 nm
  • High reflectivity: Rp >99.9% (730–870 nm) and Rs >99.9% (700–920 nm)
  • Optimized for 45° angle of incidence
  • Low group delay dispersion for ultrashort pulse preservation
  • Precision UV fused silica substrate
  • Ion Beam Sputtered (IBS) dielectric coating for superior durability
  • 50.8 mm diameter with 9.52 mm thickness
  • Surface flatness better than λ/10 @ 633 nm
  • Surface quality 20-10 scratch-dig
  • Clear aperture greater than 90%
  • Excellent resistance to humidity, temperature variations, and mechanical wear

Applications

  • Ti:Sapphire femtosecond laser systems
  • Picosecond laser platforms
  • Tunable ultrafast laser sources
  • Pump-probe spectroscopy
  • Multiphoton microscopy
  • Nonlinear optics experiments
  • Optical parametric amplifier (OPA) systems
  • Laser beam steering and routing
  • Ultrafast scientific research
  • Precision photonics instrumentation

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What laser wavelength range is this mirror designed for?
The mirror is optimized for broadband operation from 700 nm to 920 nm, making it suitable for Ti:Sapphire and other tunable ultrafast laser sources operating across this spectral region.
Why is low group delay dispersion important?
Low GDD minimizes pulse broadening, helping femtosecond and picosecond laser pulses maintain their original duration and temporal profile throughout the optical system.
What coating technology is used on this mirror?
The mirror uses Ion Beam Sputtered (IBS) dielectric coatings, providing excellent optical performance, high environmental durability, low scattering, and long-term coating stability.
Is this mirror intended for a specific angle of incidence?
Yes. The optical coating is specifically optimized for 45° angle of incidence, ensuring maximum reflectivity and stable broadband performance under these conditions.
Which laser systems commonly use this mirror?
This mirror is well suited for Ti:Sapphire laser platforms and broadband ultrafast laser systems used in spectroscopy, nonlinear optics, biomedical imaging, optical research, and advanced scientific laboratories.

Got more questions? Use the inquiry form to ask the supplier directly.
