Page 2 - Spherical

Precision Optical Components: Cone Prisms, Rod Lenses, Cylindrical Lenses, Aspherical Lenses, CaCO3 Beam Splitters, and Micro Lenses
Lumens Photonics
Add to watch list
Precision Optical Components: Cone Prisms, Rod Lenses, Cylindrical Lenses, Aspherical Lenses, CaCO3 Beam Splitters, and Micro Lenses
Compare
At Lumens Solutions, we specialize in a broad spectrum of high-precision optical components designed to meet the diverse needs of the photonics industry. Our offerings include: Cone Prism and Rod Lens: Essential for light manipulation in applications requiring precise directional control and focus. Cylindrical Lens: Expertly ...

Specifications
Material: H-K9L
Diameter: 50 mm
Focal Length: 20 mm
Edge Thickness, Te: 3 mm
Lens Type: Plano-Convex
Data Sheet
Inquire Price
BK7 Double Convex Lens
Albrighter Technology Co.,Limited
Add to watch list
BK7 Double Convex Lens
Compare
BK7 double-convex lenses (DCX) are versatile optical components renowned for their excellent transmittance across a broad spectrum ranging from 350nm to 2000nm. These lenses are primarily utilized in finite imaging applications where precise focusing and clarity are essential. Crafted from BK7 glass, these lenses offer superior ...

Specifications
Material: BK7, UVFS, CaF2, ZnSe, H-K9L
Diameter: 2 mm
Focal Length: 2.5 mm
Edge Thickness, Te: 1 mm
Lens Type: Bi-Convex
Data Sheet
Inquire Price
BK7 Double Concave Lenses
Albrighter Technology Co.,Limited
Add to watch list
BK7 Double Concave Lenses
Compare
The BK7 Double Concave Lens (DCV) is a specialized optical component designed to diverge parallel light beams. Similar to the plano concave lens, the double concave lens features a negative focal length, resulting in the dispersion of light rays. With both sides possessing the same radius of curvature, these lenses are crucial for ...

Specifications
Material: BK7, UVFS, CaF2, ZnSe, H-K9L
Diameter: 3 mm
Focal Length: -6 mm
Edge Thickness, Te: 1 mm
Lens Type: Bi-Concave
Data Sheet
Inquire Price
N-BK7 Plano Concave Lenses
Albrighter Technology Co.,Limited
Add to watch list
N-BK7 Plano Concave Lenses
Compare
The Plano Concave Lens (PCV) is a specialized optical component primarily designed for diverging parallel light. Crafted from high-quality BK7 material, these lenses offer excellent transmittance from visible light to near-infrared wavelengths (350-2000nm). Widely utilized in laser systems and telescopes, BK7 Plano Concave Lenses are ...

Specifications
Material: BK7, UVFS, CaF2, H-K9L
Diameter: 4 mm
Focal Length: -6 mm
Edge Thickness, Te: 2 mm
Lens Type: Plano-Concave
Data Sheet
Inquire Price
BK7 Plano Convex Lenses
Albrighter Technology Co.,Limited
Add to watch list
BK7 Plano Convex Lenses
Compare
The Plano Convex Lens (PCX) is a versatile optical component primarily used for focusing parallel light or transferring spot light into parallel light. With a design optimized for high transmittance from visible light to near-infrared wavelengths (350-2000nm), BK7 Plano Convex Lenses offer exceptional optical performance across a ...

Specifications
Material: BK7, UVFS, CaF2, ZnSe, H-K9L
Diameter: 3 mm
Focal Length: 4 mm
Edge Thickness, Te: 0.8 mm
Lens Type: Plano-Convex
Data Sheet
Inquire Price
Industrial Sapphire Lenses by Sapphcom Sapphire
Sapphcom Sapphire Competence
Add to watch list
Industrial Sapphire Lenses by Sapphcom Sapphire
Compare
We supply sapphire lenses in various designs such as cylindrical lenses, spherical lenses, microlenses, converging lenses (biconvex, plano-convex, concavo-convex) and diverging lenses (biconcave, plano-concave, convex-concave).

Specifications
Material: Al2O3 (Sapphire)
Diameter: 1 mm
Focal Length: Not Specified
Edge Thickness, Te: Not Specified
Lens Type: Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave
Data Sheet
Inquire Price

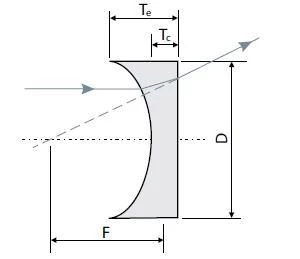

14PCV25-05-1 Plano-Concave Lenses
Altos Photonics, Inc.
Add to watch list
14PCV25-05-1 Plano-Concave Lenses
Compare
Plano-Concave Lenses are negative focus length lenses with a flat surface on one side and a spherical surface on the other. These lenses are designed to diverge incident light and are commonly used in optical systems to expand beams or increase focal lengths. Available in various materials like BK7, UVFS, and CaF2, these lenses ...

Specifications
Material: BK7
Diameter: 12.7 mm
Focal Length: 25 mm
Edge Thickness, Te: 3.5 mm
Lens Type: Plano-Concave
Data Sheet
Inquire Price
Custom Precision Optical Lenses: Multi-Material, 3-500mm, Plano & Bi-Configurations, AR Coating
ARD-OPTICS
Add to watch list
Custom Precision Optical Lenses: Multi-Material, 3-500mm, Plano & Bi-Configurations, AR Coating
Compare
Unleash the power of optics with our Custom Precision Optical Lenses by ARD Optics, engineered to meet your specific needs. Crafted from a diverse range of materials including sapphire, BK7, fused silica, and more, our lenses offer unparalleled precision and performance. With diameters ranging from 3mm to 500mm and various ...

Specifications
Material: BK7, FS, UVFS, BaF2, MgF2
Diameter: 3 mm
Focal Length: Not Specified
Edge Thickness, Te: Not Specified
Lens Type: Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave
Data Sheet
Inquire Price
Lenses Doublets Triplets
Singapore Dynamic Optronics
Add to watch list
Lenses Doublets Triplets
Compare
Optics manufacturing with thin film coatings (AR, BBAR, Metallic Mirrors, Hot Mirrors and Filters). Able to bond/cement multiple elements into Doublets, Triplets, x-cubes, Beam-splitters, Trichroic (Phillip) prism assembly (RGB), TIR Air gap prisms, Porro-Abbe prism assemblies and etc.

Specifications
Material: BK7, FS, UVFS
Diameter: 1.8 mm
Focal Length: Not Specified
Edge Thickness, Te: Not Specified
Lens Type: Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave
Data Sheet
Inquire Price
200nm Ultra-Small Micro Lens for Precision Optical Applications
Photonchina
Add to watch list
200nm Ultra-Small Micro Lens for Precision Optical Applications
Compare
Under the condition of high refractive index, some components can achieve short focal length. Therefore, the micro lens becomes an ideal choice in the field of high precision applications. Because of the ultra-small size of this kind of lens (outer diameter 0.5mm-5mm, length: 1mm-20mm), micro lens or ultra-small lens often requires ...

Specifications
Material: BK7, FS, UVFS, CaF2, ZnSe, Si, Ge, H-K9L, BaF2, MgF2, H-ZF13
Diameter: 0.5 mm
Focal Length: 0.05 mm
Edge Thickness, Te: 0.3 mm
Lens Type: Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave
Data Sheet
Inquire Price
C-Lens for Fiber Optics: Collimator Isolator and Switch Applications
Photonchina
Add to watch list
C-Lens for Fiber Optics: Collimator Isolator and Switch Applications
Compare
C-Lens is expertly crafted for optimal performance in fiber optics applications, such as collimators, isolators, switches, collimator arrays, and laser assemblies. This specialized lens stands out from other gradient index lenses due to its exceptional qualities, including affordability, minimal insertion loss over extended working ...

Specifications
Material: BK7, FS, UVFS, CaF2, ZnSe, Si, Ge, H-K9L, BaF2, MgF2, H-ZF13
Diameter: 1 mm
Lens Type: Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave
Lens Material: SF11 or N-SF11
Transmission: >99%(900-1700nm)
Data Sheet
Inquire Price

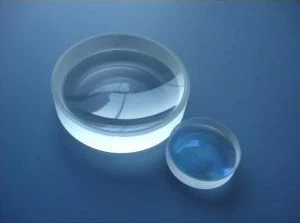

Plano-Concave Lens
Photonchina
Add to watch list
Plano-Concave Lens
Compare
The Plano-Concave Lens is an essential component in optical systems, known for its distinctive design where the lens is thicker at the edges and thinner at the center. This unique structure, combined with its flat surface on one side, makes it an ideal choice for applications requiring the expansion of light beams or the increase of ...

Specifications
Material: BK7, UVFS, CaF2
Lens Type: Plano-Concave
Material: BK7, UV FS, CaF2
Surface Flatness: λ/10@632.8nm
Surface Quality: 10/5
Data Sheet
Inquire Price

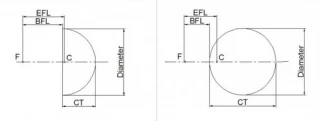

Optical Ball Lenses
Sherlan Optics
Add to watch list
Optical Ball Lenses
Compare
The Ball lenses always are manufactured from a single substrate of glass. It is able to focus or collimate light, depending upon the geometry of the input source. The Ball lenses are used for improving the coupling between optical fibers and the emitters or detectors. They are also used in endoscopy, bar code scanning, ball pre-forms ...

Specifications
Material: BK7
Diameter: 0.5 mm
Focal Length: 0.367 mm
Edge Thickness, Te: Not Specified
Lens Type: Bi-Convex
Data Sheet
Inquire Price
Optical Dome Glass
Sherlan Optics
Add to watch list
Optical Dome Glass
Compare
optical glass dome Description for glass dome lens  1. Raw material of optical glass dome: Pyrex, Optical glass. 2. Processing of optical glass dome: by Molding, Grinding, Polishing 3. Surface quality of optical glass dome: optical surface quality and well controlled tolerance   4. Inside quality of optical glass dome: ...

Specifications
Material: BK7
Diameter: 50 mm
Focal Length: 65 mm
Edge Thickness, Te: 2 mm
Lens Type: Bi-Concave
Data Sheet
Inquire Price
Plano Concave Lenses LNCV011
Tower Optical Corporation
Add to watch list
Plano Concave Lenses LNCV011
Compare
Tower Optical’s plano concave lenses have a negative focal length, diverge collimated incident light, and form only virtual images which are seen through the lens. They are often used to expand light beams or increase focal lengths in existing systems. They are widely used in telescopes, collimators, optical transceivers, ...

Specifications
Material: BK7
Diameter: 50.8 mm
Focal Length: -150 mm
Edge Thickness, Te: 8.3 mm
Lens Type: Plano-Concave
Data Sheet
Inquire Price
Double Concave Spherical Lens
Union Optic
Add to watch list
Double Concave Spherical Lens
Compare
Material BK7 or UV Fused Silica Dimension Tolerance +0/-0.2mm Thickness Tolerance ±0.2mm Design Wavelength 546.1nm Surface Quality 60/40 scratch and dig Flatness λ/4@632.8nm Centration <3 arc minutes Focal Length Tolerance ±2% Clear Aperture >90% Chamfer Protective <0.5mmx45deg

Specifications
Material: BK7, FS, UVFS, H-K9L
Diameter: 25.4 mm
Focal Length: -100 mm
Edge Thickness, Te: 2 mm
Lens Type: Bi-Concave
Data Sheet
Inquire Price
Double Convex Spherical Lens
Union Optic
Add to watch list
Double Convex Spherical Lens
Compare
Dimension Tolerance +0/-0.2mm Thickness Tolerance ±0.2mm Design Wavelength 546.1nm Surface Quality 60/40 scratch and dig Flatness λ/4@632.8nm Centration Focal Length Tolerance ±2% Clear Aperture >90% Chamfer Protective

Specifications
Material: BK7, FS, UVFS, H-K9L
Diameter: 25.4 mm
Focal Length: 100 mm
Edge Thickness, Te: 2 mm
Lens Type: Bi-Convex
Data Sheet
Inquire Price
Plano Concave Spherical Lens
Union Optic
Add to watch list
Plano Concave Spherical Lens
Compare
Dimension Tolerance +0/-0.2mm Thickness Tolerance ±0.2mm Design Wavelength 546.1nm Surface Quality 60/40 scratch and dig Flatness λ/4@632.8nm Centration Focal Length Tolerance ±2% Clear Aperture >90% Chamfer Protective

Specifications
Material: BK7, FS, UVFS, H-K9L
Diameter: 25.4 mm
Focal Length: -100 mm
Edge Thickness, Te: 2 mm
Lens Type: Plano-Concave
Data Sheet
Inquire Price
Plano Convex Spherical Lens
Union Optic
Add to watch list
Plano Convex Spherical Lens
Compare
Dimension Tolerance +0/-0.2mm Thickness Tolerance ±0.2mm Design Wavelength 546.1nm Surface Quality 60/40 scratch and dig Flatness λ/4@632.8nm Centration Focal Length Tolerance ±2% Clear Aperture >90% Chamfer Protective

Specifications
Material: BK7, FS, UVFS, H-K9L
Diameter: 25.4 mm
Focal Length: 100 mm
Edge Thickness, Te: 2 mm
Lens Type: Plano-Convex
Data Sheet
Inquire Price
Infrared Lens
Union Optic
Add to watch list
Infrared Lens
Compare
Union Optic offers a wide variety of infrared spherical lenses. We can offer plano-convex, plano-concave, double-convex, double-concave and meniscus types. The available material includes CaF2, BaF2, MgF2, Si, Ge, and ZnSe, which covering wavelengths from the UV to 19µm. And we can also offer different AR coatings covering 1.8-3µm, ...

Specifications
Material: CaF2, ZnSe, Si, Ge, BaF2
Diameter: 25.4 mm
Focal Length: 100 mm
Edge Thickness, Te: 2 mm
Lens Type: Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave
Data Sheet
Inquire Price
