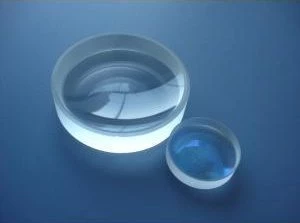

Plano-Concave Lens
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Description
The Plano-Concave Lens is an essential component in optical systems, known for its distinctive design where the lens is thicker at the edges and thinner at the center. This unique structure, combined with its flat surface on one side, makes it an ideal choice for applications requiring the expansion of light beams or the increase of focal lengths. The lens is particularly effective in systems utilizing high peak power pulsed lasers, as it can efficiently manage and manipulate light paths.
When a beam of light encounters the concave surface of this lens, it is directed to a focal point outside the instrument, allowing for precise control over the beam's trajectory. This characteristic is crucial for various scientific and industrial applications where beam expansion and focal length adjustments are necessary for optimal performance.
Constructed from high-quality materials such as BK7, UV FS, and CaF2, the Plano-Concave Lens ensures exceptional durability and performance. Its surface flatness, measured at λ/10@632.8nm, and superior surface quality of 10/5, guarantee minimal aberrations and high precision in optical tasks. Furthermore, the lens is crafted with tight tolerances, including a diameter tolerance of +0.0/-0.05mm and a thickness tolerance of ±0.05mm, ensuring consistent and reliable results in demanding optical systems.
With a clear aperture exceeding 90% of its diameter, the Plano-Concave Lens maximizes light throughput, making it a versatile component in various optical configurations. The protective chamfering further enhances its durability, while the option for custom coatings allows for tailored solutions to meet specific customer requirements. This lens is an indispensable tool for professionals seeking precision and efficiency in their optical applications.
Plano-Concave Lens
Specifications |
|
|---|---|
| Material: | BK7, UVFS, CaF2 |
| Lens Type: | Plano-Concave |
| Material: | BK7, UV FS, CaF2 |
| Surface Flatness: | λ/10@632.8nm |
| Surface Quality: | 10/5 |
| Centration Error: | ≤3 arc min. |
| Diameter Tolerance: | +0.0/-0.05mm |
| Thickness Tolerance: | ±0.05mm |
| Focal Length Tolerance: | ±2% |
| Clear Aperture: | >90% of diameter |
| Chamfer: | Protective |
| Coating: | Upon customer request |
Features
- Versatile Optical Design: The plano-concave lens features a flat surface on one side and a concave surface on the other, making it ideal for expanding light beams and increasing focal lengths in optical systems.
- High-Quality Materials: Available in BK7, UV Fused Silica (FS), and Calcium Fluoride (CaF2) for a range of applications, ensuring optimal performance and durability.
- Precision Surface Flatness: Achieves a surface flatness of λ/10 at 632.8 nm, ensuring minimal optical distortion.
- Superior Surface Quality: Boasts a surface quality of 10/5, providing high clarity and minimal imperfections.
- Accurate Centration: Maintains a centration error of ≤3 arc minutes, ensuring precise alignment in optical setups.
- Tight Diameter Tolerance: Features a diameter tolerance of +0.0/-0.05 mm, ensuring consistent sizing for integration into systems.
- Reliable Thickness Tolerance: Offers a thickness tolerance of ±0.05 mm for consistent performance across lenses.
- Consistent Focal Length: Maintains a focal length tolerance of ±2%, providing reliable performance in beam expansion applications.
- Large Clear Aperture: Provides a clear aperture greater than 90% of the diameter, maximizing light transmission.
- Protective Chamfer: Includes a protective chamfer to enhance durability and ease of handling.
- Custom Coatings Available: Coating options are available upon customer request to suit specific application needs.
Applications
- Beam Expansion: Plano-concave lenses are used to expand light beams, making them ideal for applications requiring increased beam diameters.
- Focal Length Adjustment: These lenses increase the focal lengths in optical systems, providing flexibility in optical design.
- High Peak Power Pulsed Lasers: Often employed for beam expansion in systems utilizing high peak power pulsed lasers, ensuring precise control over laser beam properties.
- Light Focusing: A beam incident on the concave surface of the lens will be focused to a point outside the instrument, useful in various optical applications.
Frequently Asked Questions
Plano-Concave Lens is used to expand light beams or to increase focal lengths in optical systems.
The material used to make Plano-Concave Lens is BK7, UV FS, CaF2.
The surface quality of Plano-Concave Lens is 10/5.
The diameter tolerance of Plano-Concave Lens is +0.0/-0.05mm.
Yes, Plano-Concave Lens can be coated with a protective coating upon customer request.
