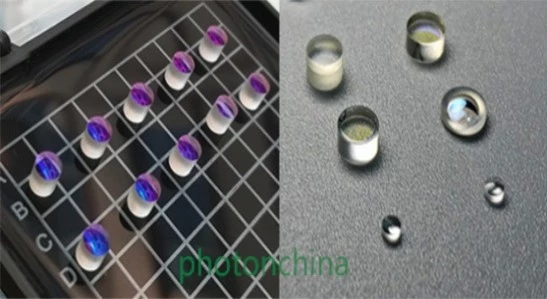

200nm Ultra-Small Micro Lens for Precision Optical Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Description
Under the condition of high refractive index, some components can achieve short focal length. Therefore, the micro lens becomes an ideal choice in the field of high precision applications.
Because of the ultra-small size of this kind of lens (outer diameter 0.5mm-5mm, length: 1mm-20mm), micro lens or ultra-small lens often requires special processing technology, unique production know-how and special optical fixture, etc.
Photonchina provides various sizes of micro lens with an array of applications including active devices, wavelength division multiplexer ( WDM) and fiber lasers (see C-lens, G-lens) in fiber communications, endoscopy for medical and industrial use, capsule endoscope, etc. Its new application fields are still expanding.
A variety of optical glass or other materials, such as N-SF11, H-LAF76, Fused Silica and so on are available for customer’s design. H-LaF53, for instance, has often been used in endoscope lens or capsule lens production. The outer diameter of micro lens covers 0.5mm to 5.0mm with any radius of curvature that can be made. We have a wide range of lenses in shape: convex, concave, biconvex, meniscus etc.
200nm Ultra-Small Micro Lens for Precision Optical Applications
Specifications |
|
|---|---|
| Material: | BK7, FS, UVFS, CaF2, ZnSe, Si, Ge, H-K9L, BaF2, MgF2, H-ZF13 |
| Diameter: | 0.5 mm |
| Focal Length: | 0.05 mm |
| Edge Thickness, Te: | 0.3 mm |
| Lens Type: | Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave |
| Material: | N-SF11, H-LaF53, H-LaF76, Fused Silicon |
| Radius Of Curvature: | R0.25～R∞ mm |
| Diameter: | Φ0.5 ～Φ5 mm |
| Diameter Tolerance: | ±0.005 ～±0.05 mm |
| Length: | L1.0 ～L20 mm |
| Length Tolerance: | ±0.02～±0.06 mm |
| Thickness Tolerance: | ±0.01 ～±0.1 mm |
| Surface Quality: | 10/5～80/50 |
| Flatness: | λ/20～λ/4 |
| Off Centering: | 1’～10′ |
Features
- Ultra-Small Micro Lens: Ideal for high precision applications with high refractive index, achieving short focal lengths.
- Size Range: Outer diameter from 0.5mm to 5mm and length from 1mm to 20mm, suitable for various applications.
- Specialized Manufacturing: Requires unique processing technology and optical fixtures for production.
- Wide Range of Applications: Used in active devices, wavelength division multiplexers (WDM), fiber lasers, medical endoscopy, industrial use, and capsule endoscopes.
- Diverse Material Options: Available in optical glass such as N-SF11, H-LAF76, and Fused Silica, tailored for customer designs.
- Customizable Lens Shapes: Offers convex, concave, biconvex, and meniscus shapes to meet specific needs.
- Rod-Shaped Glued Lens: Features excellent eccentricity and clear aperture index, enhanced by special gluing and edging techniques.
- High-Standard Thin Film Coating: Ensures durable performance and meets strict testing requirements.
- Global Customer Base: Trusted partner for micro lens products worldwide, committed to quality and customer satisfaction.
Applications
- Active Devices: Utilized in various active devices for precise optical performance.
- Wavelength Division Multiplexer (WDM): Essential for fiber communications, enhancing data transmission efficiency.
- Fiber Lasers: Key component in fiber lasers, improving beam quality and control.
- Endoscopy: Used in medical and industrial endoscopes for high-resolution imaging.
- Capsule Endoscope: Integral in capsule endoscopes, providing clear internal imaging for medical diagnostics.
- Optical Communications: Supports various optical communication systems with high precision lenses.
- Precision Surveying Instruments: Enhances accuracy and performance in surveying devices.
Frequently Asked Questions
Yes, Photonchina provides optical coating upon request for the micro lens.
The micro lens has an array of applications, including active devices, wavelength division multiplexer (WDM) and fiber lasers in fiber communications, endoscopy for medical and industrial use, capsule endoscope, and more.
The outer diameter of the micro lens ranges from 0.5mm to 5.0mm, and the length ranges from 1mm to 20mm.
The tolerance range for the micro lens is from ±0.005mm to ±0.1mm, depending on the dimension.
Photonchina provides various optical glass or other materials, such as N-SF11, H-LAF76, Fused Silica, and more for customer's design.
