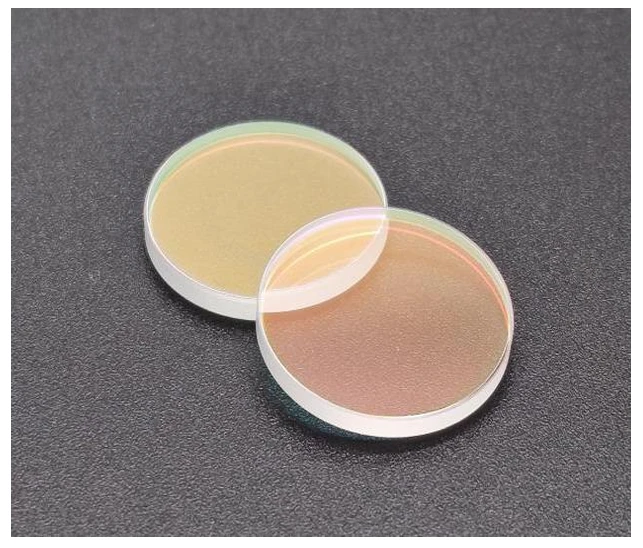

Customizable Spherical Lenses

Specifications

Material: BK7, FS, UVFS, CaF2, MgF2
Diameter: 6 mm
Edge Thickness, Te: 2 mm
Lens Type: Plano-Convex, Plano-Concave, Bi-Convex
Diameter: 3-200 mm
Clear Aperture: >90%
Flatness: L/10@633nm
Surface Quality: 10/5
Centration: <1’
Document icon Download Data Sheet Download icon

Features


  • Wide Material Range: Available in materials suitable for visible to infrared wavelengths.

  • Customizable Design: Shape and size can be tailored to specific requirements.

  • Diameter Options: Ranges from 3mm to 200mm to suit various applications.

  • High Clear Aperture: Greater than 90% for optimal performance.

  • Precision Flatness: L/10 @ 633nm ensuring high accuracy.

  • Superior Surface Quality: 10/5 surface quality for minimal imperfections.

  • Excellent Centration: Less than 1’ for precise alignment.

  • High Damage Threshold: Designed to withstand high power applications.

  • Flexible Coating Options: Standard or customized coatings available to meet customer needs.


CRYSTECH specializes in manufacturing high-precision spherical lenses for solid-state laser systems. With over 20 years of experience in lens manufacturing, design, and coating, we offer lenses made from BK7, fused silica, sapphire, CaF2, ZnSe (ZnS), and other glass materials. Our expert coating team and advanced machines ensure top-quality products.


Standard Product Types:



  • Plano-convex/Plano-concave: Available in sizes φ6X2mm to φ25.4X3.2mm with various AR coatings such as AR1064, AR532, AR1064&532, and more.

  • Double-convex: Sizes range from φ12.7X5mm to φ25X6.2mm with coatings like AR532, AR808, and AR1064&532.

  • Meniscus: Offered in sizes φ15X3mm to φ28X5mm with coatings including AR532, AR1927, and AR1064&532.

Applications


  • Laser optics

  • Imaging

  • Spectroscopy

  • Metrology
