Window WB11-012
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
At Tower Optical, we understand that quality is not just a feature—it's a necessity. Our custom circular and square windows are designed to isolate different physical environments while allowing light to pass through seamlessly. When selecting a window, it's crucial to consider the properties of various optical materials, including transmission, wavelength range, and environmental resistance. We offer a broad selection of materials and anti-reflective coatings to meet diverse needs and specifications.
Our windows are crafted from high-quality materials such as BK7, UV Grade Fused Silica, and Sapphire, with additional materials available upon request. We pride ourselves on offering three distinct quality standards to suit different applications. Whether you require standard, high, or laser-grade windows, our products are manufactured to precise tolerances and specifications, ensuring optimal performance and reliability.
Each window is meticulously crafted to meet stringent dimensional tolerances and surface quality standards. Our commitment to excellence is evident in every product we manufacture, making Tower Optical a trusted partner for all your optical window needs. For custom solutions, we invite you to send us your drawings or specifications, and we will provide a tailored quotation to meet your unique requirements.

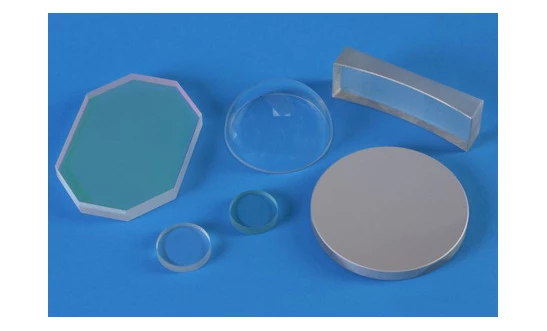

Window WB11-012
Specifications |
|
|---|---|
| Substrate Material: | N-BK7, UV Grade Fused Silica, Sapphire |
| Antireflection Coating: | Uncoated |
| Diameter: | 12.5 mm |
| Surface Quality: | 40-20 scratch-dig |
| Surface Flatness: | lambda/2 |
| Thickness: | 2 mm |
| Thickness Tolerance: | ±0.2mm |
Features
- Custom Circular and Square Windows: Designed to isolate different physical environments while allowing light to pass through.
- Wide Range of Materials: Available in BK7, UV Grade Fused Silica, and Sapphire, with other materials available on a custom basis.
- Anti-Reflective Coatings: A variety of coatings can be deposited on the windows to enhance performance.
- Three Quality Standards: Choose from Standard Grade, High Grade, and Laser Grade for different applications.
- Dimensional Tolerance: Precision manufacturing with tolerances of +0.0/-0.1mm or ±0.1mm.
- Flatness (TWF): Options include λ/2, λ/10, and λ/4 per 25.4mm at 632.8nm, ensuring high optical performance.
- Surface Quality (Scratch/Dig): Available in 40/20 or 20/10, depending on the grade.
- Thickness Tolerance: Ranges from ±0.2mm to ±0.1mm for precise thickness control.
- Parallelism: High precision with options of <1 arc minute to <10 arc seconds.
- Bevel: Standard bevel of 0.2mm x 45° for most models.
- Custom Solutions: Custom versions available upon request; send your drawings or specifications for a quotation.
Applications
- Optical Laboratories: Ideal for controlled light transmission experiments.
- Laser Systems: Suitable for precision and high-power laser applications.
- Industrial Equipment: Provides optical isolation and protection in machinery and instruments.
- Scientific Instrumentation: Ensures reliable performance under varying environmental conditions.
- Custom Optical Solutions: Fabricated to meet specific project requirements.
Frequently Asked Questions
Tower Optical manufactures windows from BK7, UV Grade Fused Silica and Sapphire. Other materials are available on a custom basis.
Tower offers a variety of anti-reflecting coatings that can be deposited on the windows.
Tower Optical offers three different quality standards: Standard Grade, High Grade, and Laser Grade.
The dimensional tolerance for the windows varies depending on the material and quality grade, but ranges from +0.0/-0.1mm to ±0.1mm.
The scratch/dig specification for the windows is 40/20.
