Window WB11-005
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

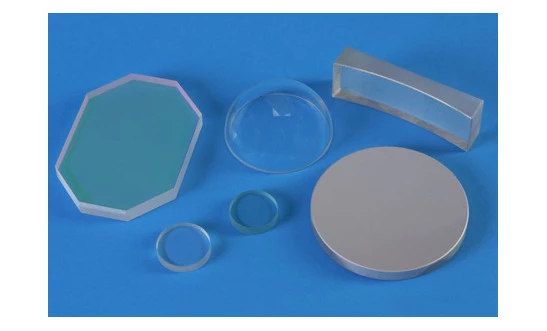

Tower Optical is proud to offer a diverse selection of custom circular and square windows designed to meet the unique needs of various industries. These optical windows serve the crucial function of isolating different physical environments while permitting light to pass through. When selecting a window, it is essential to consider the properties of the optical materials, including transmission, wavelength range, and environmental resistance. At Tower Optical, we provide an extensive range of materials and anti-reflective coatings to enhance the performance of our windows. Our windows are expertly manufactured using high-quality materials such as BK7, UV Grade Fused Silica, and Sapphire.
We also accommodate custom material requests to ensure that our products meet your specific requirements. To cater to different application needs, we offer three distinct quality standards: Standard Grade, High Grade, and Laser Grade. Each grade is crafted with precision to deliver exceptional optical performance.
At Tower Optical, quality is not just a promise; it is a standard. Our optical windows are crafted with meticulous attention to detail, ensuring dimensional tolerance and surface quality that meet the highest industry standards. The flatness and parallelism of our windows are precisely controlled to provide optimal performance in demanding applications.
Whether you require windows for scientific research, industrial use, or specialized applications, our products are designed to deliver reliability and excellence. We understand that every project is unique, which is why we offer custom solutions tailored to your specifications. Simply provide us with your drawings or specifications, and our team will work closely with you to create a product that meets your exact needs. At Tower Optical, we are committed to providing optical solutions that are as unique as your requirements.
Window WB11-005
Specifications |
|
|---|---|
| Substrate Material: | N-BK7, UV Grade Fused Silica, Sapphire |
| Antireflection Coating: | Uncoated |
| Diameter: | 5 mm |
| Surface Quality: | 40-20 scratch-dig |
| Surface Flatness: | lambda/2 |
| Thickness: | 2 mm |
| Parallelism: | < 1 arc minute |
Features
- Custom Circular and Square Windows: Designed to isolate different physical environments while allowing light to pass through.
- Material Options: Available in BK7, UV Grade Fused Silica, and Sapphire. Custom materials available upon request.
- Anti-Reflective Coatings: A variety of anti-reflective coatings can be applied to enhance performance.
- Quality Standards: Choose from Standard Grade, High Grade, and Laser Grade for precision applications.
- Dimensional Tolerance: Precision manufacturing with tolerances of +0.0/-0.1mm or ±0.1mm.
- Flatness (TWF): Options include λ/2, λ/10, and λ/4 per 25.4mm at 632.8nm for high precision.
- Surface Quality (Scratch/Dig): Available in 40/20 and 20/10 for superior optical clarity.
- Thickness Tolerance: Options of ±0.2mm or ±0.1mm for exact specifications.
- Parallelism: Precision parallelism options of < 1 arc minute, < 10 arc seconds, and < 30 arc seconds.
- Bevel: Standard bevel of 0.2mm x 45° for smooth edges.
- Custom Solutions: Custom versions available; send your drawings or specifications for a quotation.
Applications
- Optical Laboratories: Perfect for experiments requiring controlled light transmission.
- Laser Systems: Suitable for precision and high-power laser applications.
- Industrial Equipment: Provides optical isolation and protection in machinery and instruments.
- Scientific Instrumentation: Reliable performance across varying environmental conditions.
- Custom Optical Solutions: Fabricated according to specific drawings or project specifications.
Frequently Asked Questions
Tower Optical manufactures windows from BK7, UV Grade Fused Silica, and Sapphire. Other materials are available on a custom basis.
Tower offers a variety of anti-reflecting coatings that can be deposited on the windows.
The selection of a window should consider the properties of the different optical materials, transmission, wavelength range, and resistance to the environment.
Tower Optical offers three different quality standards: Standard Grade, High Grade, and Laser Grade.
The dimensional tolerance for the windows varies depending on the material and quality grade, ranging from +0.0/-0.1mm to ±0.1mm.
