UV Grade Fused Silica Window - WF22-038
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

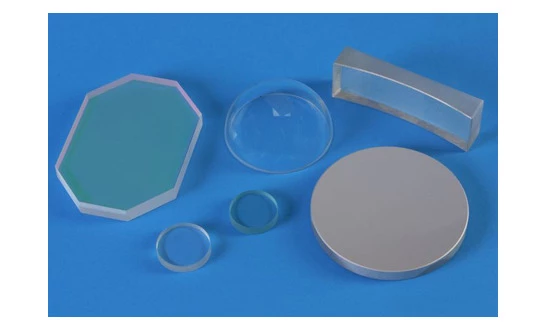

At Tower Optical, we understand that quality is not just a feature—it's a necessity. Our custom circular and square windows are meticulously crafted to isolate different physical environments while allowing light to pass through seamlessly. When selecting a window, it's crucial to consider the properties of various optical materials, including transmission, wavelength range, and environmental resistance. We offer a diverse selection of materials and a variety of anti-reflective coatings to meet your specific needs.
Our windows are manufactured from high-quality materials such as BK7, UV Grade Fused Silica, and Sapphire. Each material is chosen for its unique properties and suitability for different applications. For those requiring specialized solutions, we also provide custom materials upon request. Our commitment to quality is reflected in the three distinct quality standards we offer, ensuring that you receive the best product for your requirements.
Tower Optical is dedicated to providing precision and excellence in every product. Our windows are crafted with attention to detail, featuring dimensional tolerances and surface quality that meet the highest industry standards. Whether you need standard, high, or laser-grade windows, our products are designed to deliver exceptional performance and reliability. For more information or to discuss custom solutions, please contact our factory directly.
UV Grade Fused Silica Window - WF22-038
Specifications |
|
|---|---|
| Substrate Material: | UV Grade Fused Silica |
| Antireflection Coating: | Uncoated |
| Diameter: | 38 mm |
| Surface Quality: | 20-10 scratch-dig |
| Surface Flatness: | lambda/10 |
| Thickness: | 10 mm |
| Thickness Tolerance: | ±0.2mm |
| Parallelism: | < 10 arc seconds |
Features
- Custom Circular and Square Windows: Designed to isolate different physical environments while allowing light to pass through, available in various shapes and sizes.
- Wide Range of Materials: Manufactured from BK7, UV Grade Fused Silica, and Sapphire, with other materials available on a custom basis.
- Anti-Reflective Coatings: A variety of anti-reflective coatings can be applied to enhance performance and reduce glare.
- Three Quality Standards: Choose from Standard Grade, High Grade, and Laser Grade to meet specific application needs.
- Custom Solutions Available: Send your drawings or specifications for a tailored quotation.
Applications
- Laser Systems: High-grade and laser-grade windows ensure minimal wavefront distortion in high-power setups.
- Spectroscopy & Imaging: UV Fused Silica windows ideal for UV transmission and precision measurements.
- Defense & Aerospace: Sapphire windows provide superior durability in demanding environments.
- Optical Instrumentation: Reliable for isolating environments while maintaining optical clarity.
- Industrial & Research Applications: Suitable for coatings, testing systems, and high-precision optical assemblies.
Frequently Asked Questions
The TOWER OPTICAL UV Grade Fused Silica Window is used to isolate different physical environments while allowing light to pass.
The TOWER OPTICAL UV Grade Fused Silica Window is manufactured from BK7, UV Grade Fused Silica and Sapphire. Other materials are available on a custom basis.
TOWER OPTICAL offers three different quality standards for their windows - Standard Grade, High Grade, and Laser Grade.
The dimensional tolerance of the TOWER OPTICAL UV Grade Fused Silica Window is +0.0/-0.1mm.
The surface quality of the TOWER OPTICAL UV Grade Fused Silica Window is scratch/dig 40/20 per MIL-PRF-13830B.
