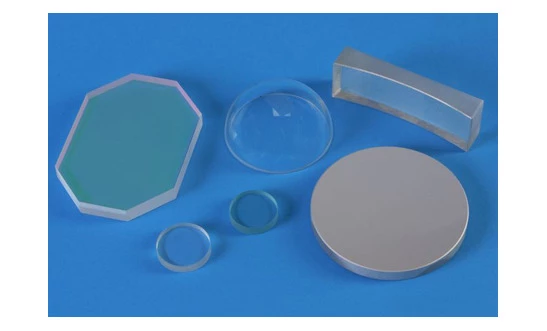

UV Grade Fused Silica Window - WF22-025

Specifications

Substrate Material: UV Grade Fused Silica
Antireflection Coating: Uncoated
Diameter: 25 mm
Surface Quality: 20-10 scratch-dig
Surface Flatness: lambda/10
Thickness: 6 mm
Thickness Tolerance: ±0.2mm
Parallelism: < 10 arc seconds
Document icon Download Data Sheet Download icon

Features


  • Custom Circular and Square Windows: Designed to isolate different physical environments while allowing light to pass through.

  • Wide Range of Materials: Manufactured from BK7, UV Grade Fused Silica, and Sapphire. Other materials available on a custom basis.

  • Anti-Reflecting Coatings: A variety of coatings can be deposited on the windows to enhance performance.

  • Three Quality Standards: Choose from Standard Grade, High Grade, and Laser Grade to meet your specific needs.

  • Dimensional Tolerance: Precision manufacturing with tolerances of +0.0/-0.1mm or ±0.1mm.

  • Flatness (TWF): Options include λ/2 @ 632.8nm, λ/10 @ 632.8nm, and λ/4 per 25.4mm for superior optical performance.

  • Surface Quality (Scratch/Dig): Available in 40/20, 20/10, and 40/20 standards for different applications.

  • Thickness Tolerance: Precision thickness control with tolerances of ±0.2mm or ±0.1mm.

  • Parallelism: High precision with options of < 1 arc minute, < 10 arc seconds, and < 30 arc seconds.

  • Bevel: Standard bevel of 0.2mm x 45° for most models.

  • Custom Solutions: Custom versions available upon request. Send your drawings or specifications for a quotation.

Applications


  • Optical Instrumentation: Protects sensitive optics while transmitting light with minimal distortion.

  • Laser Systems: Ideal for high-power laser applications requiring low scattering and high flatness.

  • Imaging & Sensing: Enhances accuracy in cameras, detectors, and measurement systems.

  • Research & Development: Supports advanced optical experiments with customizable specifications.

  • Industrial Optics: Durable design suitable for harsh or variable environments.
