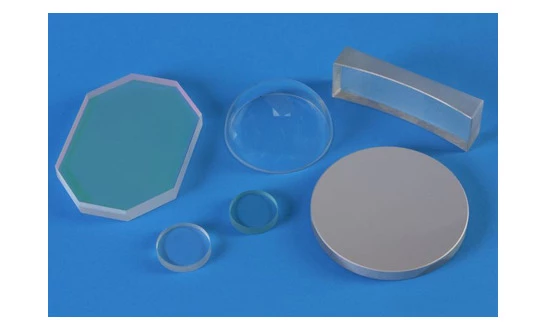

UV Grade Fused Silica Window - WF22-010
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Tower Optical is proud to offer a diverse selection of custom circular and square windows designed to meet the unique needs of various industries. These optical windows are essential for isolating different physical environments while allowing light to pass through seamlessly. When selecting a window, it is crucial to consider the properties of the optical materials, including transmission, wavelength range, and environmental resistance. At Tower Optical, we provide a wide array of materials and anti-reflective coatings to enhance the performance of our windows.
Our windows are meticulously crafted from high-quality materials such as BK7, UV Grade Fused Silica, and Sapphire. Each material is chosen for its superior optical properties and durability, ensuring that our windows perform optimally in demanding conditions. For those with specific requirements, we also offer custom materials upon request. Our commitment to quality is reflected in the three distinct quality standards we provide: Standard Grade, High Grade, and Laser Grade. Each standard is tailored to meet the precise needs of our clients, ensuring exceptional performance and reliability.
At Tower Optical, precision is paramount. Our windows are manufactured with stringent dimensional tolerances and surface quality standards to guarantee optimal performance. We offer a range of specifications, including flatness, scratch/dig surface quality, thickness tolerance, and parallelism, to meet the diverse needs of our customers. Whether you require windows for standard applications or high-precision laser environments, our products are designed to deliver unparalleled accuracy and clarity.
UV Grade Fused Silica Window - WF22-010
Specifications |
|
|---|---|
| Substrate Material: | UV Grade Fused Silica |
| Antireflection Coating: | Uncoated |
| Diameter: | 10 mm |
| Surface Quality: | 20-10 scratch-dig, 40-20 scratch-dig |
| Surface Flatness: | lambda/10, lambda/4, lambda/2 |
| Thickness: | 2 mm |
| Parallelism: | < 10 arc seconds |
Features
- Custom Circular and Square Windows: Designed to isolate different physical environments while allowing light to pass through.
- Wide Range of Materials: Available in BK7, UV Grade Fused Silica, and Sapphire, with other materials available on a custom basis.
- Anti-Reflective Coatings: Various coatings can be applied to enhance optical performance.
- Three Quality Standards: Choose from Standard Grade, High Grade, and Laser Grade for different applications.
- Dimensional Tolerance: Precision manufacturing with tolerances of +0.0/-0.1mm or ±0.1mm.
- Surface Flatness: Options include λ/2, λ/10, and λ/4 per 25.4mm at 632.8nm.
- Surface Quality: Scratch/Dig specifications of 40/20 or 20/10 for superior clarity.
- Thickness Tolerance: Accurate thickness control with tolerances of ±0.2mm or ±0.1mm.
- Parallelism: High precision with parallelism of < 1 arc minute to < 30 arc seconds.
- Bevel Options: Standard bevel of 0.2mm x 45° for edge protection.
- Custom Solutions: Custom versions available; send your drawings or specifications for a quotation.
Applications
- Optical Systems: Provide environmental isolation with high light transmission.
- Laser Applications: Laser-grade windows ensure minimal distortion and high optical clarity.
- Spectroscopy and Imaging: Suitable for UV, visible, and IR applications requiring precision optics.
- Industrial and Scientific Instruments: Rugged and durable for laboratory and field use.
- Custom Optical Assemblies: Designed for unique system requirements in research and prototyping.
Frequently Asked Questions
The TOWER OPTICAL UV Grade Fused Silica Window is a window that is used to isolate different physical environments while allowing light to pass.
The TOWER OPTICAL UV Grade Fused Silica Window is manufactured from BK7, UV Grade Fused Silica, and Sapphire. Other materials are available on a custom basis.
TOWER OPTICAL offers three different quality standards for their windows: Standard Grade, High Grade, and Laser Grade.
The dimensional tolerance of the TOWER OPTICAL UV Grade Fused Silica Window is +0.0/-0.1 mm.
The surface quality of the TOWER OPTICAL UV Grade Fused Silica Window is scratch/dig 40/20.
