Cube Beamsplitters

Meadowlark Optics ICE Cube™ Wiregrid Polarizing Beamsplitting Cube

Meadowlark Optics ICE Cube™ Wiregrid Polarizing Beamsplitting Cube

Meadowlark Optics is now the exclusive provider of the ICE Cube™ formerly offered by Moxtek. This polarizing beam splitter (PBS) cube is optimized for use over a wide range of acceptance angles while ...

Sold by: Meadowlark Optics Inc Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 400 – 700 nm
Max Beam Deviation: 5 arcmin
Size (Linear Dimension): 25.4 mm
Sizes Available: 5x5mm - 3x3in

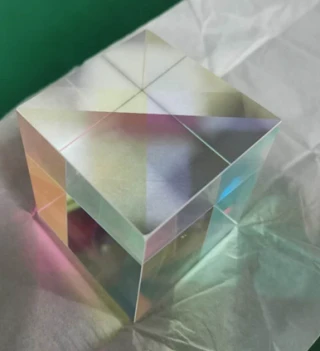

X-Cube Beamsplitter

X-Cube Beamsplitter

The X-Cube Beamsplitter is a high-performance optical component designed for the accurate splitting and combining of light beams in various applications, including laser systems, imaging devices, and scientific ...

Sold by: Sinoptix Ships from: Belgium
Specifications
Material: N-BK7
Wavelength Range: 350 – 2000 nm
Max Beam Deviation: 1 arcmin
Size (Linear Dimension): 4 mm
Dimensions: Custom
Custom Chromatic Beamsplitters  for Precision Optical Applications

Custom Chromatic Beamsplitters for Precision Optical Applications

Custom Chromatic Beamsplitters (CBS) are essential components in optical systems designed for precision light management. These beamsplitters are ideal for applications like spectrometry, sensors, and microscopy, ...

Sold by: Sinoptix Ships from: Belgium
Specifications
Material: N-BK7, H-K9L
Wavelength Range: 200 – 1800 nm
Max Beam Deviation: 2 arcmin
Size (Linear Dimension): 3 mm
Shape: Cube
Non-Polarization Beamsplitter Cube

Non-Polarization Beamsplitter Cube

Beamsplitter cube is a prism cemented by two right angle prisms. Compare with beamsplitter plate, beamsplitter cube has the advantages: Identical path lengths for both the reflected and the transmitted beams The ...

Sold by: MOK Optics Co LTD Ships from: China
Specifications
Material: N-BK7, UV Fused Silica, H-K9L, SF5, Fused Silica
Wavelength Range: 400 – 1100 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 5 mm
Surface Quality: 40-20
C T Optics 25.4mm Beamsplitter Cube: >99% Reflectivity, >95% Transmission, High Extinction Ratio >1000:1

C T Optics 25.4mm Beamsplitter Cube: >99% Reflectivity, >95% Transmission, High Extinction Ratio >1000:1

Beamsplitters are used to split or combine beams of light. Plates are used for most laser applications as they exhibit low absorption. Cubes are a convenient, protected form for low power applications. The ...

Sold by: Fuzhou HCT Optics Co.,LTD Ships from: China
Specifications
Material: H-K9L
Wavelength Range: 450 – 1650 nm
Max Beam Deviation: 2 arcmin
Size (Linear Dimension): 8 mm
Flatness: λ/4
Cube Polarizing Beamsplitters 430-1105-M2Ps

Cube Polarizing Beamsplitters 430-1105-M2Ps

Cube Polarizing Beamsplitters are designed for popular laser wavelengths and utilize a polarizing film coated on the internal face of a cube beamsplitter. These beamsplitters make use of thin film polarizers to ...

Sold by: Altos Photonics, Inc. Ships from: United States
Specifications
Material: UV Fused Silica
Wavelength Range: 308 – 308 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 10 mm
Surface Flatness @ 633nm: lambda/4
Bojen Optics Polarization Beamsplitters

Polarizing Beam Splitting Cubes

Polarization Beamsplitters are essential optical components designed to separate light beams based on their polarization state. These beamsplitters are meticulously crafted to ensure optimal performance in a ...

Sold by: BoJen Optics, Inc. Ships from: China
Specifications
Material: N-BK7
Wavelength Range: 420 – 680 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 10 mm
Dimension: 10mm, 12.7mm, 25.4mm or customer design

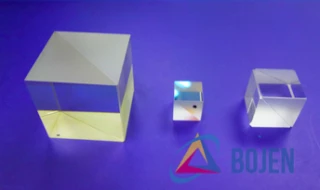

Standard  Cube  Beamsplitters

Standard  Cube  Beamsplitters

Standard Cube Beamsplitters are precision optical components designed to split a beam of light into two separate paths. These beamsplitters are meticulously crafted by cementing two right angle prisms together, ...

Sold by: BoJen Optics, Inc. Ships from: China
Specifications
Material: N-BK7
Wavelength Range: 400 – 700 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 10 mm
Dimension: 10mm, 12.7mm, 25.4mm or customer design

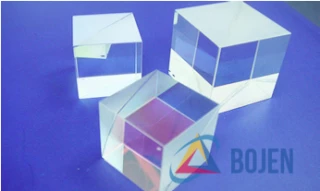

Broadband Non-Polarizing Cube Beamsplitters

Broadband Non-Polarizing Cube Beamsplitters

Broadband Non-Polarizing Cube Beamsplitters are precision optical components designed to efficiently manage light across a wide range of wavelengths. These beamsplitters are crafted from high-quality N-BK7 ...

Sold by: BoJen Optics, Inc. Ships from: China
Specifications
Material: N-BK7
Wavelength Range: 400 – 700 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 10 mm
Dimension: 10mm, 12.7mm, 25.4mm or customer design
Union Optic Beamsplitter Cube

Union Optic Beamsplitter Cube

Material BK7 Grade Aoptical glass Dimension Tolerance ±0.2mm Clear Aperture >90% Flatness λ/4@632.8nm Beam Deviation <3 arc minutes Surface Quality 60/40 Coating Partial reflectance on hypotenuse ...

Sold by: Union Optic Ships from: China
Specifications
Material: N-BK7, Fused Silica
Wavelength Range: 450 – 1200 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 20 mm
Non-Polarizing ZnSe Plate Beamsplitters for Monochromatic Beam Division

Non-Polarizing ZnSe Plate Beamsplitters for Monochromatic Beam Division

The Non-Polarizing Plate Beamsplitters from Rocky Mountain Instrument Co. are expertly designed to divide an incident, monochromatic beam into both reflected and transmitted components, adhering to a specified ...

Sold by: Rocky Mountain Instrument Co. Ships from: United States
Specifications
Material: ZnSe
Wavelength Range: 9000 – 11000 nm
Max Beam Deviation: 3 arcmin
Surface Figure: Lambda/40 @ 10.6 μm
Surface Quality: 40-20 Scratch-Dig
Non-Polarizing BK7 UVFS, and ZnSe Plate Beamsplitters for Monochromatic Beam Applications

Non-Polarizing BK7 UVFS, and ZnSe Plate Beamsplitters for Monochromatic Beam Applications

Non-Polarizing Plate Beamsplitters are essential optical components designed to divide an incident monochromatic beam into reflected and transmitted components with a specified intensity ratio. These beamsplitters ...

Sold by: Rocky Mountain Instrument Co. Ships from: United States
Specifications
Material: N-BK7, UV Fused Silica
Wavelength Range: 300 – 2000 nm
Max Beam Deviation: 3 arcmin
Surface Quality: 10-5 Scratch-Dig
Surface Figure: Lambda/20 @ 632 nm

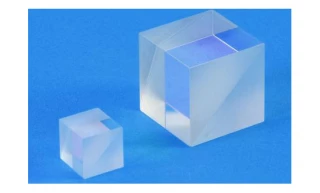

Beamsplitter Cube - BSPB1-20 450-680nm

Beamsplitter Cube - BSPB1-20 450-680nm

Polarization Beamsplitter Cubes are an essential component for optical systems requiring precise light management. These beamsplitters utilize two complementary prisms to achieve their function. The design ensures ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 450 – 680 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 20 mm
Surface Quality/Scratch & Dig: 60/40
Beamsplitter Cube - BSPB1-15 1200-1550nm

Beamsplitter Cube - BSPB1-15 1200-1550nm

Discover the precision and reliability of our Polarization Beamsplitter Cubes, expertly crafted to meet the highest standards of optical performance. These beamsplitters are ingeniously designed using two ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 1200 – 1500 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 15 mm
Surface Quality/Scratch & Dig: 60/40
Beamsplitter Cube - BSPB1-15 650-850

Beamsplitter Cube - BSPB1-15 650-850

Polarization Beamsplitter Cubes are an essential component in optical systems, designed to split a beam of light into two separate polarized beams. These beamsplitters utilize two complementary prisms to achieve ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 650 – 850 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 15 mm
Surface Quality/Scratch & Dig: 60/40
Beamsplitter Cube - BSPB1-15 450-680nm

Beamsplitter Cube - BSPB1-15 450-680nm

Discover the precision and reliability of our Polarization Beamsplitter Cubes, meticulously crafted to meet the highest standards of optical performance. These beamsplitters are engineered using two complementary ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 450 – 680 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 15 mm
Surface Quality/Scratch & Dig: 60/40
Beamsplitter Cube - BSPB1-10 900-1200nm

Beamsplitter Cube - BSPB1-10 900-1200nm

Polarization Beamsplitter Cubes are an essential component in optical systems, designed to split a beam of light into two separate beams with distinct polarization states. These beamsplitters utilize two ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 900 – 1200 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 10 mm
Surface Quality/Scratch & Dig: 60/40
Beamsplitter Cube - BSPB1-10 650-850nm

Beamsplitter Cube - BSPB1-10 650-850nm

Polarization Beamsplitter Cubes are an essential component for anyone looking to manage light polarization with precision and efficiency. These beamsplitters are crafted using two complementary prisms, ensuring ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 650 – 850 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 10 mm
Surface Quality/Scratch & Dig: 60/40
Beamsplitter Cube - BSPB1-10 450-680nm

Beamsplitter Cube - BSPB1-10 450-680nm

Polarization Beamsplitter Cubes are an essential component for precision optical applications, offering unparalleled performance in separating polarized light. These beamsplitters are expertly crafted using two ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 450 – 680 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 10 mm
Surface Quality/Scratch & Dig: 60/40
Beamsplitter Cube - BSPN1-20 488nm

Beamsplitter Cube - BSPN1-20 488nm

Polarization Beamsplitter Cubes are precision optical components designed to separate light beams based on their polarization states. These beamsplitters utilize two complementary prisms to achieve this separation, ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 488 – 488 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 20 mm
Surface Quality/Scratch & Dig: 60/40
Beamsplitter Cube: BSPN1-15 514nm

Beamsplitter Cube: BSPN1-15 514nm

Polarization Beamsplitter Cubes are an essential component in optical systems, designed to split a beam of light into two separate beams with distinct polarization states. These beamsplitters utilize two ...

Sold by: Tower Optical Corporation Ships from: United States
Specifications
Material: N-BK7
Wavelength Range: 226 – 2300 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 15 mm
Surface Quality/Scratch & Dig: 60/40

Did You Know?

Cube Beam splitters are used to split the light into two separate components and are used in life sciences and laser applications. They consist of a pair of right angled prisms carefully cemented together to minimize wave front distortion. The thickness of the cementing layer can be carefully chosen to render the desired split ratio. Polarizing cube beam splitters split the unpolarised light into s-polarization and p-polarization states, while non-polarising ones leave it intact.

Cube Beamsplitters: Precision Light Division for Advanced Optics

Cube beamsplitters are essential optical components designed to divide an incident light beam into two separate beams, typically by reflecting a portion and transmitting the remainder. Their compact and robust design makes them ideal for integration into various optical systems, ensuring minimal optical path deviation and high alignment stability.

Construction and Functionality

A cube beamsplitter consists of two right-angle prisms joined at their hypotenuses, forming a cube-like structure. One of the internal surfaces is coated with a dielectric or metallic layer that reflects a specific percentage of the incident light while allowing the rest to pass through. This design facilitates the splitting of light without significant loss or distortion, ensuring high optical performance.

Types of Cube Beamsplitters

  1. Non-Polarizing Cube Beamsplitters: These devices split light without altering its polarization state, making them suitable for applications where maintaining the original polarization is crucial.

  2. Polarizing Cube Beamsplitters: Designed to separate light based on polarization, these beamsplitters reflect S-polarized light and transmit P-polarized light. They are commonly used in optical isolators and other polarization-sensitive applications.

  3. Partial Reflectance Cube Beamsplitters (PRC): These provide precise control over the split ratio for a specific wavelength, offering high transmission and reflection efficiency. They are often used in applications requiring accurate light division.

Applications

Cube beamsplitters are utilized across various fields due to their versatility and performance:

  • Microscopy: In fluorescence microscopy, cube beamsplitters direct excitation light to the sample and guide emitted fluorescence to the detector.

  • Laser Systems: They are employed in laser setups to split beams for different paths or to combine beams in interferometric applications.

  • Optical Interferometry: Cube beamsplitters are integral in devices like Mach-Zehnder interferometers, where precise beam splitting is essential for interference measurements.

  • Fiber Optic Systems: In telecommunications, they assist in directing light within fiber optic networks, ensuring efficient signal routing.

  • Quantum Optics: Used in experiments requiring precise control over light paths and polarization states, such as quantum entanglement studies.

Advantages

  • Compact Design: The cube structure allows for easy integration into optical systems with minimal space requirements.

  • High Stability: The robust construction ensures consistent performance over time, even in demanding environments.

  • Minimal Optical Path Deviation: The design minimizes changes in the light path, preserving the integrity of the optical system.

  • Versatility: Available in various coatings and configurations to suit specific application needs.

Conclusion

Cube beamsplitters are fundamental components in modern optics, offering precise and reliable light division capabilities. Their adaptability across different applications—from microscopy to quantum optics—demonstrates their integral role in advancing optical technologies. When selecting a cube beamsplitter, considerations such as wavelength range, polarization requirements, and optical power handling are essential to ensure optimal performance.
