Output Couplers for Laser Cavities and Systems

Did You Know?

In laser systems, an output coupler is a partially reflective mirror that plays a crucial role in extracting a portion of the light from the laser's intracavity beam. By allowing a specific amount of light to transmit through, it enables the generation of a usable laser output while maintaining the necessary feedback for continuous lasing. The reflectivity and transmissivity of the output coupler are carefully designed to balance the output power and the efficiency of the laser system. Commonly used in various laser types, including Nd:YAG, Yb:YAG, and Ti:sapphire lasers, output couplers are essential components in achieving stable and efficient laser operation. Their design and performance directly influence the quality and characteristics of the emitted laser beam, making them integral to the functionality of laser resonators.

Related Resources

Frequently Asked Questions

An output coupler is a partially reflecting mirror used as one end of a laser resonator to extract a defined fraction of the intracavity power as useful output. It is typically a dielectric-coated optic with a specified reflectivity (R) and transmission (T) at the lasing wavelength or wavelength band, designed to balance gain, losses, and desired output power while maintaining stable oscillation.

What Are Output Couplers?

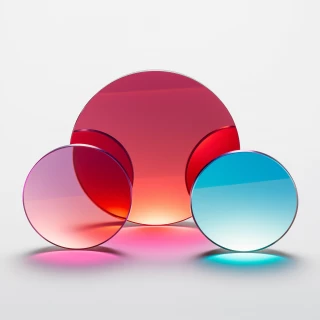

Output Couplers are partially transmitting mirrors used at the end of a laser resonator to extract a controlled fraction of intracavity power while maintaining oscillation. These beamsplitter elements are typically dielectric-coated substrates with well-defined reflectance and transmittance at one or more laser lines. Output Couplers are critical in setting threshold, efficiency, and beam quality for solid-state, gas, and some fiber laser architectures.

Typical Specifications for Output Couplers

Key parameters to review when selecting Output Couplers include:

  • Wavelength / bandwidth: Center wavelength and high-reflectivity band (e.g., 1064 nm, 532 nm, 1550 nm) matched to the gain medium.

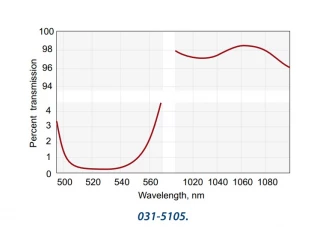

  • Reflectance / transmittance: Specified as R/T at the design wavelength (e.g., R = 90%, T = 10%), often with tight tolerances to control output power.
  • Angle of incidence (AOI): Typically 0° or small AOI; coating performance depends on AOI and polarization.
  • Surface quality and flatness: Scratch-dig (e.g., 10-5, 20-10) and λ/10–λ/4 flatness to preserve beam quality and cavity stability.
  • Damage threshold: Continuous-wave and pulsed laser-induced damage thresholds (LIDT), specified in W/cm² or J/cm².
  • Substrate material: Fused silica, BK7, or other glasses selected for thermal properties and transmission range.
  • Clear aperture and diameter: Must accommodate beam size with margin to avoid edge clipping.

Use Cases for Output Couplers

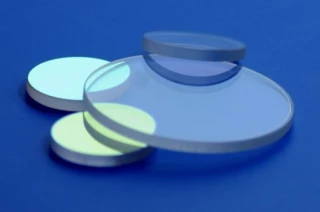

Output Couplers are used in Nd:YAG and Yb-doped solid-state lasers, Ti:sapphire oscillators, HeNe lasers, and other resonators requiring a defined output coupling ratio. Designers adjust Output Couplers to optimize slope efficiency, pulse energy, or mode locking behavior, and to balance intracavity power against component lifetime.

Buyer Guidance on FindLight

When comparing Output Couplers on FindLight, start from the operating wavelength and cavity design, then refine by reflectance, AOI, and damage threshold. Verify substrate material, mechanical dimensions, and mounting constraints relative to your laser head or optical bench. Review datasheets for LIDT test conditions to ensure compatibility with your pulse duration and repetition rate. For custom Output Couplers with non-standard coatings or diameters, use the request-quote function to communicate your specifications directly to suppliers; no registration is required to initiate technical and commercial discussions.
