Fresnel Beamsplitters

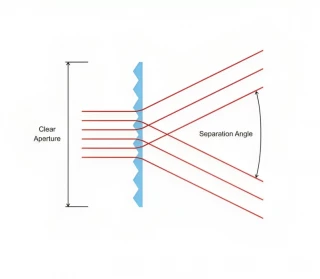

ORAFOL Fresnel Beamsplitter PR 775

ORAFOL Fresnel Beamsplitter PR 775

The ORAFOL Fresnel Beamsplitter PR 775 is an advanced optical component designed to efficiently divide incident light into two separate beams. Utilizing a specialized Fresnel lens design, this beamsplitter minimizes ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 20 deg
Separation Angle: 20 deg
Facet Spacing: 0.508 mm
Clear Aperture (X): 369.4 mm
Clear Aperture (Y): 367 mm
ORAFOL Fresnel Beamsplitter PR 765

ORAFOL Fresnel Beamsplitter PR 765

The Fresnel Beamsplitter PR 765 from ORAFOL Fresnel Optics GmbH is a precision optical component designed for applications that require the division of an incoming light beam into two distinct paths. Utilizing ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 30 deg
Separation Angle: 32 deg
Facet Spacing: 2 mm
Clear Aperture (X): 164.9 mm
Clear Aperture (Y): 164.7 mm
ORAFOL Fresnel Beamsplitter PR 703

ORAFOL Fresnel Beamsplitter PR 703

The Fresnel Beamsplitter PR 703 from ORAFOL Fresnel Optics GmbH is a state-of-the-art optical component designed to split incoming light into two distinct paths. This highly efficient beamsplitter is ideal for ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 39 deg
Separation Angle: 42 deg
Facet Spacing: 0.508 mm
Clear Aperture (X): 308.6 mm
Clear Aperture (Y): 308.6 mm
ORAFOL Fresnel Beamsplitter PR 757

ORAFOL Fresnel Beamsplitter PR 757

The Fresnel Beamsplitter PR 757 by ORAFOL Fresnel Optics GmbH is a high-performance optical component designed to split incoming light beams into two distinct paths with maximum efficiency. Utilizing advanced ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 45 deg
Separation Angle: 51 deg
Facet Spacing: 1.106 mm
Clear Aperture (X): 256.4 mm
Clear Aperture (Y): 206.9 mm
ORAFOL Fresnel Beamsplitter PR 713

ORAFOL Fresnel Beamsplitter PR 713

The Fresnel Beamsplitter PR 713 by ORAFOL Fresnel Optics GmbH is an advanced optical component designed to split light beams with high precision. Utilizing Fresnel technology, this beamsplitter efficiently divides ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 45 deg
Separation Angle: 51 deg
Facet Spacing: 0.305 mm
Clear Aperture (X): 340.1 mm
Clear Aperture (Y): 269.2 mm

Did You Know?

Did you know that Fresnel beamsplitters are at the forefront of optical innovation? Unlike traditional beamsplitters, Fresnel beamsplitters utilize a unique surface structure to divide and redirect light beams efficiently. Developed based on Augustin-Jean Fresnel's principles, these beamsplitters incorporate a flat, lightweight design, offering advantages in weight, size, and cost over their conventional counterparts. Widely used in optical systems, they excel in applications like interferometry, laser technology, and imaging. The innovative Fresnel design allows for precise control of light without compromising optical quality. By enhancing beam control and maintaining a compact profile, Fresnel beamsplitters contribute significantly to advancements in diverse fields, showcasing their pivotal role in modern optical systems and technologies.

Frequently Asked Questions

A Fresnel beamsplitter is an optical device that divides and redirects light efficiently. Unlike traditional beamsplitters, Fresnel beamsplitters feature a unique flat surface structure based on Augustin-Jean Fresnel's principles, offering advantages in weight, size, and cost while maintaining precise control of light in optical systems.

Fresnel Beamsplitters: Compact and Efficient Light Division

Fresnel beamsplitters are specialized optical components designed to divide an incident light beam into two separate beams. Unlike traditional beamsplitters that rely on coatings or prisms, Fresnel beamsplitters utilize a series of concentric grooves etched into a transparent substrate. These grooves diffract the incoming light, creating multiple beams with specific intensity ratios.

Construction and Working Principle

The core structure of a Fresnel beamsplitter consists of a flat optical substrate, typically made from materials like UV fused silica, with a pattern of concentric grooves on its surface. When light strikes the grooves, diffraction occurs, splitting the light into several beams. The design and spacing of these grooves determine the intensity and direction of the resulting beams.

Applications

Fresnel beamsplitters are utilized in various applications:

  • Laser Systems: They are employed to split laser beams into multiple paths for experiments or system configurations.

  • Optical Interferometry: Used in setups like Mach-Zehnder interferometers to create interference patterns.

  • Beam Sampling: In laser diagnostics, they provide a portion of the beam for monitoring without significantly disturbing the main beam.

  • Imaging Systems: In some optical systems, they help in directing light to multiple detectors or cameras.

Advantages

  • Compact Design: The flat profile allows for easy integration into optical systems with minimal space requirements.

  • Cost-Effective: Manufacturing processes for Fresnel beamsplitters can be more economical compared to traditional coated or cube beamsplitters.

  • Customizable: The groove pattern can be tailored to achieve specific splitting ratios and diffraction angles.

Considerations

  • Wavelength Dependency: The performance of Fresnel beamsplitters can vary with the wavelength of the incident light.

  • Surface Quality: The quality of the etched grooves and the substrate surface can affect the efficiency and clarity of the split beams.

  • Polarization Effects: The diffraction efficiency may be influenced by the polarization state of the incident light.

Conclusion

Fresnel beamsplitters offer a unique and efficient method for dividing light in optical systems. Their compact design and cost-effectiveness make them suitable for a range of applications, from laser diagnostics to complex optical experiments. When selecting a Fresnel beamsplitter, it's essential to consider factors like wavelength, polarization, and surface quality to ensure optimal performance.
