Description

The Fresnel Beamsplitter PR 703 from ORAFOL Fresnel Optics GmbH is a state-of-the-art optical component designed to split incoming light into two distinct paths. This highly efficient beamsplitter is ideal for applications in various optical systems, including laser technologies, telecommunications, and imaging systems. The innovative Fresnel design allows for a thinner profile, minimizing weight while maintaining exceptional optical performance.

Engineered from high-quality optical materials, the PR 703 offers impressive transmission rates, significantly reducing light loss during the splitting process. Its unique design also helps in minimizing reflection losses, ensuring that most of the light energy is effectively utilized. The beamsplitter operates reliably across a wide temperature range, making it suitable for diverse environmental conditions.

With its high durability and optical clarity, the PR 703 is the perfect choice for demanding applications requiring precision and reliability. Whether used in scientific research, industrial applications, or advanced telecommunications, the Fresnel Beamsplitter PR 703 stands out as a top-tier solution for all your optical needs.

ORAFOL Fresnel Beamsplitter PR 703

Specifications

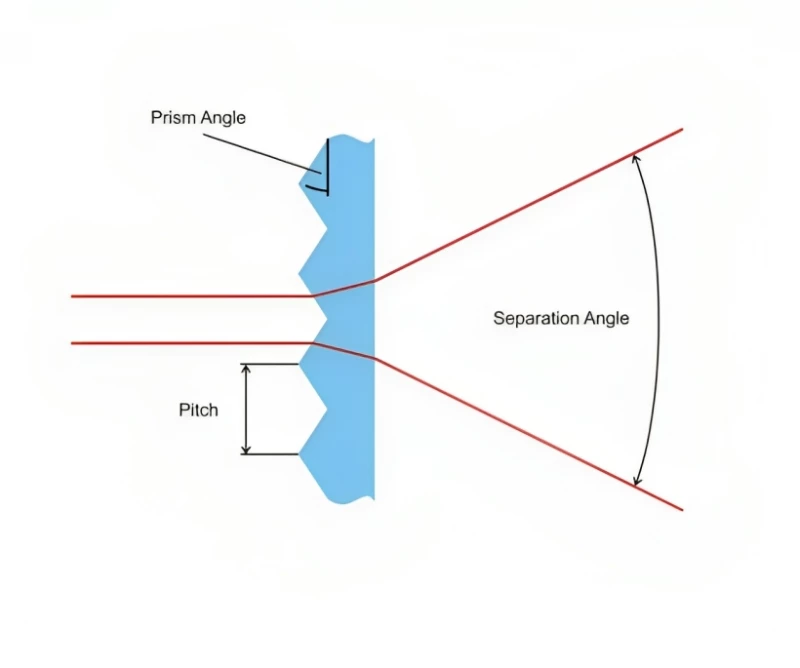

Prism Angle: 39 deg
Separation Angle: 42 deg
Facet Spacing: 0.508 mm

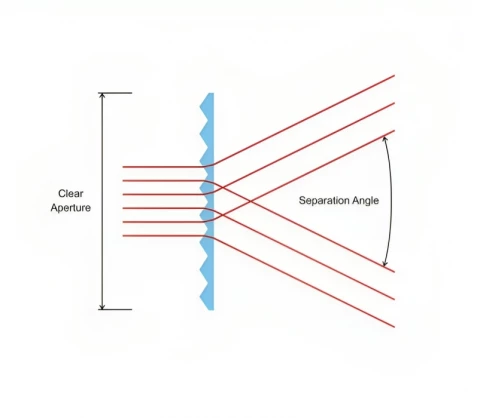

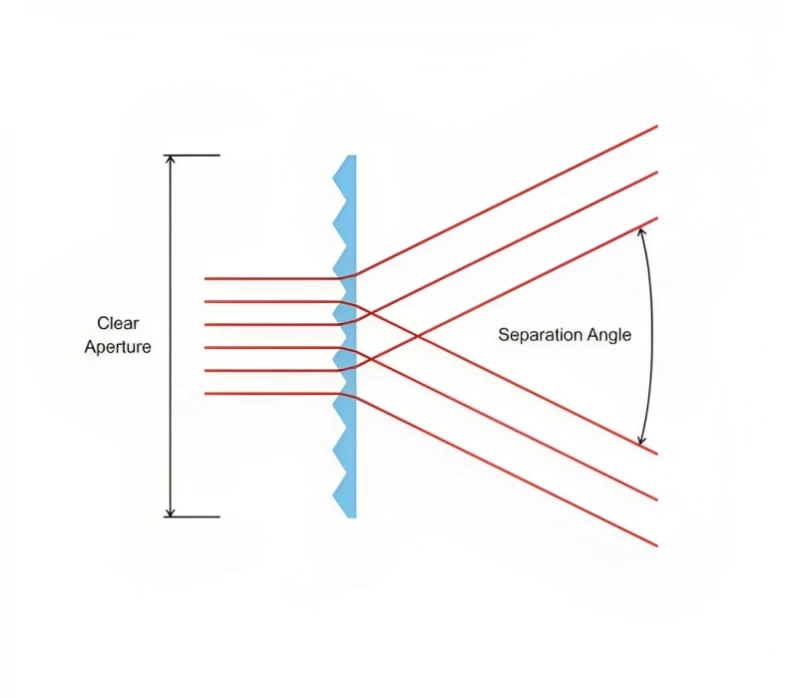

Clear Aperture (X): 308.6 mm
Clear Aperture (Y): 308.6 mm
Prism Length: 308.6 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Innovative Fresnel Beam Splitter Design
  • Linear Structure with Opposite Angles
  • Two Effective Flanks for Optimal Beam Division
  • Enables Controlled Division Angle
  • Lightweight and Space-Efficient Construction

Applications

  • Optical Systems in Imaging and Projection
  • Laser Systems and Research Applications
  • Photonic Devices
  • Light Measurement Instruments
  • Scientific and Industrial Optics

Frequently Asked Questions

What is the primary function of the PR 703?
The PR 703 is designed to split incoming light into two distinct paths.
What materials are used in the PR 703?
It is made from high-quality optical polymer.
What is the wavelength range for this beamsplitter?
The wavelength range is customizable based on application needs.
How efficient is the light transmission?
The PR 703 achieves up to 95% transmission efficiency.
Can this beamsplitter operate in extreme temperatures?
Yes, it functions effectively between -40°C to +85°C.
What applications are suitable for the PR 703?
It is ideal for laser systems, optical communication, imaging systems, and measurement instruments.
How does the PR 703 minimize reflection losses?
The design incorporates features that effectively reduce reflection losses.
Is the PR 703 suitable for compact setups?
Yes, its thin Fresnel design makes it lightweight and compact.
Are custom sizes available for the PR 703?
Yes, various sizes are available to meet specific requirements.
What is the durability of the PR 703?
It is built for long-lasting performance with high durability.

Got more questions? Use the inquiry form to ask the supplier directly.
