Description

The Fresnel Beamsplitter PR 713 by ORAFOL Fresnel Optics GmbH is an advanced optical component designed to split light beams with high precision. Utilizing Fresnel technology, this beamsplitter efficiently divides incident light into two distinct beams while minimizing losses, ensuring optimal performance in various optical systems. Its lightweight and compact design is achieved by leveraging Fresnel microstructures, reducing material thickness without compromising optical quality.

This beamsplitter is ideal for applications that demand high transmission efficiency, such as laser systems, optical measurement devices, and display technologies. Its high transmission and reflection ratio make it perfect for integrating into compact, high-performance systems. Designed to function within a wide wavelength range, the PR 713 beamsplitter is versatile and can be customized for specific wavelength needs.

Manufactured with high-quality optical polymers, it is durable and resistant to environmental variations, making it suitable for use in diverse conditions. The PR 713 is known for delivering high performance even in demanding optical setups, making it a preferred choice in research, industrial, and commercial applications.

ORAFOL Fresnel Beamsplitter PR 713

Specifications

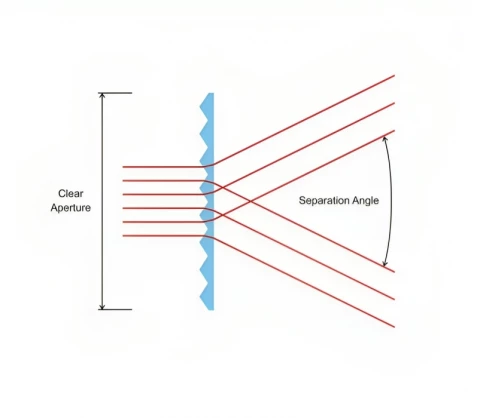

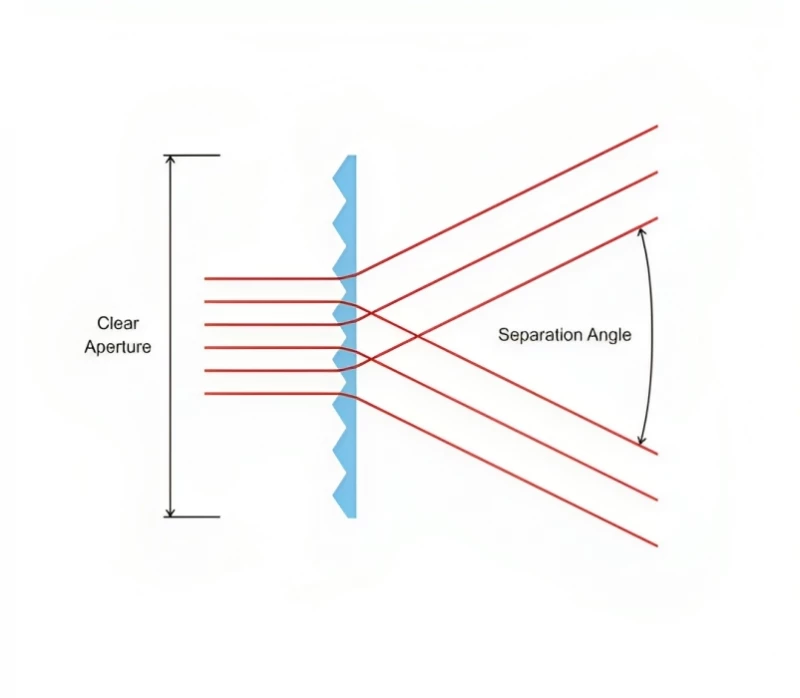

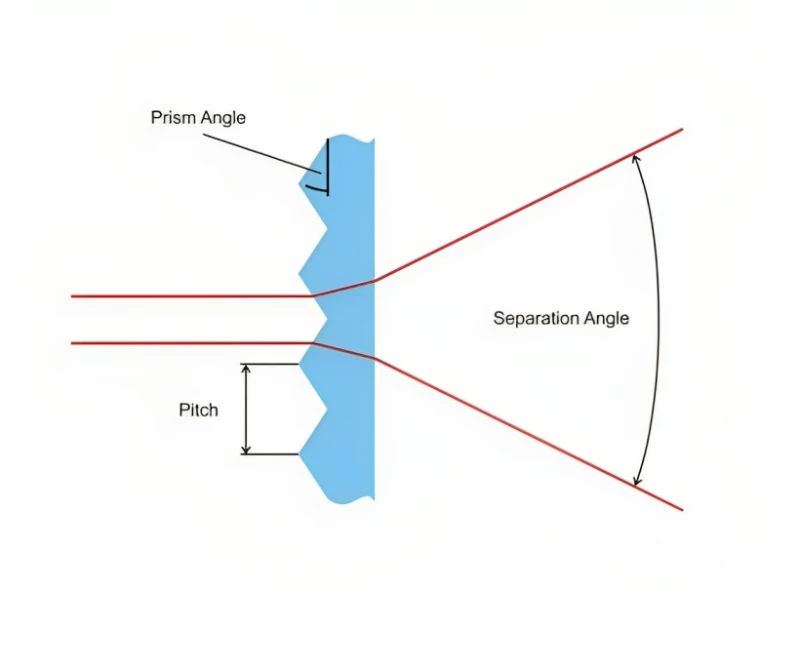

Prism Angle: 45 deg
Separation Angle: 51 deg
Facet Spacing: 0.305 mm
Clear Aperture (X): 340.1 mm
Clear Aperture (Y): 269.2 mm
Prism Length: 340.1 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Innovative Fresnel Beam Splitter Design
  • Linear Structure with Opposite Angles
  • Two Effective Flanks for Optimal Beam Division
  • Enables Controlled Division Angle
  • Lightweight and Space-Efficient Construction

Applications

  • Optical Systems in Imaging and Projection
  • Laser Systems and Research Applications
  • Photonic Devices
  • Light Measurement Instruments
  • Scientific and Industrial Optics

Frequently Asked Questions

What is the primary function of the Fresnel Beamsplitter PR 713?
It is designed to split incident light into two beams with high transmission efficiency and minimal reflection loss.
What materials are used in the PR 713?
The beamsplitter is made from high-quality optical polymers, ensuring durability and resistance to environmental factors.
Is the PR 713 customizable for specific wavelengths?
Yes, it can be customized for different wavelength ranges, depending on application requirements.
What is the transmission efficiency of the PR 713?
The Fresnel Beamsplitter PR 713 offers up to 95% transmission efficiency, ensuring minimal light loss.
What are typical applications of the PR 713?
It is commonly used in laser systems, optical measurement devices, display technologies, and optical communication.
How does the Fresnel design benefit the beamsplitter?
The Fresnel design reduces the material thickness, making the beamsplitter lightweight while maintaining optical quality.
What is the operating temperature range for the PR 713?
The PR 713 operates effectively in temperatures ranging from -40°C to +85°C.
Does the PR 713 support high-precision applications?
Yes, its design ensures precision beam splitting, making it ideal for high-performance optical systems.
Can the PR 713 be used in outdoor environments?
Yes, its durable polymer material and wide temperature range make it suitable for various environmental conditions.
How does the PR 713 minimize unwanted reflections?
The beamsplitter is designed to reduce reflection losses, enhancing overall optical system performance.

Got more questions? Use the inquiry form to ask the supplier directly.
