Description

The ORAFOL Fresnel Beamsplitter PR 775 is an advanced optical component designed to efficiently divide incident light into two separate beams. Utilizing a specialized Fresnel lens design, this beamsplitter minimizes light loss while ensuring high transmission and reflection rates. It operates effectively within a wavelength range of 400 nm to 800 nm, making it ideal for applications in various fields, including telecommunications, imaging systems, and scientific research.

This beamsplitter features a compact, lightweight design that simplifies integration into optical setups, providing flexibility in installation. Its low-profile form factor allows for easy alignment and positioning, essential for precision optical applications. The high-quality acrylic material used in its construction guarantees durability and resistance to environmental factors, ensuring long-lasting performance. The PR 775 is engineered for optimal light management, making it a preferred choice for professionals in optical engineering and design.

With its excellent optical properties and versatility, the ORAFOL Fresnel Beamsplitter PR 775 is an indispensable tool for enhancing the efficiency and effectiveness of optical systems across multiple industries.

ORAFOL Fresnel Beamsplitter PR 775

Specifications

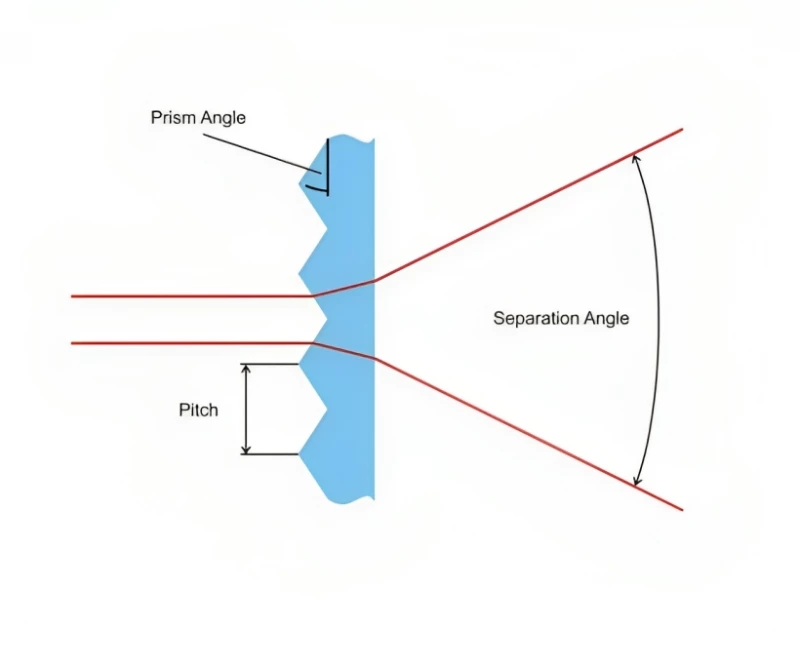

Prism Angle: 20 deg
Separation Angle: 20 deg
Facet Spacing: 0.508 mm

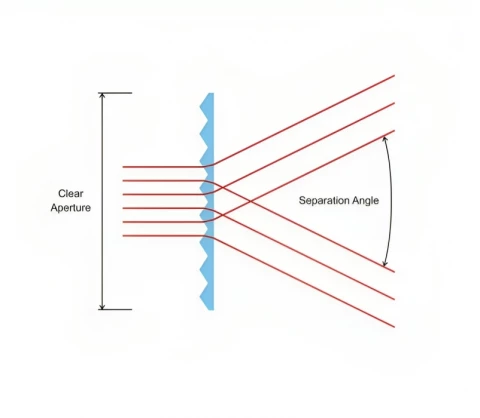

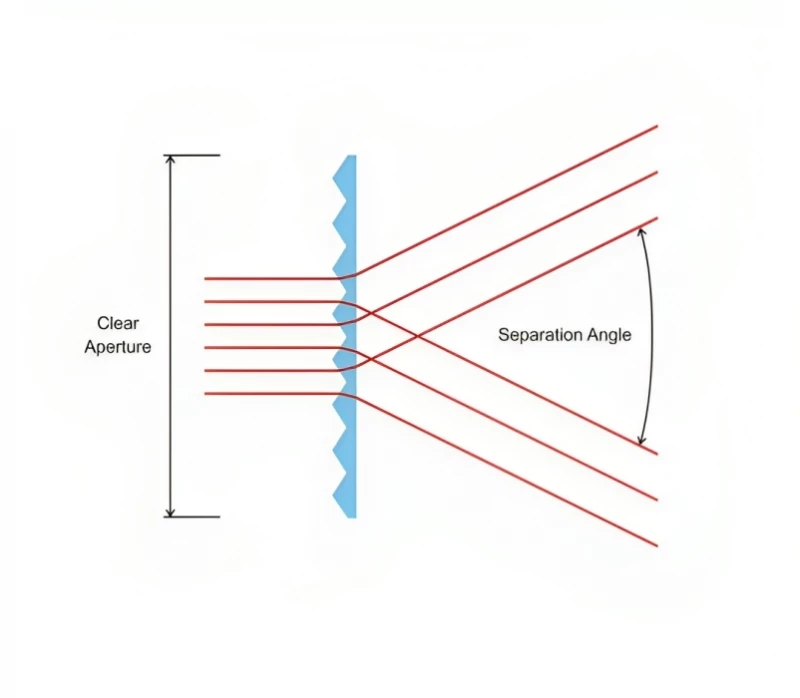

Clear Aperture (X): 369.4 mm
Clear Aperture (Y): 367 mm
Prism Length: 369.4 mm
Thickness: 2.5 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Innovative Fresnel Beam Splitter Design
  • Linear Structure with Opposite Angles
  • Two Effective Flanks for Optimal Beam Division
  • Enables Controlled Division Angle
  • Lightweight and Space-Efficient Construction

Applications

  • Optical Systems in Imaging and Projection
  • Laser Systems and Research Applications
  • Photonic Devices
  • Light Measurement Instruments
  • Scientific and Industrial Optics

Frequently Asked Questions

What is the primary function of the ORAFOL Fresnel Beamsplitter PR 775?
Splits incident light into two separate beams with minimal loss.
What is the wavelength range for optimal performance?
Operates effectively between 400 nm and 800 nm.
What is the transmission efficiency of the PR 775?
Offers a transmission efficiency of over 90%.
What material is the ORAFOL Fresnel Beamsplitter made from?
Made from high-quality acrylic for durability and resistance.
How does the compact design benefit users?
Allows for easy integration and alignment in various optical systems.
Can this beamsplitter be used in laser applications?
Yes, suitable for laser applications for beam splitting and routing.
What are some common applications of the PR 775?
Used in optical communication, imaging systems, and scientific research.
What is the operating temperature range for this product?
Operates in a range of -30°C to +70°C.
How much does the ORAFOL Fresnel Beamsplitter PR 775 weigh?
Weighs approximately 100 g.
