Description

The Fresnel Beamsplitter PR 757 by ORAFOL Fresnel Optics GmbH is a high-performance optical component designed to split incoming light beams into two distinct paths with maximum efficiency. Utilizing advanced Fresnel optics, this beamsplitter minimizes reflection losses while offering high transmission rates. Its lightweight and compact design make it ideal for integration into various optical systems, from laser applications to optical measurement and display technologies.

Manufactured from durable, high-quality optical polymers, the PR 757 delivers excellent environmental stability, making it suitable for use in both controlled environments and harsher conditions. Its ability to handle a wide range of wavelengths and provide precise light beam division ensures that it meets the needs of professionals in industries such as telecommunications, medical instrumentation, and optical communication systems. Whether used for reflection control or beam separation, the PR 757 guarantees consistent performance and reliable results in complex optical systems.

ORAFOL Fresnel Beamsplitter PR 757

Specifications

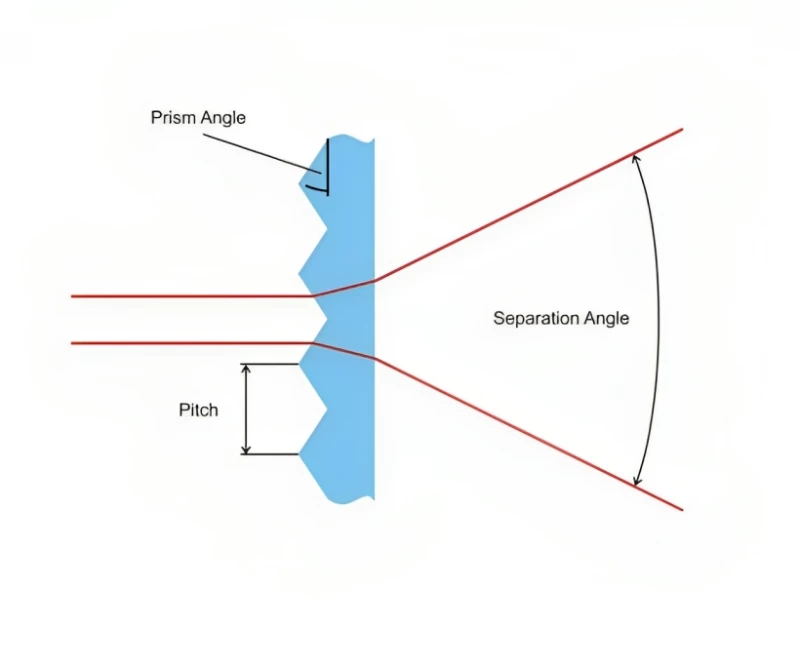

Prism Angle: 45 deg

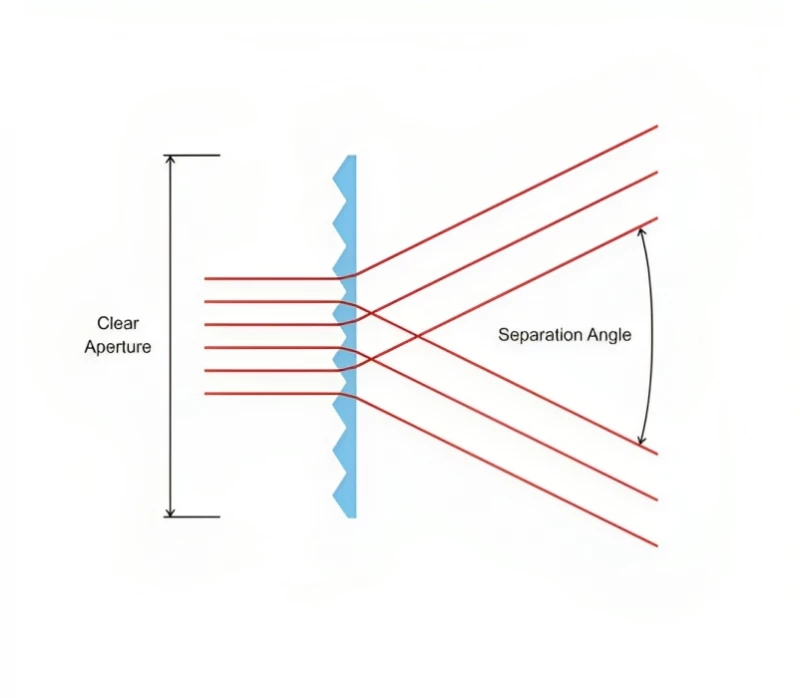

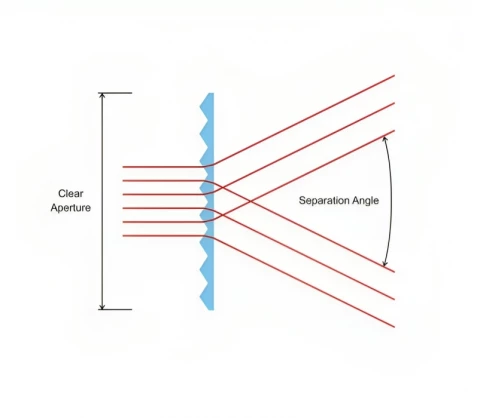

Separation Angle: 51 deg
Facet Spacing: 1.106 mm
Clear Aperture (X): 256.4 mm
Clear Aperture (Y): 206.9 mm
Prism Length: 256.4 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Innovative Fresnel Beam Splitter Design
  • Linear Structure with Opposite Angles
  • Two Effective Flanks for Optimal Beam Division
  • Enables Controlled Division Angle
  • Lightweight and Space-Efficient Construction

Applications

  • Optical Systems in Imaging and Projection
  • Laser Systems and Research Applications
  • Photonic Devices
  • Light Measurement Instruments
  • Scientific and Industrial Optics

Frequently Asked Questions

What is the primary function of the Fresnel Beamsplitter PR 757?
Designed to split incoming light beams into two distinct paths efficiently.
What materials are used in the construction of this beamsplitter?
Manufactured from durable optical polymers to ensure long-lasting performance.
What is the typical transmission efficiency of the PR 757?
Achieves up to 95% transmission efficiency, minimizing light loss.
Can the beamsplitter be customized for different wavelengths?
Yes, it is available for various wavelength specifications based on application needs.
What is the operating temperature range for the PR 757?
Operates effectively between -40°C and +85°C, suitable for various environments.
In which applications is the PR 757 commonly used?
Used in laser systems, optical communication, display technologies, and measurement instruments.
How does the Fresnel design benefit the PR 757?
Reduces material thickness while maintaining precision optical performance.
Does the PR 757 minimize reflection losses?
Yes, it is designed to minimize reflection losses, enhancing overall system efficiency.
What industries can benefit from using the PR 757?
Beneficial in telecommunications, medical instrumentation, and optical communication systems.
Is the Fresnel Beamsplitter PR 757 suitable for harsh environments?
Yes, it provides excellent environmental stability, making it suitable for harsh conditions.

Got more questions? Use the inquiry form to ask the supplier directly.
