Description
Material BK7
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness λ/8@632.8nm per 25mm range
Wedge <1 arc minute
Surface Quality 60/40
Coating S1: Partial reflective coating, AOI 0deg
S2: AR coating, AOI 0deg
Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm

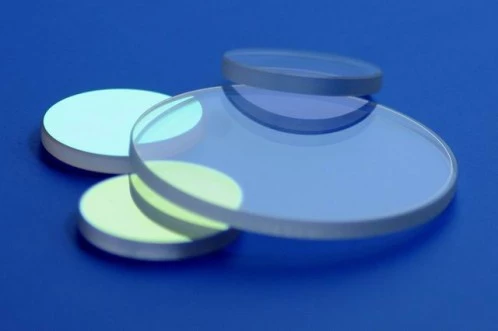

Nd:YAG Laser Output Coupler
Specifications
| Substrate Material: | BK7 |
|---|---|
| Wavelength: | 1064 nm |
| Average Reflection: | 50 % |
| Average Transmission: | 50 % |
| Diameter: | 25.4 mm |
| Thickness: | 3 mm |
| Surface Flatness: | <= Lambda/4 |
| Surface Quality: | 60-40 scratch-dig |
Download Data Sheet
Frequently Asked Questions
What is the damage threshold of the Nd:YAG Laser Output Coupler?
The damage threshold of the Nd:YAG Laser Output Coupler is greater than 5J/cm2, 20ns, 20Hz, @1064nm.
What is the clear aperture of the Nd:YAG Laser Output Coupler?
The clear aperture of the Nd:YAG Laser Output Coupler is greater than 90%.
What is the thickness tolerance of the Nd:YAG Laser Output Coupler?
The thickness tolerance of the Nd:YAG Laser Output Coupler is ±0.2mm.
What is the surface quality of the Nd:YAG Laser Output Coupler?
The surface quality of the Nd:YAG Laser Output Coupler is 60/40.
What is the Nd:YAG Laser Output Coupler made of?
The Nd:YAG Laser Output Coupler is made of BK7 material.
