Beamsplitter Cube - BSPB1-15 450-680nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

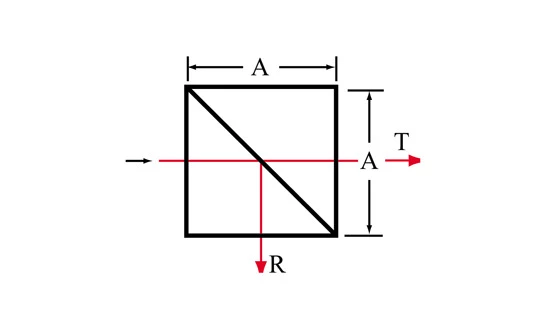

Discover the precision and reliability of our Polarization Beamsplitter Cubes, meticulously crafted to meet the highest standards of optical performance. These beamsplitters are engineered using two complementary prisms, ensuring that the output beam parallel to the input beam is p-polarized, while the orthogonal output beam is s-polarized. This design guarantees optimal separation of polarized light, making them an essential component in various optical applications.
Our beamsplitter cubes are constructed from BK-7 grade A optical glass, renowned for its clarity and durability. With a dimension range from 3.2mm to 50.8mm and precise dimensional tolerances of ±0.2mm, these cubes are designed to fit seamlessly into your optical systems. The angular tolerance of ±3 arc minutes and surface quality of 60/40 ensure minimal distortion and high-quality performance.
The polarization beamsplitter coating is applied on the hypotenuse, enhancing the cube's ability to manage polarized light effectively. Additionally, the anti-reflective (AR) coating ensures reflectance of less than 0.25% per face for all four faces, maximizing light transmission and minimizing loss. With a wavelength range from 226nm to 2300nm, these beamsplitters are versatile and adaptable to a wide array of optical tasks.
At Tower Optical Corporation, we understand that quality is not just a feature—it's priceless. Our commitment to excellence is reflected in every product we offer. Whether you require standard specifications or custom solutions, our team is ready to assist you with your specific optical needs.
Beamsplitter Cube - BSPB1-15 450-680nm
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 450 – 680 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 15 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass, ensuring durability and superior performance.
- Versatile Dimension Range: Available in sizes from 3.2mm to 50.8mm to suit various applications.
- Precision Engineering: Dimensional tolerance of ±0.2mm and angular tolerance of ±3 arc minutes for accurate results.
- Excellent Surface Quality: Scratch and dig specification of 60/40 for a pristine optical surface.
- Minimal Beam Deviation: Beam deviation of just 3 arc minutes for precise beam alignment.
- High Extinction Ratio: Extinction ratio greater than 100:1 for effective polarization separation.
- Superior Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Wide Wavelength Range: Operates effectively across a wavelength range of 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces.
- Customizable Options: Custom versions available upon request to meet specific requirements.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery.
- Volume Discounts: Discounts offered on orders of 10 pieces or more, providing cost savings for bulk purchases.
Applications
- Scientific Research: Ideal for experiments requiring precise polarization separation, such as laser optics and spectroscopy.
- Telecommunications: Used in fiber optic systems to manage signal polarization and improve transmission quality.
- Imaging Systems: Enhances image quality by controlling light polarization in cameras and microscopes.
- Laser Systems: Essential for laser beam manipulation, ensuring optimal beam quality and performance.
- Optical Instrumentation: Integral in devices that require accurate light measurement and analysis.
- Medical Devices: Utilized in diagnostic equipment for precise light control and measurement.
- Industrial Applications: Applied in manufacturing processes that require controlled light polarization for quality assurance.
Frequently Asked Questions
The Beamsplitter Cube - BSPB1-15 450-680nm is used for polarization beamsplitting.
The material used for the Beamsplitter Cube - BSPB1-15 450-680nm is BK-7 grade A optical glass.
The wavelength range for the Beamsplitter Cube - BSPB1-15 450-680nm is 450-680nm.
Yes, custom versions of the Beamsplitter Cube - BSPB1-15 450-680nm are available from the manufacturer.
You can get more information about the Beamsplitter Cube - BSPB1-15 450-680nm by contacting the manufacturer through their email sales@toweroptical.com or by calling 1-561-740-2525.
