Description
Beamsplitters are used to split or combine beams of light. Plates are used for most laser applications as they exhibit low absorption. Cubes are a convenient, protected form for low power applications. The performance of a beamsplitter is mainly dependent on the coating specifications.
- Wide Variety of Beamsplitter Types Including Polarizing, Non-Polarizing, and Laser Line.
- Customized Solutions for Prototype to Volume Production.
- Design and Application Expertise for Complex Coating and Geometry Needs.
- Coating Capabilities from 450 – 1650nm.

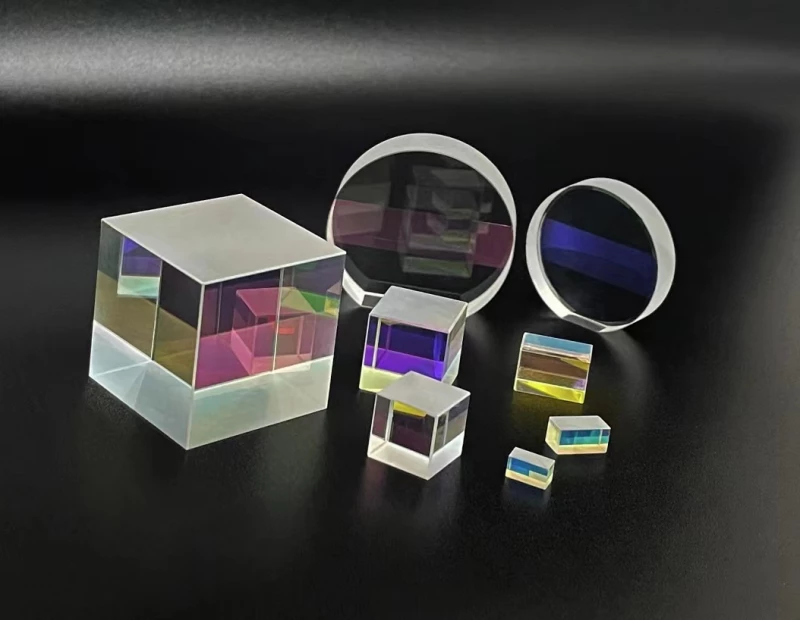

C T Optics 25.4mm Beamsplitter Cube: >99% Reflectivity, >95% Transmission, High Extinction Ratio >1000:1
Fuzhou HCT Optics Co.,LTD
Specifications
| Material: | H-K9L |
|---|---|
| Wavelength Range: | 450 – 1650 nm |
| Max Beam Deviation: | 2 arcmin |
| Size (Linear Dimension): | 8 mm |
| Flatness: | λ/4 |
| Surface Quality: | 20/10 |
Download Data Sheet
Features
- Standard Sizes Available: 8x8x8mm, 10x10x10mm, 12.7x12.7x12.7mm, 15x15x15mm, 20x20x20mm, 25.4x25.4x25.4mm
- High Reflectivity: Rs > 99%
- High Transmission: Ts > 95%
- Low Polarization: Rp < 5%
- Exceptional Extinction Ratio: > 1000:1
- Construction Options: Available in both Optical Contact and Cemented forms
Applications
- Laser Systems: Beam splitting for research and industry.
- Optical Instruments: Precise beam manipulation and measurement.
- Microscopy: Enhances fluorescence and confocal imaging.
- Telecommunications: Signal processing in fiber optics.
- Medical Devices: Accurate light control in imaging tools.
- Holography: Creating and reconstructing holographic images.
- Spectroscopy: Separates wavelengths for analysis.
- Photonics Research: Supports advanced R&D.
