Description

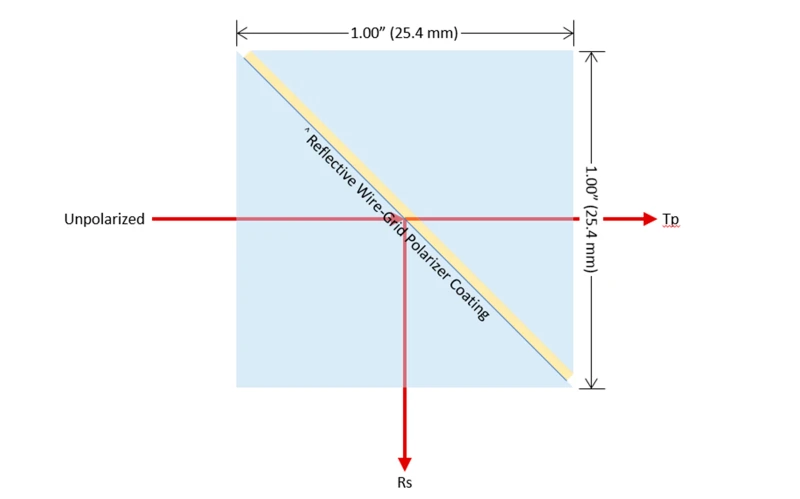

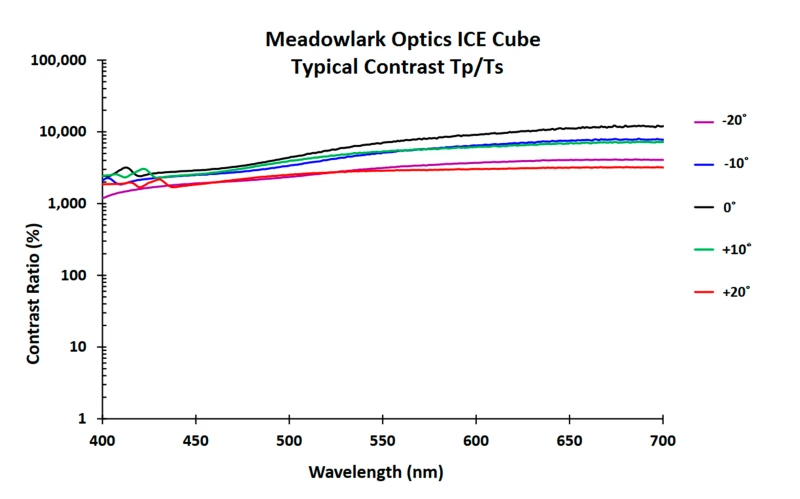

Meadowlark Optics is now the exclusive provider of the ICE Cube™ formerly offered by Moxtek. This polarizing beam splitter (PBS) cube is optimized for use over a wide range of acceptance angles while maintaining color uniformity and image contrast in the visible wavelength ranges. The ICE Cube™ allows compact optical designs with reduced optical paths. Engineers are now able to design smaller systems while maintaining excellent optical performance. The ICE Cube™ polarizer performance exceeds that for the commonly used thin film MacNeille cubes in both acceptable wavelength range and angle of incidence range while providing more than twice the contrast ratio in the transmitted beam for most wavelengths.

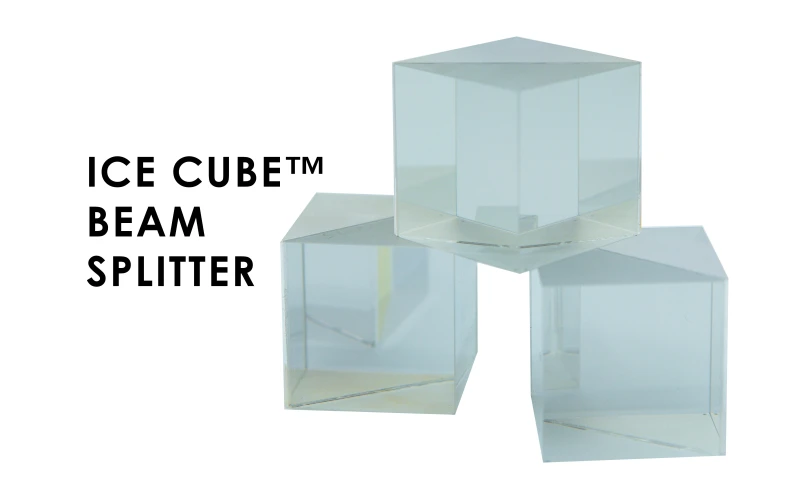

Meadowlark Optics ICE Cube™ Wiregrid Polarizing Beamsplitting Cube
Specifications
| Material: | N-BK7 |
|---|---|
| Size (Linear Dimension): | 25.4 mm |
| Design Wavelength Range: | 400 – 700 nm |
| Max Beam Deviation: | 5 arcmin |
| Sizes Available: | 5x5mm - 3x3in |
| Acceptance Angle (up To): | +/- 25 degrees |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Wide angle of incidence range
- Uniformity over wide range of angles

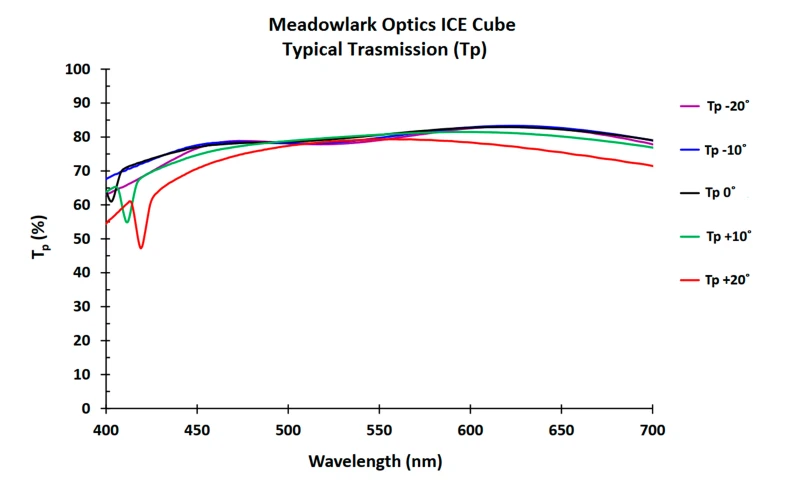

- High contrast and transmission over wide range of angles
