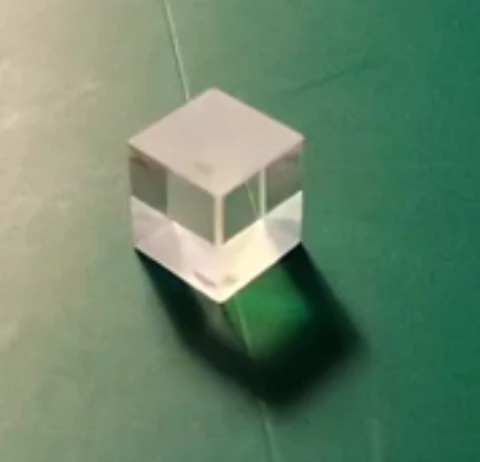

Thumbnail of Custom Chromatic Beamsplitters for Precision Optical Applications photo 1

Description

Custom Chromatic Beamsplitters (CBS) are essential components in optical systems designed for precision light management. These beamsplitters are ideal for applications like spectrometry, sensors, and microscopy, where accurate wavelength control is crucial. Manufactured using high-quality substrates such as N-BK7, H-K9L, or Fused Silica, they deliver exceptional performance across a wide range of wavelengths.

With customizable dimensions ranging from 0.3mm to 150mm and available in cube shapes, our CBS are tailored to meet specific requirements. Their advanced coatings ensure optimal beam splitting, with transmission rates of up to 99%, making them highly efficient for demanding optical applications. Whether you need specific wavelength management or unique design specifications, these beamsplitters offer reliable performance and precision.

Contact us with your dimensions or design requirements to create the perfect solution for your optical system.

Custom Chromatic Beamsplitters for Precision Optical Applications

Visit the Sinoptix Store

Specifications

Material: N-BK7, H-K9L
Size (Linear Dimension): 3 mm
Design Wavelength Range: 200 – 1800 nm
Max Beam Deviation: 2 arcmin
Shape: Cube
Coatings: Custom beam-splitting coating by wavelength
Transmission: Up to 99%
Applications: Spectrometry, Sensors, Microscopy
Surface Quality: High-quality precision

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Transmission Efficiency: Provides up to 99% transmission for optimal performance
  • Customizable Dimensions: Available in sizes from 0.3mm to 150mm to suit various applications
  • Material Options: Manufactured from high-quality substrates including N-BK7, H-K9L, or Fused Silica
  • Precision Cube Shape: Engineered for precise beam splitting in complex optical systems
  • Custom Coatings: Tailored beam-splitting coatings based on the required wavelength
  • Durable Construction: Designed for high durability in spectrometry, microscopy, and sensor applications

Applications

  • Spectrometry: Ideal for accurate spectral analysis in various scientific and industrial applications
  • Microscopy: Enhances optical systems in biological and materials research
  • Optical Sensors: Improves precision in sensor-based systems
  • Laser Systems: Suitable for beam control and splitting in advanced laser applications

Frequently Asked Questions

What materials are used in the CBS Chromatic Beamsplitters?
The CBS Chromatic Beamsplitters are made from high-quality substrates such as N-BK7, H-K9L, or Fused Silica.
What are the main applications of the CBS Chromatic Beamsplitters?
These beamsplitters are ideal for use in spectrometry, sensors, and microscopy, where precise wavelength control is needed.
What are the available dimensions for the CBS Chromatic Beamsplitters?
The dimensions can be customized, ranging from 0.3mm to 150mm, depending on your specific needs.
What shapes are available for the beamsplitters?
The CBS Chromatic Beamsplitters are available in cube shapes.
What type of coating is applied to these beamsplitters?
They are coated for beam splitting according to the requested wavelength, ensuring efficient light management.
What is the transmission rate of the CBS Chromatic Beamsplitters?
The transmission rate can reach up to 99%, offering high efficiency for optical systems.
Can I request custom specifications for the CBS Chromatic Beamsplitters?
Yes, you can provide specific dimensions or design requirements, and we will customize the product to meet your needs.
How are the CBS Chromatic Beamsplitters manufactured?
They are precision-manufactured using advanced coatings and high-quality materials to meet exacting optical standards.

Got more questions? Use the inquiry form to ask the supplier directly.
