Description

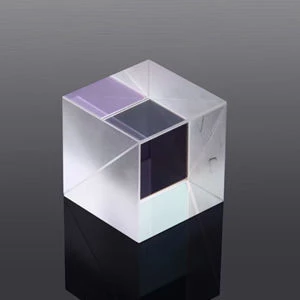

Beamsplitter cube is a prism cemented by two right angle prisms. Compare with beamsplitter plate, beamsplitter cube has the advantages:
- Identical path lengths for both the reflected and the transmitted beams
- The transmitted beam is neither displaced nor deflected.
- Stable and compact.
- Easy operation.
- Easy for mounting/aligning
Non-Polarization Beamsplitter Cube
MOK Optics Co LTD
Specifications
| Material: | N-BK7, UV Fused Silica, H-K9L, SF5, Fused Silica |
|---|---|
| Wavelength Range: | 400 – 1100 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 5 mm |
| Surface Quality: | 40-20 |
| Flatness: | λ/4@633nm |
| Non-polarization Coating: | Tavg/Ravg=50% / 50% ±10% , |Tp-Ts|<10%, |Rp-Rs|<10% |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
