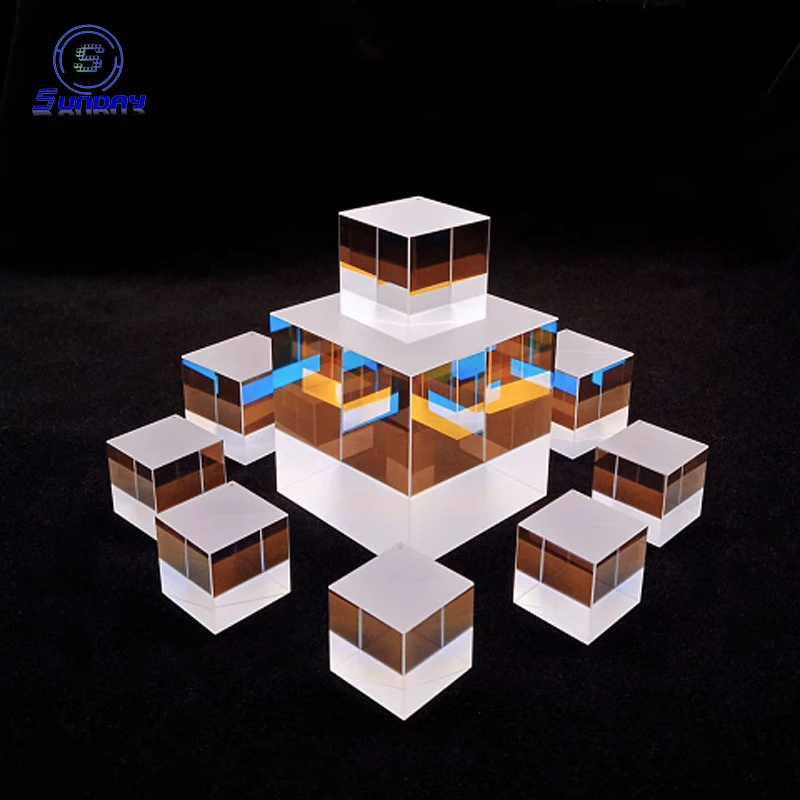

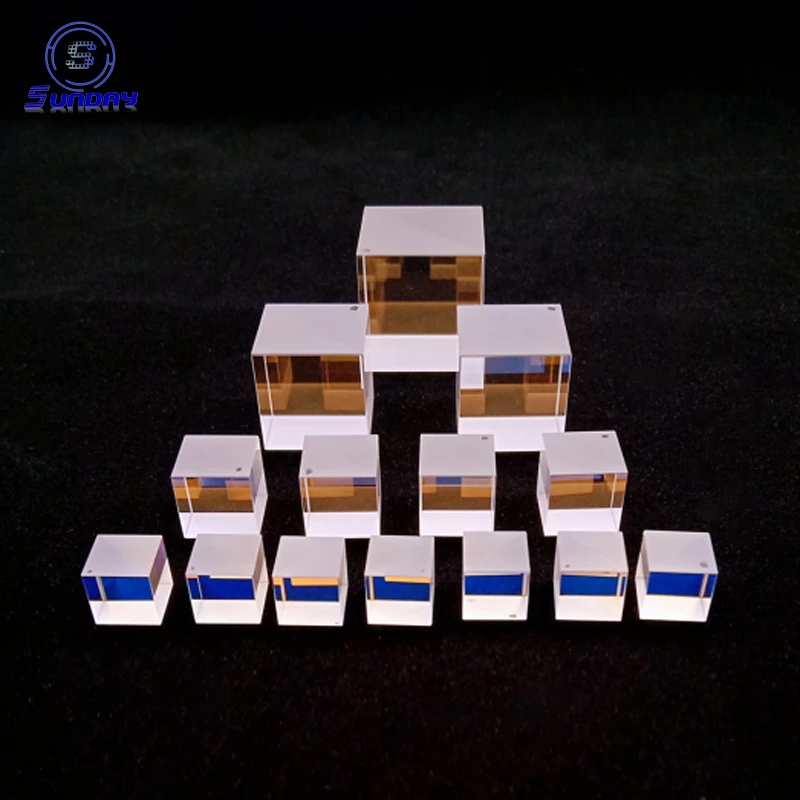

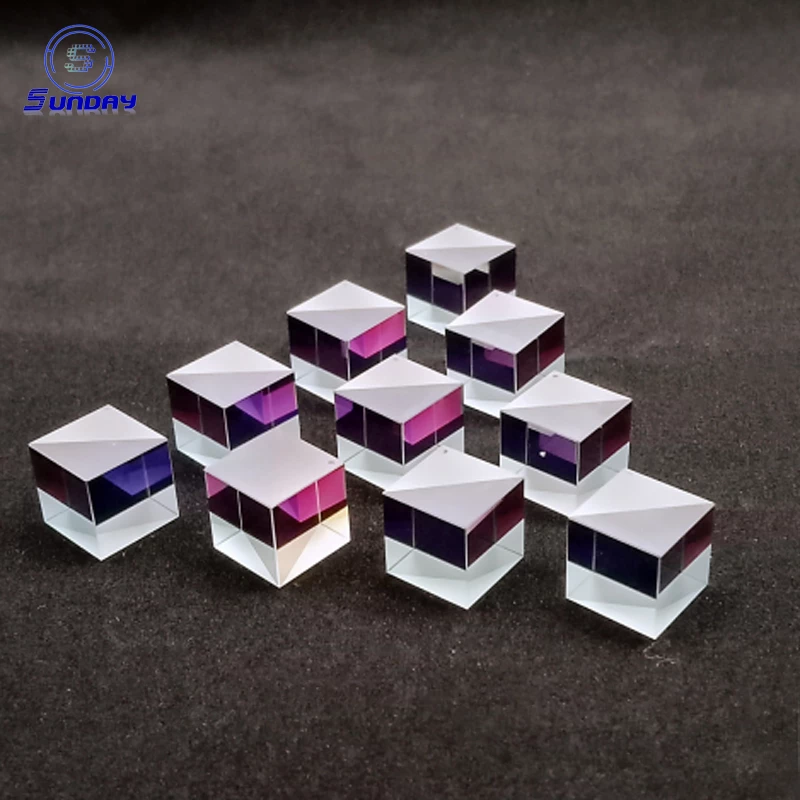

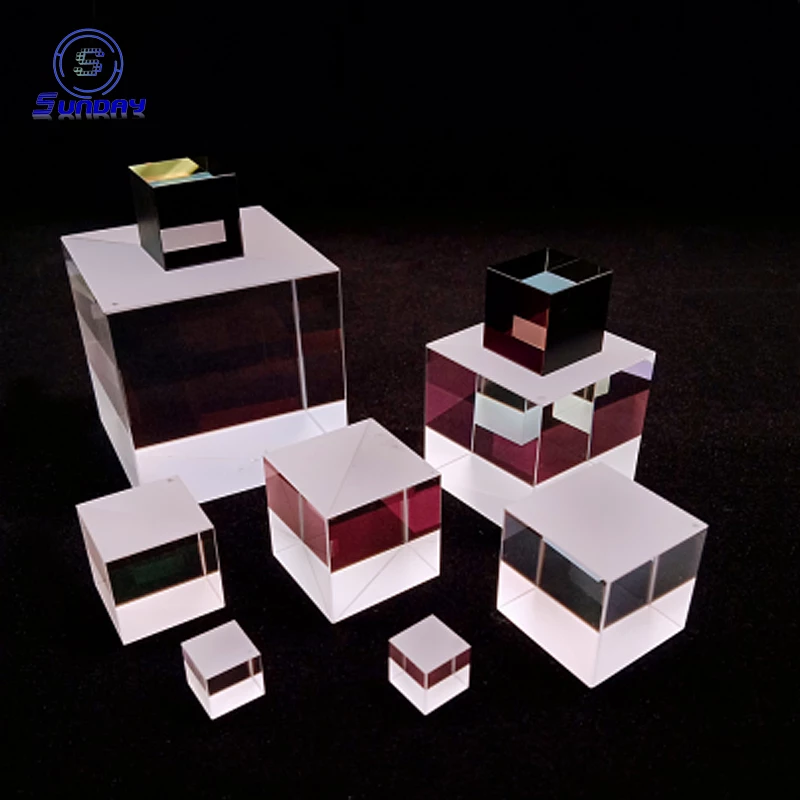

Standards High Precision PBS NPBS Cube in Stock
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Changchun Sunday Optics Co., ltd -
On FindLight:
since 2024
Description
Welcome to Changchun Sunday Optics Co., Ltd, a leading name in the optics industry, renowned for our commitment to quality and precision. Located in the vibrant city of Changchun, China, we specialize in the production of high-quality optical components that meet the diverse needs of our global clientele. Our products are crafted using premium materials such as H-K9L, H-ZF3 glass, and Fused Silica, ensuring exceptional performance and reliability.
Our state-of-the-art manufacturing facility is equipped to produce optical components in a variety of sizes, ranging from 1mm to 50.8mm, with the option for customization to meet specific requirements. We pride ourselves on maintaining stringent quality control measures, with a size tolerance of +0.00/-0.05 and a surface quality rating of 10-5. This ensures that each product not only meets but exceeds industry standards.
At Changchun Sunday Optics, we understand the importance of precision in optical applications. Our products boast a surface flatness of 1/10 lambda at 632.8nm and a beam deviation of less than 1 minute. With an extinction ratio of up to 10000:1 and transmission rates exceeding 97%, our optical components deliver superior performance across a wide range of wavelengths, from 488nm to 1550nm.
Our commitment to excellence extends to our coatings, with typotenuse coated with PBS coating and all input and output surfaces treated with anti-reflective coatings. This meticulous attention to detail ensures that our products offer optimal reflection and transmission properties, making them ideal for high-precision applications. Trust Changchun Sunday Optics Co., Ltd for all your optical component needs, where quality and innovation are at the forefront of everything we do.
Standards High Precision PBS NPBS Cube in Stock
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 488 – 1610 nm |
| Max Beam Deviation: | 1 arcmin |
| Size (Linear Dimension): | 1 mm |
Features
- Material: H-K9L, H-ZF3 glass, Fused Silica
- Available Sizes: 1mm, 5mm, 10mm, 12.7mm, 20mm, 25.4mm, 50.8mm, or customized
- Size Tolerance: +0.00/-0.05
- Surface Quality: 10-5
- Clear Aperture (CA): >90%
- Surface Flatness: 1/10 lambda @ 632.8nm
- Beam Deviation: <1 minute
- Extinction Ratio: 300:1, 1000:1, 10000:1
- Transmission: Tp >97%, Tp >96%; Ts <1%
- Reflection: Rs >99%; Rp <5%
- Wavelength Range: 488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550nm; 450-650, 650-900, 900-1200, 1200-1550, 1500-1610nm
- Laser Damage Threshold: 15 J/cm2 @ 1064nm, 20ns, 20Hz
- Coating: Typotenuse coated with PBS coating, all input and output coated with AR
Applications
- Optical Communication Systems: Ideal for use in fiber optic communication systems due to high transmission and low reflection properties.
- Laser Systems: Suitable for laser applications with a high laser damage threshold of 15 J/cm² at 1064 nm.
- Scientific Research: Used in laboratories for experiments requiring precise beam deviation and high extinction ratios.
- Medical Equipment: Applicable in medical devices that utilize specific wavelengths for diagnostics or treatment.
- Imaging Systems: Enhances performance in imaging systems with its superior surface quality and flatness.
- Industrial Applications: Utilized in industrial settings where robust and reliable optical components are necessary.
- Telecommunications: Supports telecommunications infrastructure with its wide wavelength range and high CA.
- Defense and Aerospace: Suitable for defense and aerospace applications requiring durable and high-performance optics.
Frequently Asked Questions
The product is made from H-K9L, H-ZF3 glass, and Fused Silica.
The available sizes are 1mm, 5mm, 10mm, 12.7mm, 20mm, 25.4mm, 50.8mm, or customized sizes.
The surface quality of the product is 10-5.
The surface flatness is 1/10 lambda at 632.8nm.
The laser damage threshold is 15 J/cm² at 1064nm, 20ns, 20Hz.
The product supports wavelengths of 488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550nm, and ranges of 450-650, 650-900, 900-1200, 1200-1550, 1500-1610nm.
The transmission is Tp > 97% and Tp > 96%; Ts < 1%. The reflection is Rs > 99% and Rp < 5%.
