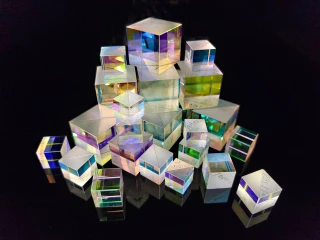

Cube Beamsplitters (Material: Fused Silica)

PBS Cubes are designed to separate high power laser beam polarizations into S and P components. High Energy and broadband options available.

Specifications

Material: N-BK7, CaF2, UV Fused Silica, H-K9L, SF5, Fused Silica
Wavelength Range: 343 – 2100 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 30 mm
Beamsplitter cube is a prism cemented by two right angle prisms. Compare with beamsplitter plate, beamsplitter cube has the advantages: Identical path lengths for both the reflected and the transmitted beams The transmitted beam is neither displaced nor deflected. Stable and compact. Easy operation. Easy for mounting/aligning

Specifications

Material: N-BK7, UV Fused Silica, H-K9L, SF5, Fused Silica
Wavelength Range: 400 – 1100 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 5 mm
Surface Quality: 40-20
Polarizing Beamsplitter (PBS) cubes are used to split random polarized beam into two orthogonal and linear polarized components. S- polarization light gets reflected at 90° angle while p- polarization is transmitted through the cube. Each cube is made by assembling two right angle prisms and a dielectric polarizing beamsplitter ...

Specifications

Material: N-BK7, UV Fused Silica, H-K9L, Fused Silica, Other
Wavelength Range: 343 – 2100 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 30 mm
Extinction Ratio: >1000:1
Material BK7 Grade Aoptical glass Dimension Tolerance ±0.2mm Clear Aperture >90% Flatness λ/4@632.8nm Beam Deviation <3 arc minutes Surface Quality 60/40 Coating Partial reflectance on hypotenuse faceAR coating on all entrances T/R 50/50±5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2 Damage Threshold >500mJ/cm2, 20ns, ...

Specifications

Material: N-BK7, Fused Silica
Wavelength Range: 450 – 1200 nm
Max Beam Deviation: 3 arcmin
Size (Linear Dimension): 20 mm
On FindLight marketplace you will find 4 different Cube Beamsplitters (Material: Fused Silica) from top global suppliers. Compare features, request pricing, and connect instantly with manufacturers — no registration required.
