Description

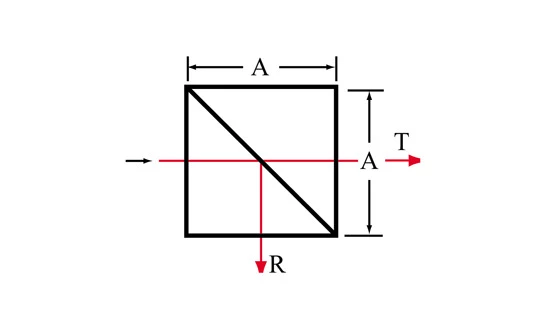

Polarization Beamsplitter Cubes are an essential component in optical systems, designed to split a beam of light into two separate beams with distinct polarization states. These beamsplitters utilize two complementary prisms to achieve this effect, ensuring that the output beam parallel to the input is p-polarized, while the orthogonal output beam is s-polarized. This precise separation of polarization states is crucial for applications requiring high degrees of polarization purity and efficiency.
Constructed from high-quality BK-7 grade A optical glass, these beamsplitter cubes are available in a range of dimensions from 3.2mm to 50.8mm, with tight dimensional tolerances of ±0.2mm. The angular tolerance is maintained at ±3 arc minutes, ensuring minimal deviation and high precision in beam alignment. The surface quality is rated at 60/40 scratch and dig, providing a smooth and clear optical path.
The polarization beamsplitter coating is applied to the hypotenuse of the cube, optimizing the separation of polarization states. Additionally, an anti-reflective (AR) coating is applied to each face, achieving reflectance levels of less than 0.25% per face. This ensures maximum transmittance and minimal loss, with principal transmittance values of Tp>95% and Ts<1%, and principal reflectance values of Rs>99% and Rp<5%. The wavelength range for these beamsplitters spans from 226nm to 2300nm, accommodating a wide variety of optical applications.
At Tower Optical Corporation, we understand that quality is not expensive, it is priceless. We offer next-day shipping for most wavelengths and provide discounts on volume orders of 10 pieces or more. If you have specific requirements, we are happy to provide custom solutions tailored to your needs.
Beamsplitter Cube - BSPB1-10 900-1200nm
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 900 – 1200 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 10 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass for superior performance.
- Precision Dimensions: Available in a range of sizes from 3.2mm to 50.8mm with a dimensional tolerance of ±0.2mm.
- Angular Accuracy: Features an angular tolerance of ±3 arc minutes for precise applications.
- Surface Quality: Scratch and dig specifications of 60/40 ensure a clear and undistorted view.
- Beam Deviation: Maintains a beam deviation of just 3 arc minutes.
- High Extinction Ratio: Offers an extinction ratio greater than 100:1 for effective polarization.
- Optimal Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Wide Wavelength Range: Operates effectively across wavelengths from 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces.
- Customizable Options: Custom versions available to meet specific requirements; contact us for a quote.
- Next Day Shipping: Available for most wavelengths to ensure quick delivery.
- Volume Discounts: Discounts offered on volume orders of 10 pieces or more.
Applications
- Optical Systems: Use in complex optical systems requiring precise polarization control.
- Laser Applications: Ideal for laser beam manipulation and splitting in various laser systems.
- Telecommunications: Suitable for use in fiber optic communication systems for signal routing and management.
- Scientific Research: Utilized in laboratories for experiments involving light polarization and beam analysis.
- Imaging Systems: Enhance imaging systems by providing high-quality beam splitting capabilities.
- Medical Devices: Applicable in medical imaging and diagnostic equipment requiring precise light control.
- Industrial Applications: Used in manufacturing processes that involve laser cutting, welding, or measurement.
- Photography and Cinematography: Improve lighting setups by controlling light polarization and reflection.
Frequently Asked Questions
Beamsplitter Cubes are optical components that split an incoming beam of light into two separate beams.
Beamsplitter Cubes are constructed using two complementary prisms. The output beam that is parallel to the input beam is p-polarized, while the orthogonal output beam is s-polarized.
The wavelength range of the Beamsplitter Cube BSPB1-10 900-1200nm is 900-1200nm.
Yes, custom versions of Beamsplitter Cubes are available on request.
The principal transmittance of the Beamsplitter Cube is Tp>95% and the principal reflectance is Rs>99% and Rp<5%.
