Beamsplitter Cube - BSPB1-15 650-850
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Polarization Beamsplitter Cubes are an essential component in optical systems, designed to split a beam of light into two separate polarized beams. These beamsplitters utilize two complementary prisms to achieve this effect, ensuring that the output beam parallel to the input is p-polarized, while the orthogonal output beam is s-polarized. This precise separation of light is crucial for various optical applications, providing high efficiency and reliability.
Crafted from BK-7 grade A optical glass, these beamsplitters offer exceptional clarity and durability. The material choice ensures minimal distortion and high-quality performance across a wide range of dimensions, from 3.2mm to 50.8mm. The dimensional and angular tolerances are meticulously controlled, with a dimensional tolerance of ±0.2mm and an angular tolerance of ±3 arc minutes, ensuring precision in every piece.
The surface quality of these beamsplitters is maintained at a high standard, with a scratch and dig specification of 60/40. This attention to detail minimizes imperfections, enhancing the overall performance of the beamsplitter. The beam deviation is kept to a minimal 3 arc minutes, and the extinction ratio exceeds 100:1, providing superior separation of polarized light.
With a principal transmittance of Tp>95% and Ts<1%, and a principal reflectance of Rs>99% and Rp<5%, these beamsplitters are optimized for efficiency. The wavelength range spans from 226nm to 2300nm, making them versatile for various optical systems. The polarization beamsplitter coating is applied on the hypotenuse, and an anti-reflective coating ensures R<0.25% per face for all four faces, further enhancing performance.
Beamsplitter Cube - BSPB1-15 650-850
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 650 – 850 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 15 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass for superior performance.
- Precision Dimensions: Available in a range of sizes from 3.2mm to 50.8mm with a dimensional tolerance of ±0.2mm.
- Accurate Angular Tolerance: Maintains an angular tolerance of ±3 arc minutes for precise applications.
- Excellent Surface Quality: Surface quality rated at 60/40 scratch and dig.
- Minimal Beam Deviation: Beam deviation is limited to 3 arc minutes.
- High Extinction Ratio: Extinction ratio greater than 100:1 ensures effective polarization.
- Superior Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Wide Wavelength Range: Operates effectively across wavelengths from 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces.
- Customizable Options: Custom versions available upon request to meet specific requirements.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery.
- Volume Discounts: Discounts offered on orders of 10 pieces or more.
Applications
- Optical Systems: Ideal for use in optical systems requiring separation of polarized light.
- Laser Applications: Suitable for laser applications where specific polarization states are needed.
- Imaging Systems: Enhances imaging systems by providing high extinction ratios and minimal beam deviation.
- Telecommunications: Useful in telecommunications for managing polarized light in fiber optic systems.
- Scientific Research: Applicable in scientific research for experiments involving polarization optics.
- Industrial Applications: Employed in various industrial applications where precise light control is required.
- Custom Solutions: Customizable for specific wavelength ranges and dimensions to meet unique project requirements.
Frequently Asked Questions
A Beamsplitter Cube is a device that splits a beam of light into two separate beams.

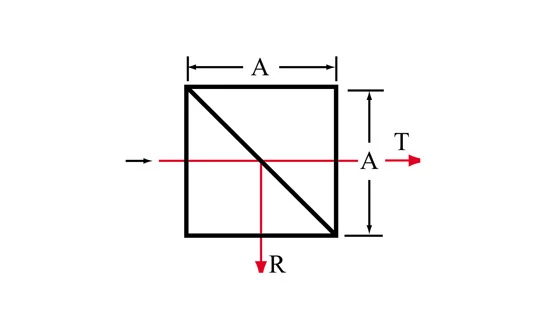

A Beamsplitter Cube works by using two complementary prisms to split the beam of light. The output beam that is parallel to the input beam is p-polarized, while the orthogonal output beam is s-polarized.
The wavelength range of the Beamsplitter Cube is 226nm to 2300nm.
The angular tolerance of the Beamsplitter Cube is ±3 arc minutes.
The pricing of the Beamsplitter Cube varies depending on the size and wavelength range. The prices range from $148 to $203. Discounts are offered on volume orders of 10 pieces or more.
