Description

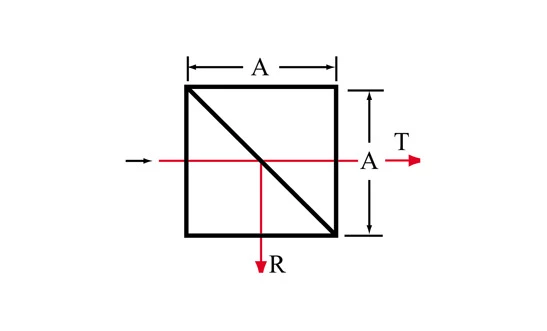

Discover the precision and reliability of our Polarization Beamsplitter Cubes, expertly crafted to meet the highest standards of optical performance. These beamsplitters are ingeniously designed using two complementary prisms, ensuring that the output beam parallel to the input beam is p-polarized, while the orthogonal output beam is s-polarized. This meticulous design guarantees superior performance in a wide range of optical applications.
Our beamsplitter cubes are constructed from BK-7 grade A optical glass, renowned for its clarity and durability. With a dimension range from 3.2mm to 50.8mm, these cubes offer flexibility for various optical setups. The dimensional tolerance of ±0.2mm and angular tolerance of ±3 arc minutes ensure precise alignment and integration into your optical systems. Surface quality is maintained at a high standard with a 60/40 scratch and dig specification, providing clear and undistorted light transmission.
Engineered for optimal performance, these beamsplitters feature a beam deviation of just 3 arc minutes and an impressive extinction ratio of greater than 100:1. The principal transmittance and reflectance values are optimized for maximum efficiency, with Tp>95% and Ts<1%, and Rs>99% and Rp<5%, respectively. The polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for four faces further enhance the optical performance across a broad wavelength range of 226nm to 2300nm.
We offer a variety of models to suit your specific needs, with sizes ranging from 5x5x5mm to 20x20x20mm. Whether you require narrow band wavelengths such as 488nm, 514nm, or 1064nm, or broad band ranges, we have the right solution for you. For orders of 10 pieces or more, we provide attractive volume discounts, and next day shipping is available for most wavelengths. If you have unique requirements, we are pleased to offer custom solutions tailored to your specifications.
.
Beamsplitter Cube - BSPB1-15 1200-1550nm
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 1200 – 1500 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 15 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass, ensuring durability and superior optical performance.
- Versatile Dimension Range: Available in sizes ranging from 3.2mm to 50.8mm to suit various applications.
- Precision Tolerances: Dimensional tolerance of ±0.2mm and angular tolerance of ±3 arc minutes for precise optical alignment.
- Excellent Surface Quality: Surface quality rated at 60/40 scratch and dig, providing clear and accurate optical transmission.
- Minimal Beam Deviation: Beam deviation of only 3 arc minutes for consistent and reliable performance.
- Superior Extinction Ratio: Extinction ratio greater than 100:1, ensuring effective polarization separation.
- High Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Wide Wavelength Range: Operates effectively across a wavelength range of 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces, enhancing optical efficiency.
- Customizable Options: Custom versions available to meet specific requirements; contact us for a quotation.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery for urgent needs.
- Volume Discounts: Discounts offered on volume orders of 10 pieces or more, providing cost savings for bulk purchases.
Applications
- Optical Systems: Ideal for use in optical systems requiring polarization separation.
- Laser Applications: Suitable for laser applications where beam splitting is necessary.
- Telecommunications: Used in telecommunications for signal processing and routing.
- Scientific Research: Applicable in scientific research for experiments involving polarized light.
- Imaging Systems: Utilized in imaging systems to enhance image quality by controlling light polarization.
- Industrial Inspection: Employed in industrial inspection systems for precise measurement and analysis.
- Biomedical Instruments: Used in biomedical instruments for diagnostics and imaging.
- Photography: Enhances photographic techniques by managing light polarization.
- Custom Optical Solutions: Can be customized for specific optical solutions as per client requirements.
Frequently Asked Questions
The Beamsplitter Cube - BSPB1-15 1200-1550nm is a polarization beamsplitter cube that splits an input beam into two output beams, one p-polarized and the other s-polarized.
The Beamsplitter Cube works by using two complementary prisms to split the input beam into two output beams, one p-polarized and the other s-polarized.
The wavelength range of the Beamsplitter Cube is 1200-1550nm.
The angular tolerance of the Beamsplitter Cube is ±3 arc minutes.
The pricing of the Beamsplitter Cube varies based on the size and wavelength range. The prices range from $148 to $209.
