Description

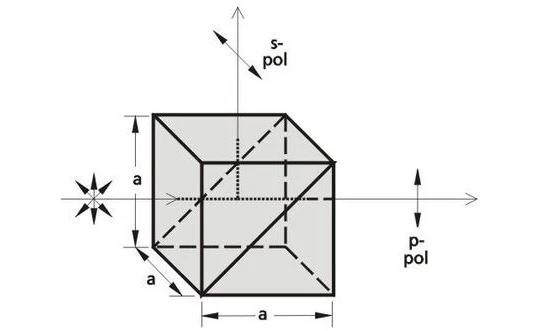

Cube Polarizing Beamsplitters are designed for popular laser wavelengths and utilize a polarizing film coated on the internal face of a cube beamsplitter. These beamsplitters make use of thin film polarizers to achieve polarization, deviated by a 90° angle.
They are optimized for specific wavelengths, providing superior performance for various laser applications. The cube design offers durability and convenience in optical setups.
Cube Polarizing Beamsplitters 430-1105-M2Ps
Specifications
| Material: | UV Fused Silica |
|---|---|
| Wavelength Range: | 308 – 308 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 10 mm |
| Surface Flatness @ 633nm: | lambda/4 |
| Clear Aperture: | 90% of the face size |
| Beam Deviation: | <3 arcmin |
| Dimension Tolerance: | ±0.3 mm |
Download Data Sheet
Features
- Durable and convenient cube design
- Optimized for popular laser wavelengths
- Polarizing film coated on internal face
- Utilizes thin film polarizers for polarization at a 90° angle
- Provides superior performance for laser applications
Applications
- Laser systems and devices
- Laser beam steering and polarization control
- Research and spectroscopy applications
- Interferometry and polarization analysis
- Optics and photonics experiments
Frequently Asked Questions
What is a UV Fused Silica Cube Polarizing Beamsplitter?
A UV Fused Silica Cube Polarizing Beamsplitter is a device that splits a beam of light into two separate beams, with one beam being polarized in one direction and the other beam being polarized in a perpendicular direction.
What is the advantage of using a cube polarizing beamsplitter?
Cube polarizing beamsplitters can be optimized for a particular wavelength to give superior performance for laser applications.
What is the typical transmission curve for the UV Fused Silica Cube Polarizing Beamsplitter at 1064 nm?
The typical transmission curve for the UV Fused Silica Cube Polarizing Beamsplitter at 1064 nm is shown in the graph provided in the product description.
Can the cube polarizing beamsplitter be customized for other wavelengths or sizes?
Yes, please contact EKSMA Optics if you need polarizing beamsplitters of other wavelengths, other sizes or other configurations.
What is the price range for the UV Fused Silica Cube Polarizing Beamsplitter?
The price range for the UV Fused Silica Cube Polarizing Beamsplitter varies depending on the size and whether it is mounted or unmounted. Please refer to the catalogue number and price list provided in the product description.
