Description
XQ7230A1 is a large diameter special fiber splicing system that based on electric heat source as heat source, it is designed independently by OSCOM Technology. The system is mainly used in splicing and cleaving fiber bundles in the process of fiber combiners manufacture, which can realize the splicing of 2x1, 3x1, 7x1, (6+1)x1, (18+1)x1, 19x1 tapering zone of fiber combiners and output fiber, etc. XQ7230A1 integrates the function of ultrasonic on line cleave, It can rapidly and steadily cleave and splice the fiber bundles once more, which enhance the efficiency of fiber combiners manufacture.

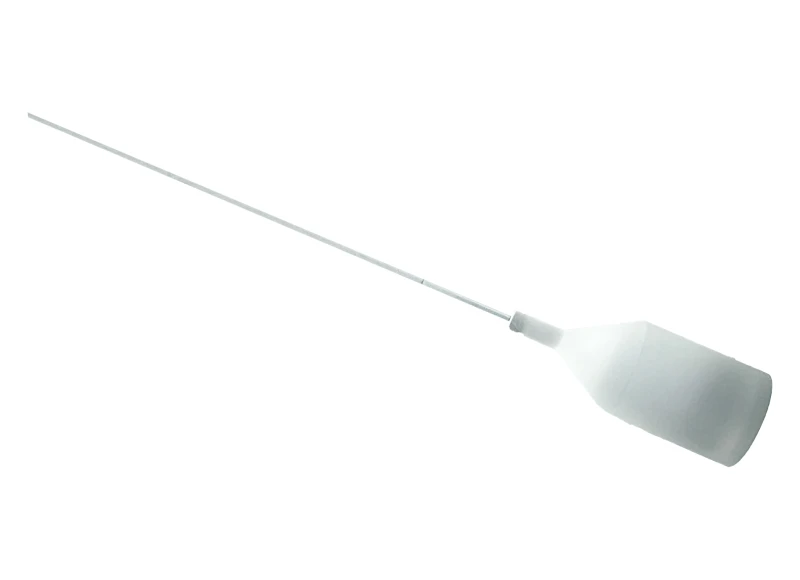

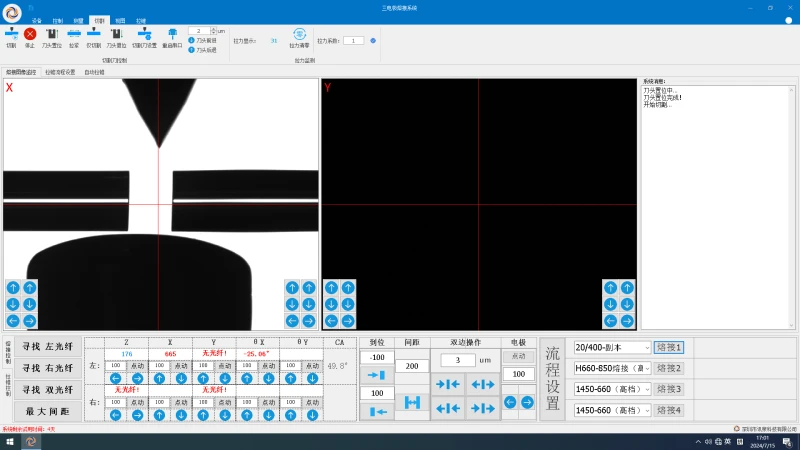

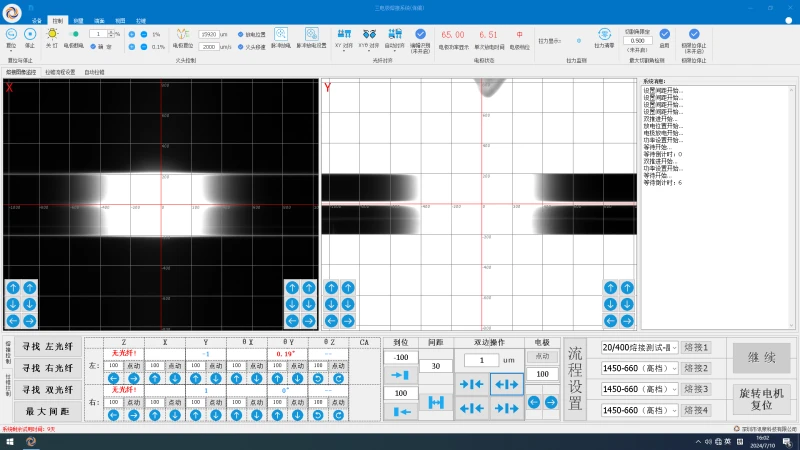

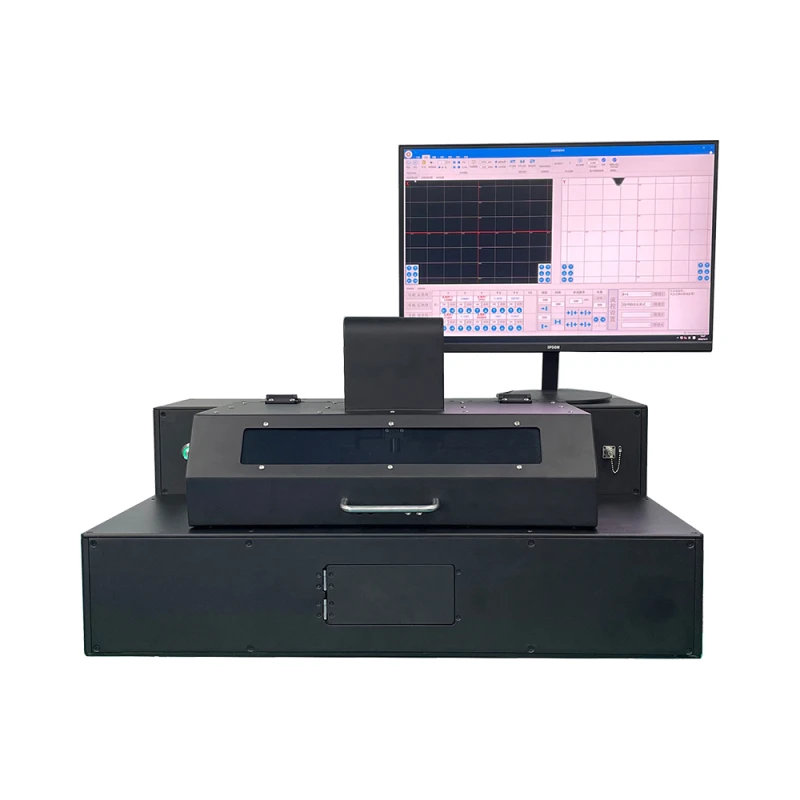

OSCOM TECHNOLOGY - Special Fiber Splicer - XQ7230A1
Specifications
| Supported Fiber Diameter: | 125 – 2000 um |
|---|---|
| Heat Source: | Electric heat source |
| Heat Source Temperature Field: | 800-1800℃ |
| Heat Source Position: | Z-axis movement |
| Fiber Splicing Range: | 125-2000μm |
| CCD View: | 2.0x1.6mm or customizable |
| View Imaging: | Independent X/Y axis side imaging |
| X/Y Axis Alignment Accuracy: | 0.1μm |
| X/Y Axis Movement Range: | ≥11mm |
| θ Axis Alignment Accuracy: | 0.1° |
| θ Axis Alignment Range: | ±4.5° |
| Z Axis Accuracy: | 0.1μm |
| Z Axis Movement Range: | 150mm (75mm on each side) |
| Alignment Method: | Cladding automatic alignment |
| Clamping Method: | Magnetic adhesion |
| Splicing Mode: | Standard splicing/User-defined splicing |
| Tapering Type: | Unilateral tapering/Bilateral tapering |
| Tapering Speed: | 0-2000μm/s |
| Tapering Length: | Same direction 75mm/Reverse 150mm |
| Cleave Type: | Flat |
| Fiber Cleave Range: | 125-1500μm |
| Fiber Bundle Cleave Range: | 125-1500μm |
| Fiber Cleave Angle: | ≤0.5° |
| Fiber Bundle Cleave Angle: | ≤2° |
| Cleave Method: | Ultrasonic cleaving |
| Tension Range: | Max: 5000gf |
| Operating Environment: | Temperature: 0-40℃/Humidity: 5-95%RH |
| Operating Power Supply: | AC100-240V/50-60Hz |
| Dimensions (LxWxH): | 800x550x450mm |
| Weight: | 70Kg |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Can cleave, taper and splice.
- Adjustable size electric heat source.
- Long stroke, can meet the needs of long taper waist taper.
- Has a rich function library, which can be realized by simple programming.
Applications
- Industrial Lasers
- Optical Fiber Communication
- Optical Fiber Sensing
- Biomedicine
- Laser Radar
- Military Industry
