Precision Fiber Coil Winding Machines

Did You Know?

Did you know that fiber coil winding machines can wind up to 50 kilometers of fiber optic cable onto a single spool? These machines are essential for fiber optic cable manufacturers and allow for efficient, high-quality production. Fiber coil winding machines use a variety of techniques to ensure precise winding, including adjustable tension controls and motorized rollers. This results in uniform winding and reduced fiber breakage during the winding process. In addition to efficiency and quality improvements, using a fiber coil winding machine can also reduce labor costs. With automated winding capabilities, operators can spend less time on manual tasks and more time on other important tasks. When choosing a fiber coil winding machine, it's important to consider factors such as the size and type of cable being wound, required winding speed, and automation options. By selecting the right machine, manufacturers can optimize their production processes and achieve better results. Overall, fiber coil winding machines are a critical component of the fiber optic cable manufacturing process and play a key role in producing the high-speed, reliable connectivity that we rely on in our daily lives.

Frequently Asked Questions

A fiber coil winding machine is a device used to wind fiber optic cables onto spools or reels.

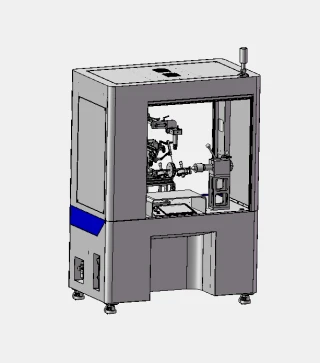

Fiber Coil Winding Machines for Precision Coiling

Fiber Coil Winding Machines are specialized systems designed to wind optical fibers onto bobbins, mandrels, or coil forms under controlled tension and geometry. They are used to build fiber delay lines, fiber gyroscope coils, sensing coils, and compact fiber storage modules while preserving low loss and stable polarization properties.

Typical Specifications and Capabilities

On FindLight, Fiber Coil Winding Machines span compact benchtop units to semi-automated production platforms. Key parameters to compare include:

  • Supported fiber types: SM, PM, MM, specialty fibers (e.g., erbium-doped, polarization-maintaining, hollow-core).
  • Mandrel and coil size: Minimum and maximum winding diameter, coil height, and supported coil geometries (pancake, quadrupole, octupole).
  • Tension control: Closed-loop tension range (typically 5–200 g), tension stability, and feedback method (load cell, dancer arm, motor current).
  • Positioning accuracy: Linear and rotary resolution, layer-to-layer pitch accuracy, and maximum winding speed (RPM or m/min).
  • Spooling and payoff: Bare fiber vs. buffered fiber handling, fiber payout control, and automatic traverse mechanisms.
  • Process control: Recipe-based winding, programmable layer patterns, dwell and splice positions, and integrated inspection or logging.
  • Environmental options: Compatibility with temperature-stabilized or low-vibration setups when winding coils for precision interferometry or gyroscopes.

Many Fiber Coil Winding Machines also support automated epoxy dispensing or coil fixing steps, as well as integration with fiber fusion splicers and proof testers for in-line process chains.

Use Cases in R&D and Production

Typical applications include fiber optic gyroscope coils, distributed sensing coils (DTS/OTDR), delay line modules in microwave photonics, high-power fiber laser delivery coils, and compact storage coils for fiber management in test racks.

Buyer Guidance on FindLight

When evaluating Fiber Coil Winding Machines, define the required fiber type, target coil geometry, acceptable bend radius, and tension limits based on your optical budget and reliability requirements. Compare datasheets for positioning resolution, maximum coil size, supported automation features, and interface options (PC software, fieldbus, local HMI).

Use FindLight to review multiple Fiber Coil Winding Machines side by side and request technical quotations directly from manufacturers and distributors. No registration is required to contact suppliers, enabling rapid clarification of specifications, custom fixture options, and integration with your existing fiber processing line.
