Precision Fiber Splicer Systems on FindLight

Did You Know?

Modern core-alignment fusion splicers routinely achieve splice losses below 0.02 dB by imaging the fiber cores with CCD/CMOS cameras and applying precision arc-discharge control based on real-time feedback. A frequent misconception is that matching only the cladding diameters is sufficient; in reality, mode-field diameter, core concentricity, and even dopant diffusion during the arc strongly influence splice loss, especially for specialty fibers. For polarization-maintaining fibers, the splicer must also resolve and rotate the stress rods to align the slow (or fast) axes within a few degrees, otherwise extinction ratio can degrade by >10 dB even if insertion loss remains low.

Related Resources

Frequently Asked Questions

A fiber splicer is a device used to permanently join two optical fibers with minimum insertion loss and back reflection. Fusion splicers align the fiber cores using imaging systems (typically CCD/CMOS cameras) and high-precision actuators, then apply an electric arc to melt and fuse the glass ends, forming a low-loss, mechanically stable joint.

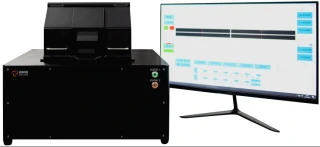

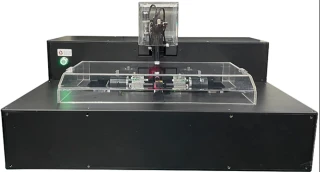

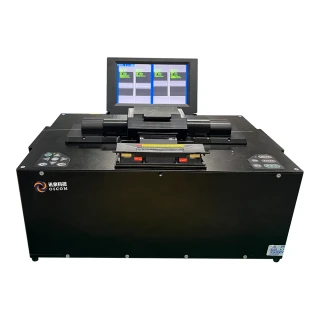

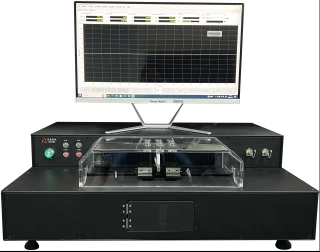

Industrial Fiber Splicer Systems for Production and R&D

A Fiber Splicer is a precision tool used to join two optical fibers with minimal insertion loss and back reflection. On FindLight you can evaluate multiple Fiber Splicer models suited for telecom networks, fiber lasers, sensors, and laboratory prototyping.

Key Types and Typical Specifications

Most Fiber Splicer units fall into two main categories: fusion splicers and mechanical splicers. Fusion Fiber Splicer systems use an electric arc or localized heating to weld glass ends, while mechanical units use alignment fixtures and index-matched gel. Fusion units dominate permanent installations and high-power applications.

Typical Fiber Splicer specifications you will encounter include:

  • Supported fiber types: SMF, MMF, PM, EDF, large-mode-area, ribbon fiber

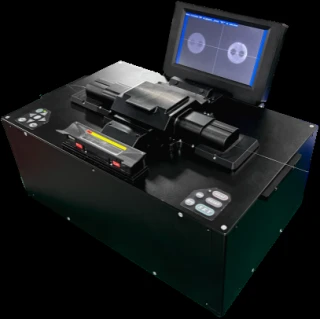

  • Cladding diameter range: often 80–400 µm, with specialty Fiber Splicer models for 600–1250 µm
  • Splice loss: e.g., 0.02–0.05 dB (single-mode), 0.01–0.03 dB (multimode)
  • Return loss: typically < -60 dB for telecom-grade fusion splices
  • Alignment method: core alignment (PAS), cladding alignment, or fixed V-groove
  • Heating and protection: integrated heat-shrink oven, programmable heating profiles
  • Cycle time: splice + heat times from a few seconds up to tens of seconds
  • Environmental rating: portable, battery-powered Fiber Splicer units vs. benchtop systems

Use Cases Across Telecom, Sensing, and Manufacturing

An appropriate Fiber Splicer is critical for backbone and access fiber deployment, fiber laser assembly, interferometric sensors, medical probes, and photonics packaging. R&D labs rely on flexible Fiber Splicer platforms to prototype devices, taper fibers, or join dissimilar fibers with controlled offsets and angles.

Buyer Guidance on FindLight

When selecting a Fiber Splicer, compare core parameters such as supported fiber diameters, alignment precision, estimated splice loss, portability, and available splice programs for specialized fibers (e.g., PM or large-mode-area). Check whether the Fiber Splicer integrates with your existing cleavers, holders, and inspection microscopes.

On FindLight you can review detailed datasheets for each Fiber Splicer, shortlist suitable models, and request quotes or technical clarifications directly from multiple vendors. No registration is required to submit RFQs, allowing you to quickly benchmark pricing, lead time, and support options for your specific manufacturing or research workflow.
