Description

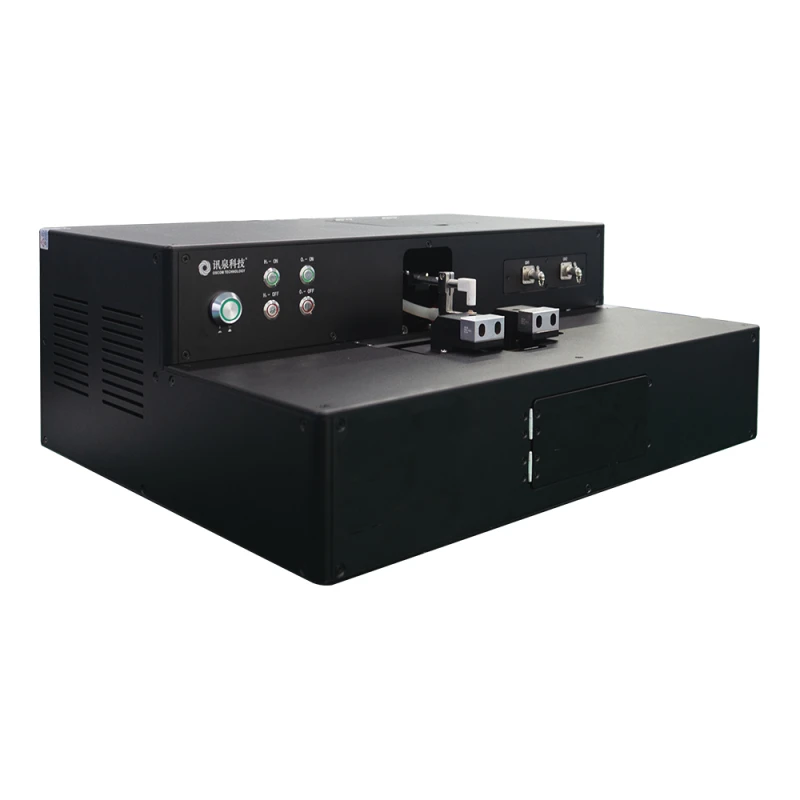

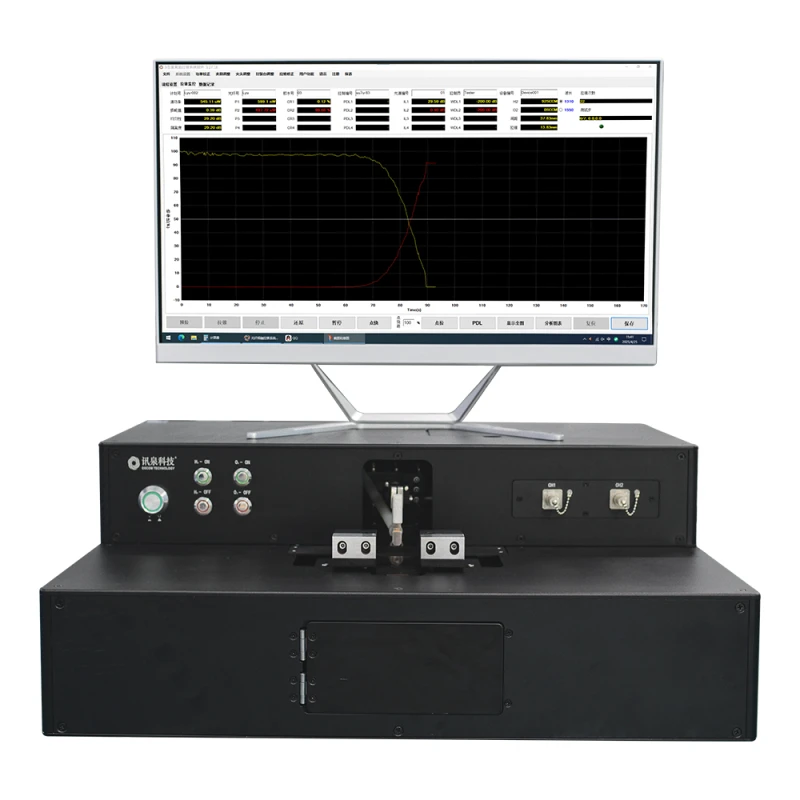

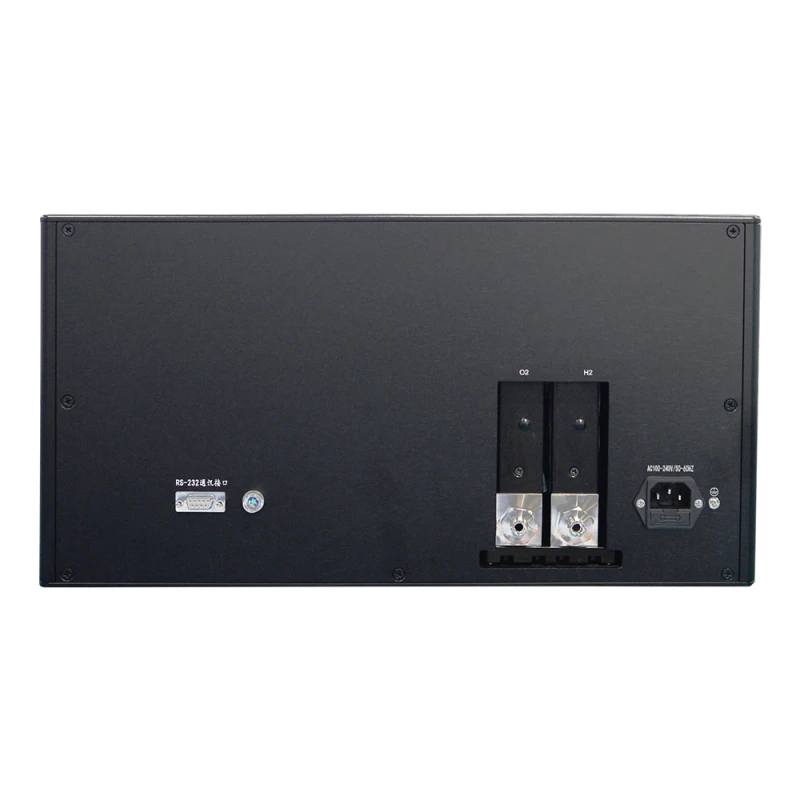

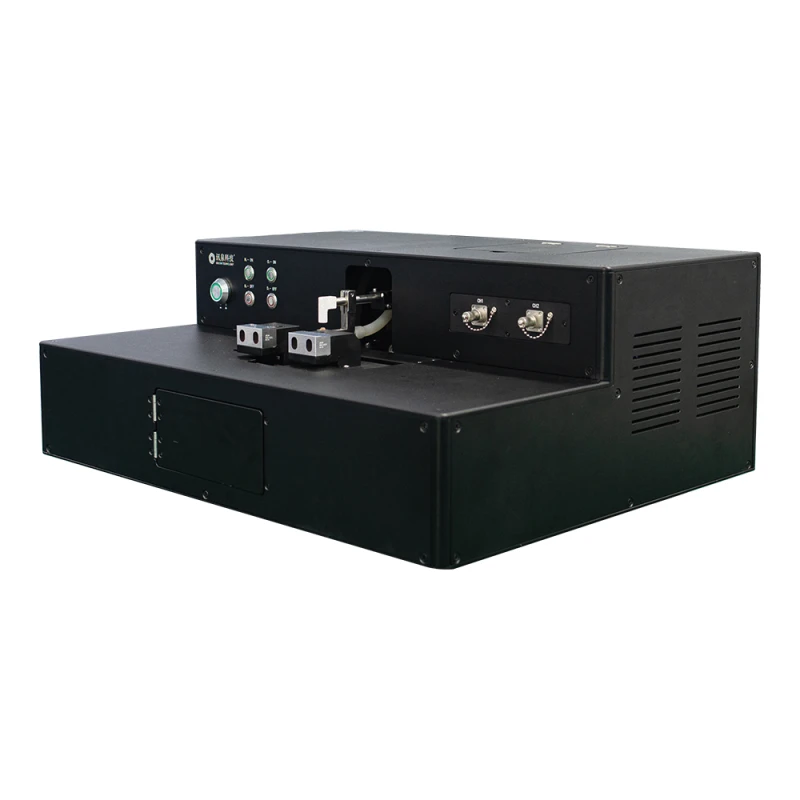

XQ7140 is used mainly for manufacturing high and low power optical fiber combiner, including (1+1)x1 side-pump, (2+1)x1, (6+1)x1, 7x1 end-pump, etc. It is fit greatly for the usage habits of users and very suit for mass production and manufacturing of high and low power optical fiber combiner. XQ7140 is stable, reliable and easy to use.

OSCOM TECHNOLOGY - Optical Combiner Fiber Taper - XQ7140

Visit the Shenzhen Oscom Technology Co., Ltd Store

Specifications

Parameters: XQ7140
Tapering Spacing: 18-70/18-100mm (Customization)
Heater Scan Width: ±20mm
Unilateral Tapering Speed: 0-1000μm/s
Fiber Holder Movement Resolution: 1.6μm
Heater Left & Right Movement Resolution: 1.2μm/step
Packaging Stage Movement Resolution: 2.5μm/step
Hydrogen Flow Range: 0-300sccm
Oxygen Flow Range: 0-100sccm
Detector Type: InGaAs/Si
Wavelength Range: 800-1700/400-1100nm
Optical Power Detection Dynamic Range: -60-+3dBm
Optical Power Measurement Resolution: 0.01dB
Operating Environment: Temperature: 23±3℃/Humidity: 50-70%RH
Operating Power Supply: AC100-240V/50-60Hz/5A
Dimensions (LxWxH): 610x496x230mm
Weight: 53Kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Versatile Application: The XQ7140 Optical Combiner Fiber Taper is ideal for manufacturing both high and low power optical fiber combiners, including configurations like (1+1)x1 side-pump, (2+1)x1, and (6+1)x1, making it suitable for a wide range of user needs.
  • Customizable Tapering Spacing: Offers tapering spacing options of 18-70mm or 18-100mm, allowing customization to meet specific requirements.
  • Precision Movement: Features precise fiber holder movement resolution of 1.6μm and heater left & right movement resolution of 1.2μm/step for accurate fiber alignment.
  • Efficient Gas Flow Control: Hydrogen flow range of 0-300 sccm and oxygen flow range of 0-100 sccm ensure optimal tapering conditions.
  • Wide Wavelength Range: Supports a wavelength range of 800-1700nm and 400-1100nm, accommodating various optical applications.
  • Dynamic Optical Power Detection: Offers an optical power detection dynamic range of -60 to +3dBm with a measurement resolution of 0.01dB for precise power monitoring.
  • Stable Operating Environment: Designed for operation in temperatures of 23±3℃ and humidity levels of 50-70% RH, ensuring consistent performance.
  • Universal Power Supply: Operates on an AC100-240V/50-60Hz/5A power supply, making it compatible with global power standards.
  • Compact and Robust Design: With dimensions of 610x496x230mm and a weight of 53Kg, the XQ7140 is both compact and sturdy, suitable for various industrial settings.
  • Advanced Configuration Options: Available in models XQ7141, XQ7142, and XQ7143, each offering specific configurations like polarization maintaining combiners and ceramic separated heaters for enhanced performance.

Applications

  • Manufacturing High and Low Power Optical Fiber Combiner: The XQ7140 is primarily used for creating high and low power optical fiber combiners, including configurations like (1+1)x1 side-pump, (2+1)x1, (6+1)x1, and 7x1 end-pump.
  • User-Friendly and Suitable for Mass Production: Designed to fit the usage habits of users, the XQ7140 is highly suitable for mass production and manufacturing of high and low power optical fiber combiners.
  • Stable and Reliable: The XQ7140 offers stable and reliable performance, ensuring ease of use.
  • Technical Versatility: With customizable tapering spacing, a wide heater scan width, and precise movement resolutions, the XQ7140 provides technical versatility for various applications.
  • Environmental Compatibility: Operates efficiently within a temperature range of 23±3℃ and humidity of 50-70% RH.
  • Power Supply Flexibility: Compatible with AC100-240V/50-60Hz/5A power supplies, allowing for a broad range of operating environments.
  • Configuration and Type Selection: Choose from models XQ7141, XQ7142, and XQ7143, each offering different configurations such as polarization maintaining combiner and various fiber holders.

Frequently Asked Questions

What is the XQ7140 Optical Combiner Fiber Taper used for?
The XQ7140 is mainly used for manufacturing high and low power optical fiber combiners, including configurations like (1+1)x1 side-pump, (2+1)x1, (6+1)x1, and 7x1 end-pump.
What are the tapering spacing options for the XQ7140 fiber taper?
The tapering spacing for the XQ7140 can be customized between 18-70mm and 18-100mm.
What is the operating environment required for the XQ7140 taper?
The XQ7140 operates in an environment with a temperature of 23±3℃ and humidity between 50-70% RH.
What is the power supply requirement for the XQ7140 fiber taper?
The XQ7140 requires an AC power supply of 100-240V, 50-60Hz, and 5A.
What is the weight and dimensions of the XQ7140?
The XQ7140 weighs 53 kg and has dimensions of 610x496x230mm.
What is the optical power detection dynamic range for the XQ7140?
The optical power detection dynamic range for the XQ7140 is -60 to +3 dBm.
What is the wavelength range that the XQ7140 can detect?
The XQ7140 can detect wavelengths in the range of 800-1700nm and 400-1100nm.

Got more questions? Use the inquiry form to ask the supplier directly.
