Description

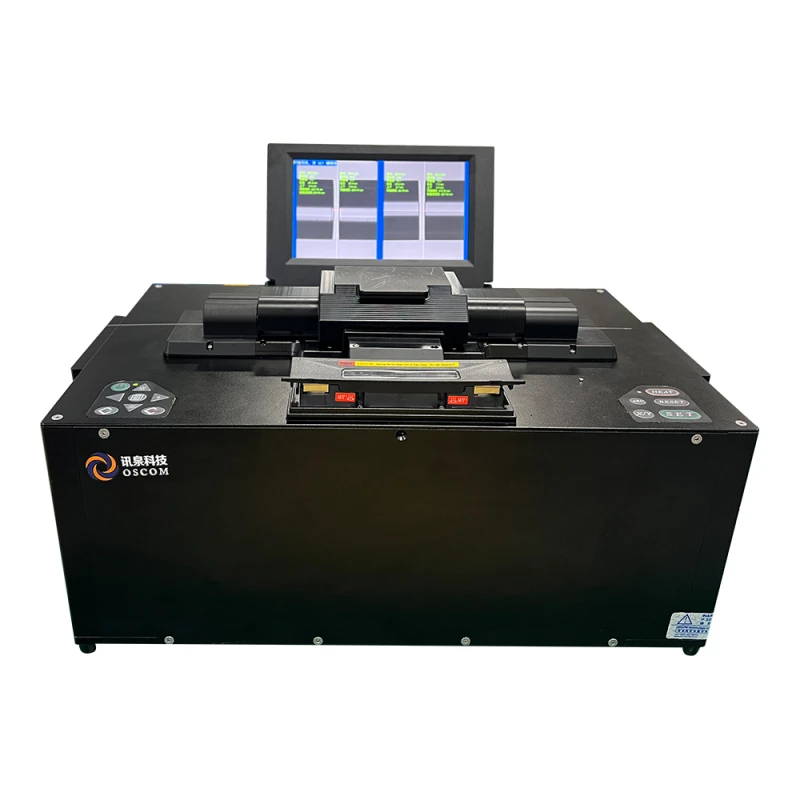

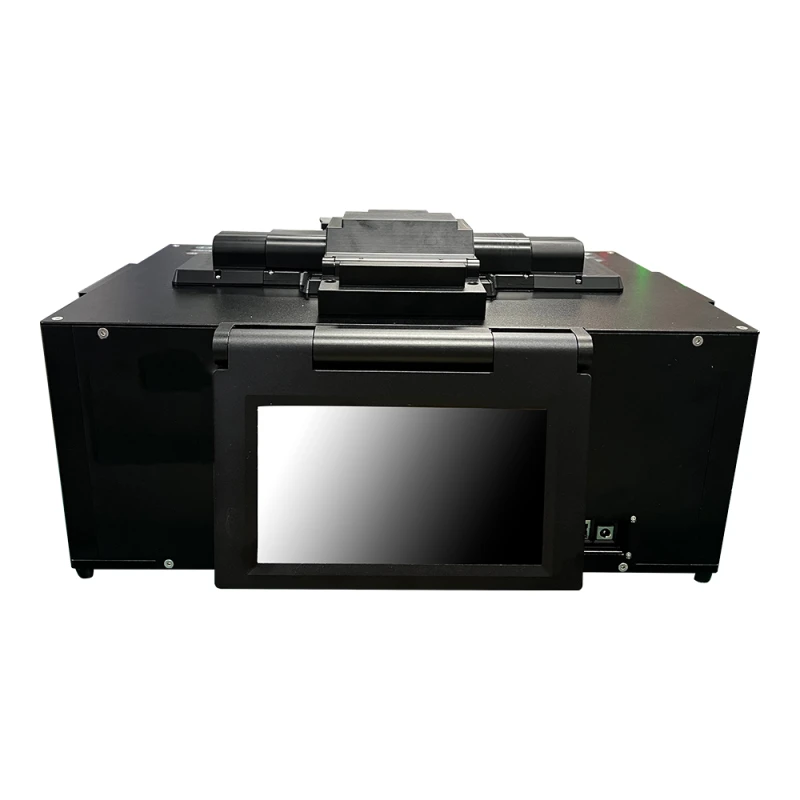

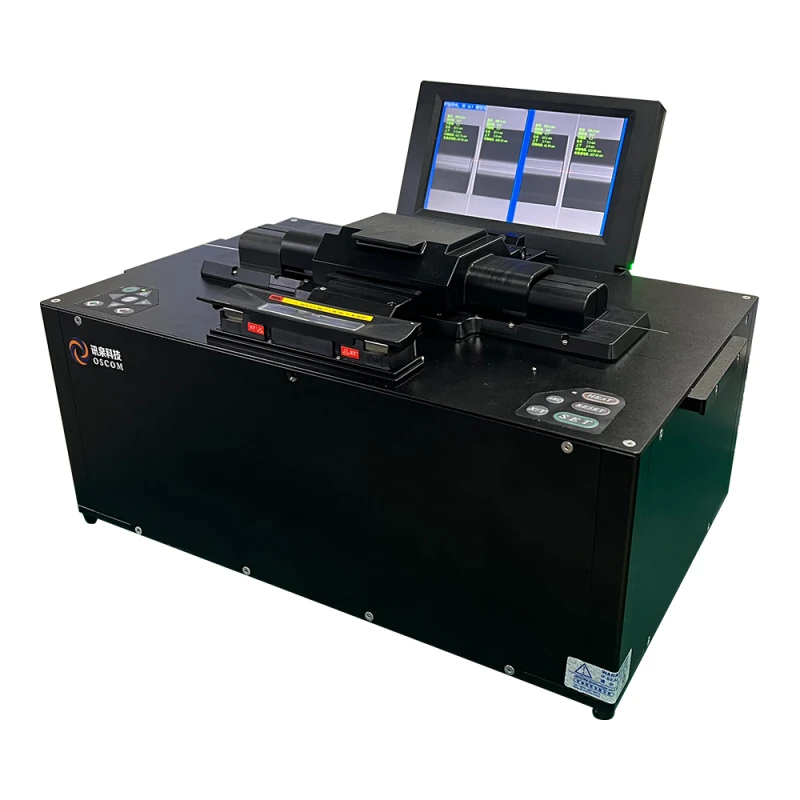

XQ7260A is a large-core fiber splicer which is designed independently by OSCOM Technology. It’s heat source is an electric arc. It can splice quartz fiber, large core fiber and special fiber. At the same time, different specifications of optical fiber holders can be replaced to meet the splicing of fiber with different core diameters.
OSCOM TECHNOLOGY - Large Diameter Fiber Splicer - XQ7260A
Specifications
| Parameters: | XQ7260A |
|---|---|
| Application Of Optical Fiber: | Single mode/Multi-mode/Special fiber |
| Left/Right Holder Motion Length: | 0-3mm |
| Acceptable Size (Coating): | ＜1200μm (Customize according to user needs) |
| Acceptable Size (Cladding): | ≤500μm (Customize according to user needs) |
| Splicing Time: | 15s (Typical) |
| Optical Fiber Splicing Loss: | ≤0.03dB Typical, Special optical fibers ≤0.05dB |
| Length Of Heating Table: | ≤60mm |
| Temperature Of Heating Table: | ≤240° (Adjustable) |
| Splicing Mode: | Manual splicing/Automatic splicing |
| Display Size: | 7.0 inch high resolution color LCD display |
| Optical Fiber Image Magnification: | 7.45 times |
| CCD Field Of View: | 644x483 (Customize according to user needs) |
| Alignment Mode: | Cladding alignment |
| Splicing Procedure: | MAX 100 edit parameters |
| Working Environment: | Temperature: 0-40℃/Humidity: 5-95%RH |
| Power Supply: | 12V power adapter |
| Dimensions (LxWxH): | 353x273x209mm |
| Weight: | 10.4Kg |
Download Data Sheet
Features
- Low splicing loss.
- High splicing quality.
- Artificial intelligence touch screen.

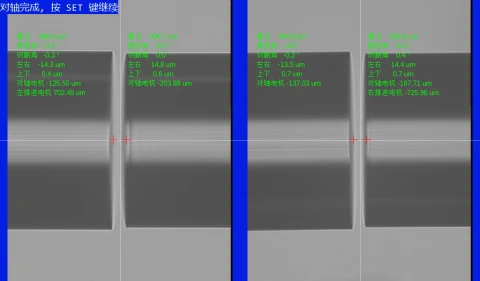

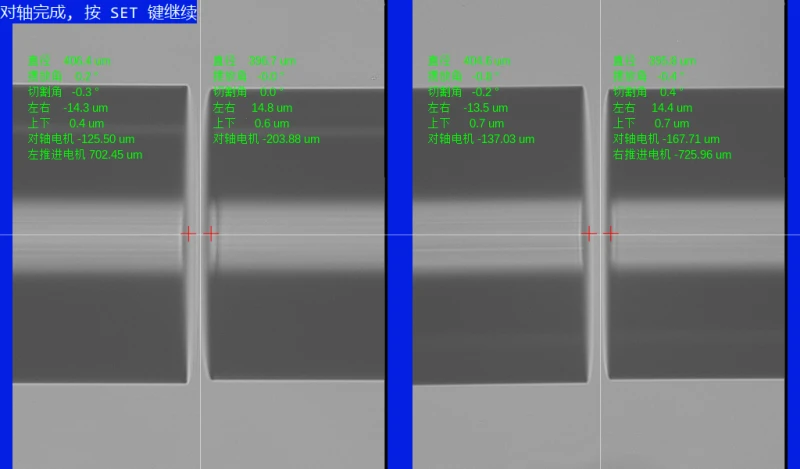

- Visual fiber end face imaging system.
Applications
- Industrial Lasers
- Optical Fiber Communication
- Optical Fiber Sensing
- Biomedicine
- Laser Radar
- Military Industry
Frequently Asked Questions
What is the XQ7260A Large Diameter Fiber Splicer?
The XQ7260A is a large-core fiber splicer designed by OSCOM Technology. It uses an electric arc as its heat source and can splice quartz fiber, large core fiber, and special fiber.
What types of optical fibers can the XQ7260A splice?
The XQ7260A can splice single mode, multi-mode, and special fibers.
What is the typical splicing time for the XQ7260A?
The typical splicing time for the XQ7260A is 15 seconds.
What is the optical fiber splicing loss for the XQ7260A?
The typical optical fiber splicing loss is ≤0.03dB, while for special optical fibers it is ≤0.05dB.
What are the dimensions and weight of the XQ7260A?
The dimensions of the XQ7260A are 353x273x209mm, and it weighs 10.4kg.
What is the display size of the XQ7260A?
The XQ7260A features a 7.0 inch high resolution color LCD display.
What is the power supply requirement for the XQ7260A?
The XQ7260A requires a 12V power adapter for its power supply.
