How do typical fiber polishing machines work and what are their key process steps?

Most fiber polishing machines are pneumatically or mechanically loaded fixtures that press ferrules or fiber arrays against a rotating or orbital polishing platen with defined pressure, speed, and time. A typical process uses a sequence of abrasive grades (e.g., from 9 µm down to 0.02 µm) combined with specific motions, under controlled pressure and lubrication, to progressively refine geometry and surface roughness until the target interferometric specifications are met.

What are the main types of fiber endface geometries (PC, UPC, APC) and how does polishing differ between them?

Physical Contact (PC) and Ultra Physical Contact (UPC) geometries use a convex spherical endface with different roughness and return loss targets, while Angled Physical Contact (APC) adds an 8°–9° endface tilt to reduce back reflection further. APC polishing requires angle‑specific fixtures and polishing films that maintain the defined apex offset and angle tolerance, whereas PC/UPC polishing focuses mainly on radius of curvature, fiber undercut/overhang, and surface roughness control.

Which technical parameters should I evaluate when selecting a fiber polishing machine or fixture?

Key parameters include the number of channels per fixture, ferrule or connector types supported (e.g., LC, SC, MPO/MTP, custom), pressure control method, platen speed range, and available polishing patterns (orbital, figure‑8, random). You should also review endface geometry capability (radius tolerance, apex offset, fiber height), process repeatability, support for multi‑fiber arrays, and compatibility with your preferred abrasive films and slurries.

What specifications matter most when choosing polishing films, pads, and consumables?

Critical specs include abrasive type (diamond, alumina, silicon carbide), grit size progression, backing material (polyester film vs. flexible pads), and whether the product is designed for wet or dry use. For high‑performance connectors and fibers, look for films specified for achieving particular roughness values (Ra/Rq), verified lot‑to‑lot consistency, and compatibility with your connector material (zirconia ferrules, glass, stainless steel, or specialty fibers).

What are typical lead times and customization options for fiber polishing equipment and consumables, and what drives pricing?

Standard polishing films and common connector fixtures are often available from stock or within 1–2 weeks, while custom fixtures for non‑standard ferrules, arrays, or specialty fibers can take 4–8 weeks depending on mechanical complexity. Pricing is mainly driven by channel count, automation level (programmable recipes, pressure feedback, load monitoring), mechanical tolerances of fixtures, and the precision and lifetime of consumables such as diamond films and pads.

How can I find, compare, and request quotes for polishing products on FindLight without creating an account?

On FindLight, navigate to Optics Manufacturing → Fiber Optics → Polishing to filter products by type (machines, fixtures, films, pads) and key specs such as connector compatibility, channel count, and abrasive type. You can also compare parameter tables of various products, then use the built‑in contact or “Inquire Price” forms on each listing to reach suppliers directly; no registration or login is required to submit technical inquiries or RFQs.

Filter Products

Connectors

Fibers

Polishing Tools for Fiber Optic Manufacturing

Q: What is fiber optic polishing and why is it critical in connector and component manufacturing?

Fiber optic polishing is the controlled removal of material from connector endfaces or fiber terminations using abrasive films, diamond slurry, or polishing pads to achieve a specified geometry and surface finish. Proper polishing minimizes insertion loss and back reflection by optimizing endface curvature, apex offset, and surface roughness, which is essential for repeatable low-loss connections in telecom, datacom, sensing, and high‑power laser delivery.

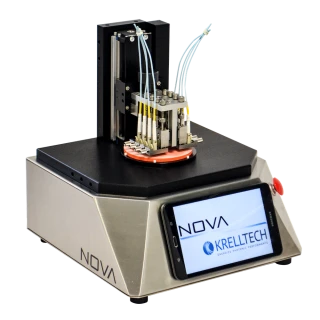

NOVA Connector Polishing System

Request Quote

Sold by: Krell Technologies Ships from: United States

Specifications
Polisher Type:	Connectors

NOVA™ Bare Fiber Polishing System

Request Quote

Sold by: Krell Technologies Ships from: United States

Specifications
Polisher Type:	Fibers

Did You Know?

Did you know that connector endface polishing quality can dominate insertion loss more than fiber type, with typical apex offset tolerances below 50 µm and radius-of-curvature held in the 7–25 mm range for low-reflection UPC and APC terminations? To avoid subsurface microcracks and "chipping" around the fiber, many production lines use multi-step polishing films down to 0.02–0.05 µm grain size, then verify geometry and surface roughness (Ra < 50 nm) with 3D interferometric inspection. Improper pressure or film choice can actually increase back reflection by creating a slight convex or cone-shaped endface, even if the surface looks visually clean under a microscope.

Related Resources

Frequently Asked Questions

Fiber optic polishing is the controlled removal of material from connector endfaces or fiber terminations using abrasive films, diamond slurry, or polishing pads to achieve a specified geometry and surface finish. Proper polishing minimizes insertion loss and back reflection by optimizing endface curvature, apex offset, and surface roughness, which is essential for repeatable low-loss connections in telecom, datacom, sensing, and high‑power laser delivery.

Fiber Optic Polishing Equipment Overview

Polishing tools in fiber optics are used to produce low-loss, low-reflection end faces on single-mode and multimode fibers, connectors, and ferrules. On FindLight you will find specialized polishing fixtures and accessories tailored to industrial fiber optic manufacturing and R&D environments.

These polishing products support precise control over end-face geometry, including apex offset, radius of curvature, and fiber protrusion/undercut. Consistent polishing is critical for achieving target insertion loss and return loss across production batches.

Typical Specifications and Features

Fiber optic polishing equipment is specified by a set of mechanical and process parameters that determine compatibility and performance:

Connector and ferrule types: Support for LC, SC, FC, ST, MPO/MTP, E2000, and custom ferrules.
End-face geometry: PC, UPC, APC (typically 8°) polishing options, with tight tolerances on angles.
Fixture capacity: Number of fibers or connectors per polishing cycle and pitch spacing.
Material and build: Stainless steel or aluminum polishing fixtures for dimensional stability and repeatability.
Plate and film compatibility: Interface with standard polishing pads, films (e.g., 30 µm–0.02 µm), and slurries.
Clamping mechanism: Spring-loaded or screw-based retention ensuring uniform pressure during polishing.
Metrology alignment: Compatibility with interferometric or microscopic inspection workflows after polishing.

Use Cases in Manufacturing and R&D

Typical applications include connectorized patch cord production, pigtail preparation for active devices, polishing of high-fiber-count MT ferrules, and preparation of fibers for sensing probes or specialty fiber assemblies. In R&D, polishing fixtures are used for rapid prototyping of custom terminations and evaluation of new connector geometries.

Buyer Guidance on FindLight

When selecting polishing products on FindLight, compare connector compatibility, fixture capacity, and mechanical tolerances against your process requirements. Evaluate how each polishing solution fits your existing plates, pads, and inspection equipment to minimize integration work.

You can request detailed quotes, ask suppliers about custom polishing jigs or adapters, and clarify cycle time and throughput estimates directly from the product pages. No registration is required to initiate quote requests, allowing you to quickly benchmark polishing options across multiple vendors and align them with your fiber optic manufacturing roadmap.
