How do chemical and plasma fiber etchers differ in working principle?

Chemical fiber etchers use liquid etchants such as hydrofluoric acid to isotropically dissolve silica or doped glass, with process control achieved through temperature, concentration, and immersion time. Plasma (dry) etchers use reactive ion or inductively coupled plasma to remove material anisotropically under vacuum, providing better control over etch profile, reduced undercut, and compatibility with integrated micro-structured features on or around the fiber.

What are common fiber etching configurations and what applications do they target?

Typical configurations include batch HF immersion systems for bulk cladding removal, localized meniscus or droplet etchers for taper and D-fiber fabrication, and plasma chambers with fiber fixtures for advanced micro-structuring. Batch chemical etchers are often used for high-throughput stripping or tapering, while localized and plasma systems target precision sensor structures, mode converters, and specialty fiber devices requiring tight dimensional tolerances.

Which technical specifications are most important when selecting a fiber etcher?

Key parameters include etch rate (µm/min), uniformity along the fiber length, minimum controllable cladding thickness, and process repeatability across runs. You should also consider compatible fiber types (standard SMF, MMF, PM, specialty glass), chemical compatibility, chamber or bath volume, temperature control range, and integration with motion control for taper or profile shaping.

How should I compare process control and safety features across different fiber etchers?

Compare systems based on available monitoring and control loops, such as real-time etch timing, temperature regulation, automated withdrawal or rotation stages, and closed-loop taper profiling. For safety, evaluate containment of HF or other hazardous chemicals, exhaust and scrubbing capability for plasma by-products, interlocks, leak detection, and waste handling provisions aligned with your facility’s EHS requirements.

What factors influence lead time, customization, and pricing for fiber etchers?

Lead times are commonly driven by the level of customization in fixtures, motion stages, and process control software, ranging from a few weeks for standard benchtop chemical units to several months for custom plasma systems. Pricing is influenced by chamber/bath size, automation level, chemical handling modules, vacuum and RF power subsystems, and any tailored tooling for your specific fiber diameters, coatings, or process recipes.

How can I find and compare fiber etchers on FindLight and request quotes without registering?

On FindLight, navigate to Optics Manufacturing → Fiber Optics → Fiber Etcher to view all listed systems, then use filters such as etch method (chemical vs plasma), compatible fiber type, and automation level to narrow results. You can open product detail pages to compare specifications side by side and use the built-in “Request Quote” or “Contact Supplier” forms to send technical requirements directly to vendors without creating an account.

Filter Products

CO2

Fiber Etcher Equipment for Precision Fiber Processing

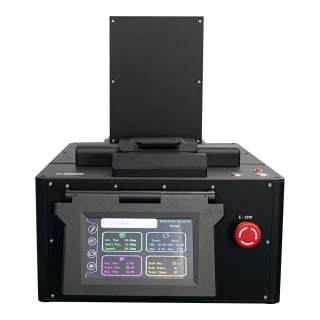

OSCOM TECHNOLOGY - CO2 Laser Etcher - XQ7280A

Request Quote FAST RESPONSE

Sold by: Shenzhen Oscom Technology Co., Ltd Ships from: China

Specifications
Strip Power:	0 – 600 W
Strip Length:	0 – 7.5 cm
Laser Type:	CO2
Laser Power:	35 W
Parameters:	XQ7280A-500W

Did You Know?

Hydrofluoric-acid-based fiber etchers can remove silica at rates on the order of 50–200 nm/min, which is slow enough to sculpt tapered fibers with sub-100 nm diameter control but fast enough for practical batch processing. Because the refractive index of silica changes only weakly with small compositional variations, precise control of etch time and temperature is often more critical for mode-field tailoring than the exact HF concentration. A common misconception is that vapor-phase HF etching is always isotropic; in practice, dopant profiles and stress in the preform can drive mildly anisotropic etch fronts, impacting the symmetry of micronecks and tapers used in sensing and nonlinear optics.

Related Resources

Frequently Asked Questions

A fiber etcher is a tool or system used to remove cladding or selectively thin optical fibers by chemical or plasma etching, typically to prepare tapers, D-shaped fibers, or exposed cores. It is used in manufacturing fiber couplers, sensors, and specialty devices where precise control of the remaining cladding and geometry is critical to optical performance.

What Is a Fiber Etcher?

A Fiber Etcher is a specialized tool used to chemically or plasma-etch optical fibers for controlled removal of cladding, coating, or doped regions. These systems enable precise modification of fiber geometry and refractive index profiles, supporting the fabrication of tapered fibers, sensors, micro-structured fibers, and specialty terminations.

Depending on design, a Fiber Etcher may use wet chemistry (acid or solvent baths), dry plasma etching, or a hybrid process. Fixtures typically align and rotate the fiber while controlling immersion depth or plasma exposure, ensuring uniform etch rates along the processed section.

Typical Specifications and Features

When evaluating a Fiber Etcher, engineers generally consider:

Process type: wet chemical etching vs. plasma/ion etching, compatible fiber materials (silica, doped silica, polymer-clad, specialty fibers).
Etch rate and uniformity: nm/s or µm/min removal rates, axial uniformity over the processed length, surface roughness after etch.
Fiber handling: supported fiber diameter range (e.g., 80–400 µm), maximum fiber length, rotation control, tensioning, and alignment accuracy.
Process control: temperature stability, gas flow or bath agitation, programmable etch profiles, time-based or endpoint-based control.
Safety and environment: chemical containment, exhaust and neutralization, interlocks, and compatible cleanroom classifications.
Integration: data logging, external sensors, and interfaces for lab automation or production control systems.

Use Cases for Fiber Etcher Systems

A Fiber Etcher is used in R&D labs, prototyping lines, and low- to mid-volume production for:

Tapering fibers for mode-field adaptation and coupling to integrated photonics.
Fabricating fiber Bragg grating packages with reduced cladding or modified geometry.
Creating micro-structured or exposed-core regions for fiber sensors and nonlinear optics.
Surface preparation prior to metallization, splicing, or advanced connectorization.

Buyer Guidance on FindLight

On FindLight you can compare Fiber Etcher specifications from available suppliers without registration. Review process type, etch rate, fiber size compatibility, and control options against your application—whether it is precision tapering, sensor fabrication, or experimental fiber designs. For detailed configuration, consumables, and integration questions, contact vendors directly and request quotes through the Fiber Etcher product listings to obtain technical clarifications and commercial terms tailored to your project.
