Description

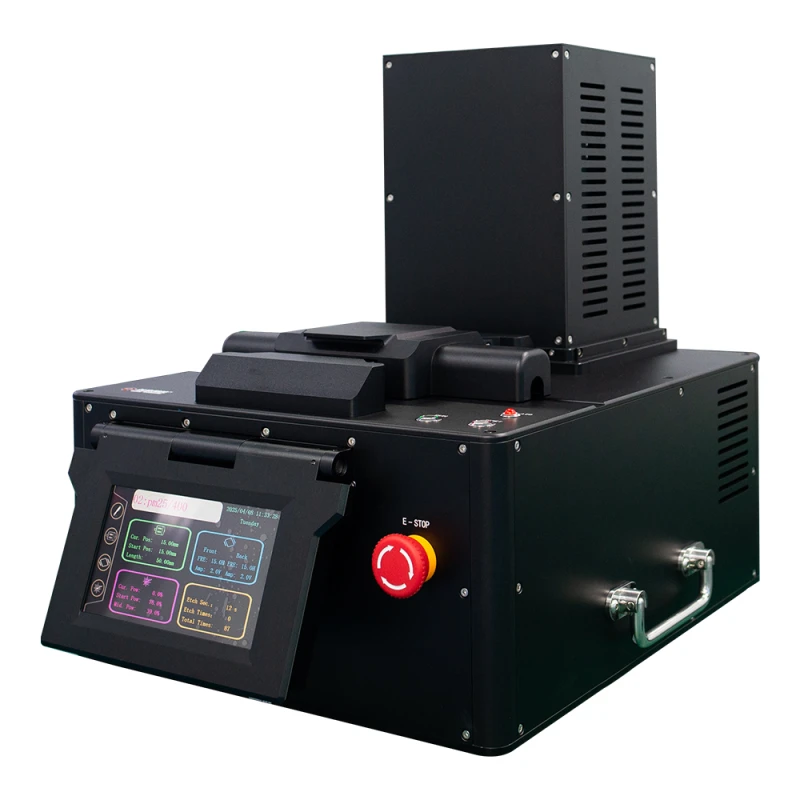

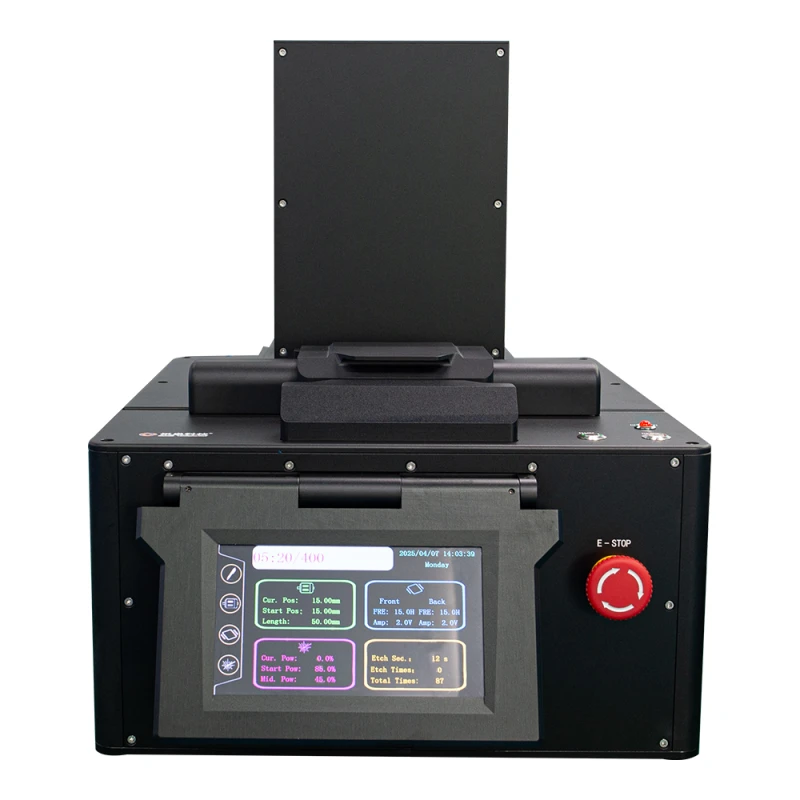

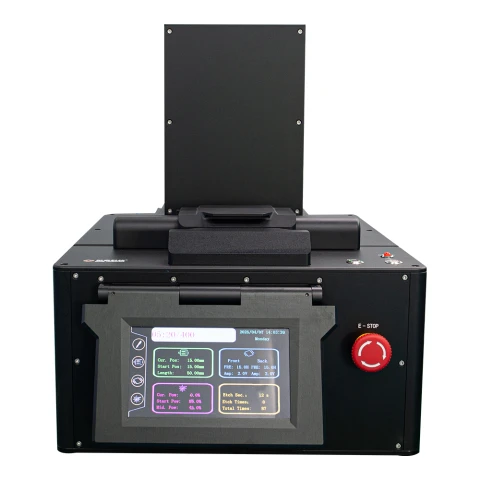

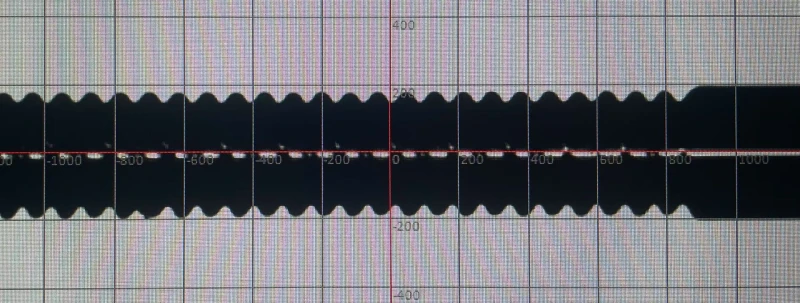

XQ7280A-500W is a CO2 laser etcher with CO2 laser as the heat source which is designed independently by OSCOM Technology. The etcher can etch the fiber, which is used to strip the residual pump light and reflected light in the cladding, protecting the optical devices in the optical path effectively. Compared with the cladding optical power stripper made by chemical corrosion, the fiber strength of the cladding optical power stripper made by laser etching is higher, the production process is safer and more environmentally, and there is more space for development.
OSCOM TECHNOLOGY - CO2 Laser Etcher - XQ7280A
Specifications |
|
|---|---|
| Strip Power: | 0 – 600 W |
| Strip Length: | 0 – 7.5 cm |
| Laser Type: | CO2 |
| Laser Power: | 35 W |
| Parameters: | XQ7280A-500W |
| Fiber Type: | 125-650μm etc. |
| Strip Efficiency: | ≥20dB or customize |
| Strip Power: | 0-600W |
| Strip Length: | 0-7.5cm |
| Laser Type: | CO2 |
| Laser Power: | 35W |

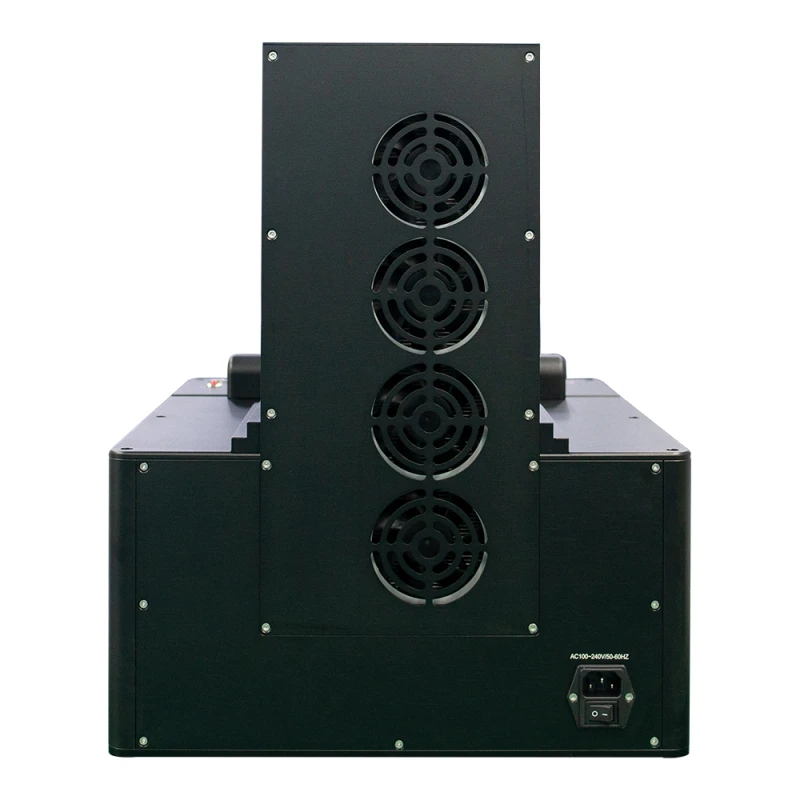

| Power Supply: | AC100-240V/50-60Hz 5A |
| Dimensions (LxWxH): | 380x440x461mm |
| Weight: | 37.6Kg |
Features
- Program control for automatic etching.
- Galvanometer control for fast etching.
- Clean & environment friendly.
- Stripping efficiency (＞20dB).
Applications
- Industrial Lasers
- Optical Fiber Communication
- Optical Fiber Sensing
- Biomedicin
- Laser Radar
- Military Industry
Frequently Asked Questions
The XQ7280A-500W is a CO2 laser etcher designed for etching fibers to strip residual pump light and reflected light in the cladding, thereby protecting optical devices.
The XQ7280A-500W uses a CO2 laser as its heat source.
Key features include program control for automatic etching, galvanometer control for fast etching, and a clean, environmentally friendly operation with a stripping efficiency of over 20dB.
The stripping efficiency of the XQ7280A-500W is greater than 20dB, and it can be customized.
The power supply requirement for the XQ7280A-500W is AC 100-240V, 50-60Hz, 5A.
The dimensions of the XQ7280A-500W are 380 x 440 x 461 mm, and it weighs 37.6 kg.
The XQ7280A-500W can etch fibers with diameters ranging from 125 to 650 micrometers.
