Fiber Cleaver

Fibersect Mechanical Cleaver
Connected Fibers
The fibersect rapidly removes the epoxy and fibers of all ferrules and connectors, including MPO/MTP® ferrules and single fiber connectors and ferrules. With a simple push of a button and a 1- 4 second cycle time the fibersect increases throughput, by reducing the number of steps in the polishing process and helps ...

Specifications

Supported Fiber Cladding: 00-00um
Processing Time: 1-4 s
Ferrule/Connector Adapters: MT 0°/MT 8°/LC/LC-APC/LC-Duplex/SC/SC-APC + others
MT Ferrule Capabilities: 4 to 72 fibers
Adapter Changeover Time: 30 s
...
Data Sheet
OPTEK LaserCleave-1500
Connected Fibers
Engineered to address the production of existing and a new generation of optical interconnects, in a compact and user-friendly platform, LaserCleave™-1500 is designed to maximize productivity in connector manufacture.  This unit has an interchangeable loading port, on a kinematic mount to allow for rapid changeover between ...

Specifications

Supported Fiber Cladding: 00-00um
Electrical Supply: 1.7 kVA
Cooling: Air Cooled; Water Cooling (Optional)
Vision: Integrated Viewing Cameras
Size (WxDxH): 756.0 x 505.0 x 245.0 mm
...
Data Sheet
XQ7130 is mainly used to make polarization maintaining 1´2/2´2/1´3/3´3/WDM optical fiber splitter, including freely adjust various splitting ratio and wavelength. XQ7130 adapt special method to alignment panda eyes of panda fiber to realize the manufacturing of high extinction ratio ...

Specifications

Supported Fiber Cladding: 1-1500um
Stretch Spacing: 18-60 mm
Unilateral Stretching Speed: 0-800 um/s
Holder Motion Accuracy: 0.1/0.8 um
Detector Type: InGaAs
...
Data Sheet

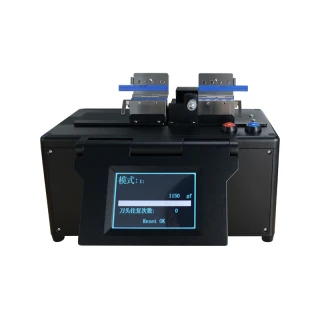

XQ7410 large diameter fiber cleaver is mainly used to cut large diameter fibers and produce optical combiners etc. Through the easy setting of the fiber tension and the stepper of the blade, it can cleave different types of optical fiber and optical combiners easily. The machine not only has the ...

Specifications

Supported Fiber Cladding: 80-1500um
Cleaving Type: Truncation/Chamfer
Coating Layer Dimension: 80 - 2500 um
Cleaving Ways: Pulled taut and scratch
Fiber Type: SM/MM/GDF/YDF/PCF/Optical combiner/Fibre bundle/ Glass tube
...
Data Sheet
Diamond Cleaving Knives For Fiber Optics 4.0mm
Technodiamant USA Inc
Our hand-held diamond cleaving knives are effective and simple to use. They allow for quick and inexpensive preparation on hard or soft samples. The practical pen design with concealable diamond blade contributes to its comfortable handling and storage. The cleaving knife is an ideal accessory when making quick sample preparation in ...

Specifications

Supported Fiber Cladding: 100-4000um
Data Sheet
Diamond Cleaving Knives For Fiber Optics 6.0mm
Technodiamant USA Inc
Our hand-held diamond cleaving knives are effective and simple to use. They allow for quick and inexpensive preparation on hard or soft samples. The practical pen design with concealable diamond blade contributes to its comfortable handling and storage. The cleaving knife is an ideal accessory when making quick sample preparation in ...

Specifications

Supported Fiber Cladding: 100-6000um
Data Sheet
Diamond Cleaving Knives For Fiber Optics 9.5mm
Technodiamant USA Inc
Our hand-held diamond cleaving knives are effective and simple to use. They allow for quick and inexpensive preparation on hard or soft samples. The practical pen design with concealable diamond blade contributes to its comfortable handling and storage. The cleaving knife is an ideal accessory when making quick sample preparation in ...

Specifications

Supported Fiber Cladding: 100-9500um
Data Sheet
LDC-400 Large Diameter Fiber Cleaver
Vytran
LDC-400 is a fully automated fiber cleaver that produces flat and angled cleaves on fibers ranging from 80 microns to 1.25 mm in diameter. This tension-and-scribe system marries the tensioning capabilities of our linear proof testers with precision diamond blade scribing technology to produce consistent low-angle cleaves with ...

Specifications

Supported Fiber Cladding: 80-1250um
Data Sheet
CFC-400-SMA Connectorized Fiber Cleaver
Vytran
CFC-400-SMA is an automated cleaver designed to create a flat cleave an optical fiber that is mounted in an SMA-905 connector. It produces a high-quality, clean fiber end face with a polish-like finish in a fraction of a second. There is no polishing residue and therefore no post-processing necessary. This quick and efficient system ...

Specifications

Supported Fiber Cladding: 80-1000um
Data Sheet
NYFORS AutoCleaver LDF
3-Edge
The AutoCleaver LDF™ is a high precision fiber cleaver, designed for cleaving of large diameter fibers (LDF). It provides outstanding cleaving performance for fibers from 230 μm up to 1000 μm in diameter. The unique and patent pending cleaving process generates typical cleave angles of less than 0.5 degrees. The built-in ...

Specifications

Supported Fiber Cladding: 230-1000um
Data Sheet
NYFORS Angle Cleaving Unit
3-Edge
The Angle cleaving unit™ is a specially designed rotary clamp that can be mounted on NYFORS AutoCleaver LDF™ as an add on. This upgrade allows the cleaver to be used not only for perpendicular cleaving but also for variable angle cleaving of fibers ranging from 230 up to more than 800 µm in diameter. The cleave ...

Specifications

Supported Fiber Cladding: 230-800um
Data Sheet
NYFORS AutoCleaver S2
3-Edge
The AutoCleaver S2™ is a modified version of the NYFORS automatic fiber cleaver, designed for the cleaving of air-clad fibers. It provides outstanding cleaving performance on circular fibers from 125 μm up to 1000 μm in diameter. A unique and patent pending cleaving process generates typical cleave angles of less than 0.5 ...

Specifications

Supported Fiber Cladding: 125-1000um
Data Sheet
NYFORS AutoCleaver S1
3-Edge
The AutoCleaver S1™ senses the edge of the coating to automatically adjust the bare fiber length after cleaving. This feature is valuable when a specific and accurate bare fiber length is required. The requested bare fiber length is specified by the customer at order and can be fine tuned by software between 0 and 500 ...

Specifications

Supported Fiber Cladding: 80-125um
Data Sheet
NYFORS AutoCleaver LDA
3-Edge
The AutoCleaver LDA™ is an automatic system for precision cleaving of circular large diameter fibers (LDF). It is a special version of NYFORS\' well known large diameter cleaver and is designed for both perpendicular and angled cleaving of fibers ranging from 230 up to more than 800 µm in diameter. The cleave angle ...

Specifications

Supported Fiber Cladding: 230-800um
Data Sheet
NYFORS AutoPrep II
3-Edge
The fully automated, high-speed fiber preparation unit AutoPrep II™ strips, cleans and cleaves a fiber in less than 15 seconds. It is designed primarily for industrial applications, where accuracy, reliability and a high production yield are required.The AutoPrep II™ is used for fast and chemical free fiber ...

Specifications

Supported Fiber Cladding: 80-125um
Data Sheet
NYFORS AutoStripper
3-Edge
The AutoStripper™ is designed for fast, chemical free window stripping of optical fibers, using heated air to accomplish the often difficult task of window stripping fibers with acrylate coating diameters up to 550 μm. The AutoStripper™ meets the need for variable and multiple window strip lengths at high strength and ...

Specifications

Supported Fiber Cladding: 125-300um
Data Sheet
MULTIPACK-F Cleaver
Opticus
Swift MultiPack-F is designed to assemble Fusion Splice On Connectors and works with any standard fusion splicer. The  combination stripper With 4 functions, stripping, cleaning, cleaving and sleeving, are in this single unit. In addition to the fibre preparation tools the Multi‐Pack F includes a visible laser source and ...

Specifications

Supported Fiber Cladding: 250-900um
Data Sheet
CT30A Cleaver
Opticus
The CT30A is a high quality fibre cleaving tool for use with fusion splicers.  The CT30A is the easiest to use fibre cleaver. The cleaver blade is pushed into position, the fibre is clamped in the v-groove and the cleaving arm is lowered to initiate the cleaving action. The design of the CT30A has been optimised so that every ...

Specifications

Supported Fiber Cladding: 250-900um
Data Sheet
CI-01 Cleaver
Opticus
The UCL Swift CI-01 is a low cost precision cleaver that gives superb results suitable for fusion splicing. This multi action cleaver is ideal if you are working within a budget or you are looking for a back up cleaver.

Specifications

Supported Fiber Cladding: 250-900um
Data Sheet
CI-03BT Cleaver
Opticus
The CI-03 is the best cleaver for field technicians, it is compact, has an integrated sharps collector, an autorotating blade which gives up to 75,000 cleaves and does not require the user to adjust the blade. The CI-03 uses an oil damper system to ensure the blade contacts the fibre at a steady speed. This reduces stress to the ...

Specifications

Supported Fiber Cladding: 250-900um
Data Sheet
Angle Cleaving Unit2
Nyfors
The AUTOCLEAVER S2™ is an automatic system for precision cleaving of sensitive air-clad and microstructured fiber. It has a specially designed clamping system with air pressure controlled force regulation that enables it to clamp and hold also brittle specialty fibers that might otherwise be damaged during cleaving. It is ...

Specifications

Supported Fiber Cladding: 1-10um
Data Sheet
AUTOCLEAVER S1
Nyfors
This ultra high precision cleaver is specially designed for production applications where close control of bare fiber length after cleaving is required. It senses the edge of the coating and automatically adjusts the cleave point to meet a specific bare fiber length with high precision. This length is specified by the customer at ...

Specifications

Supported Fiber Cladding: 0-500um
Data Sheet
AUTOCLEAVER S2
Nyfors
The AUTOCLEAVER S2™ is an automatic system for precision cleaving of sensitive air-clad and microstructured fiber. It has a specially designed clamping system with air pressure controlled force regulation that enables it to clamp and hold also brittle specialty fibers that might otherwise be damaged during cleaving. It is ...

Specifications

Supported Fiber Cladding: 1-1um
Data Sheet
AUTOCLEAVER LDA
Nyfors
The AUTOCLEAVER LDA™ is an automatic system for precision cleaving of circular large diameter fibers (LDF). It is designed to provide both perpendicular and angled cleaving capability on fibers ranging from 230 up to more than 800 µm in diameter. The cleave angle is set using a micrometer screw positioner allowing ...

Specifications

Supported Fiber Cladding: 230-800um
Data Sheet
AUTOCLEAVER LDF
Nyfors
This fully automated optical fiber cleaver is designed for fast and flexible large diameter fiber processing in factory and laboratory environments. Easily interchangeable fiber handling parts enable high precision cleaving of different circular fibers in the range from 230 µm up to 1000 µm cladding diameter with industry ...

Specifications

Supported Fiber Cladding: 230-1000um
Data Sheet
There are 31 different Fiber Cleaver from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Fiber Cleaver with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Fiber Cleaver vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.
