Description
XQ7415 mini large diameter fiber cleaver is mainly used for cleaving large diameter fibers (50-400μm). Users can cleave different types of large diameter fibers by manually setting the tension required for cleaving fiber. It cleaves quickly and is easy to use. In production, this fiber cleaver can meet the needs that various fibers can be repeatedly cleaved.

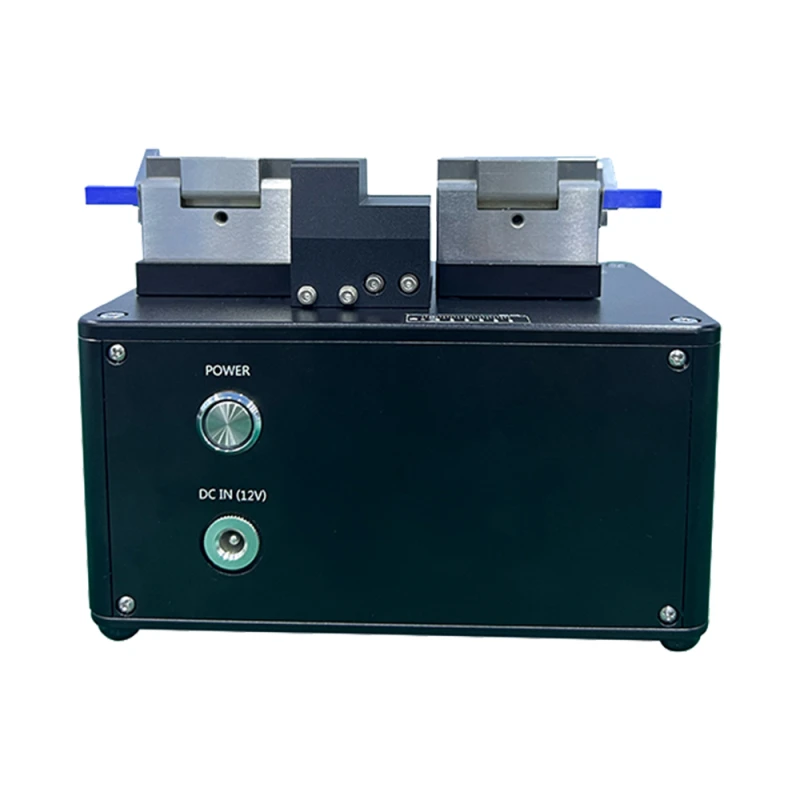

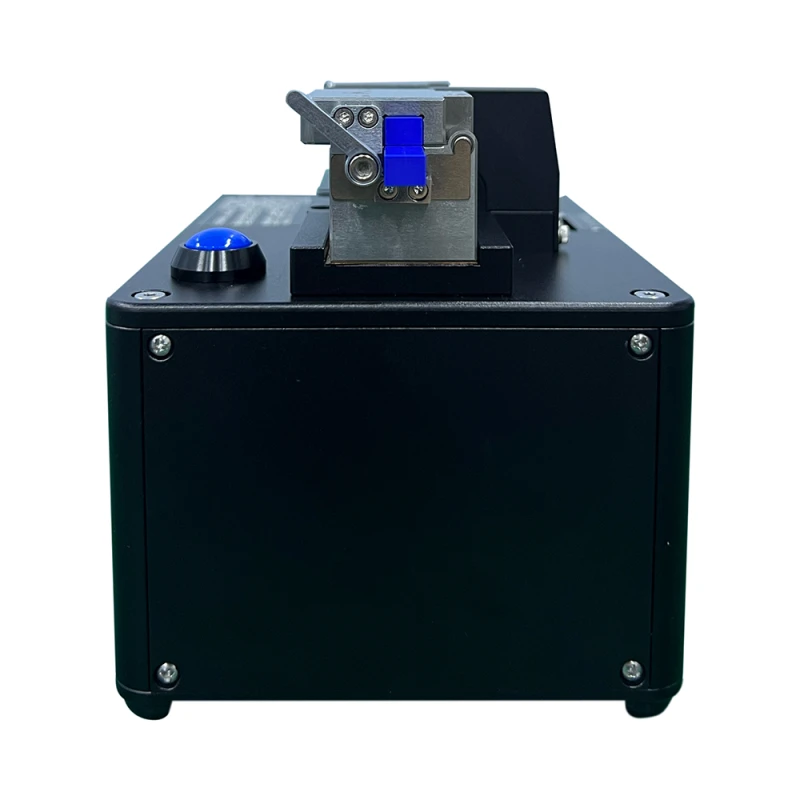

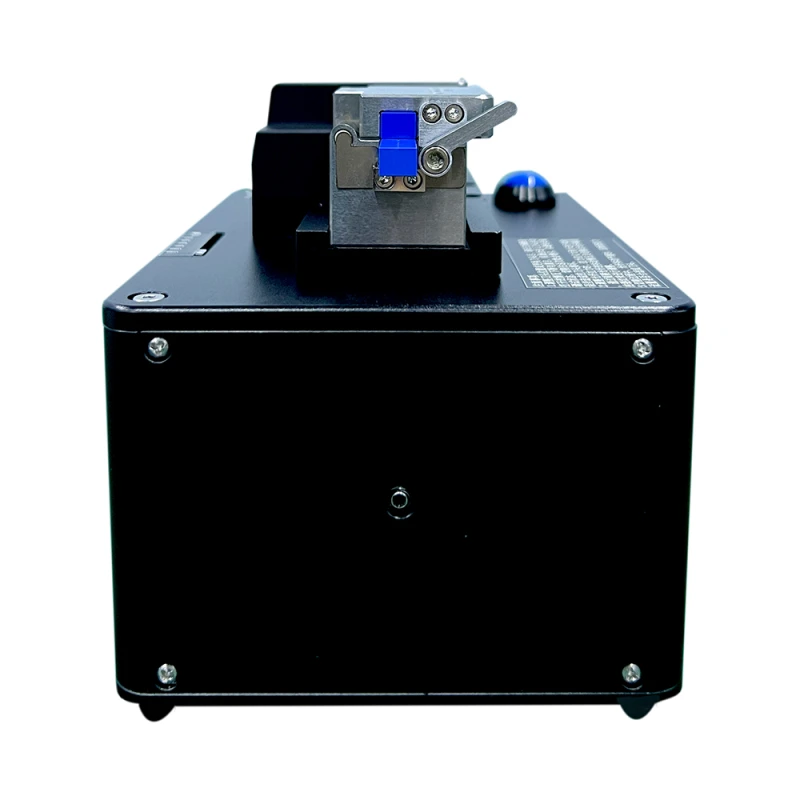

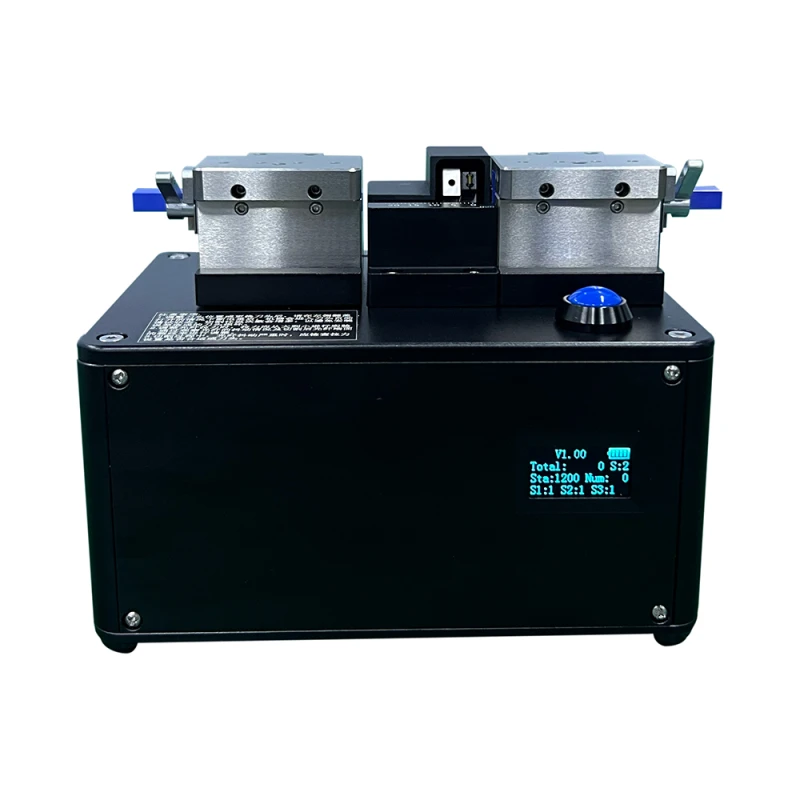

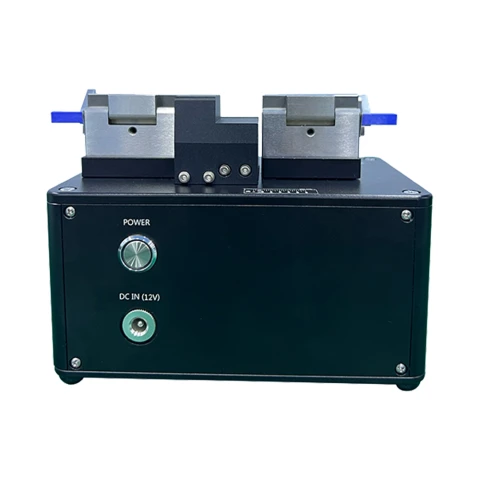

OSCOM TECHNOLOGY - Mini Large Diameter Fiber Cleaver - XQ7415
Specifications
| Supported Fiber Cladding: | 50 – 400 um |
|---|---|
| Parameters: | XQ7415/XQ7415B |
| Cleave Type: | Flat cleave |
| Accepted Fiber Sizes: | Cladding: 50-400μm |
| Accepted Fiber Sizes: | Coating: 125-600μm |
| Accepted Fiber Types: | SM/MM/GDF/YDF |
| Cleave Angle: | ≤0.5° |
| Power Supply: | External: DC (12.6V 2A adapter)/Built-in lithium battery |
| Stand-by Time: | ＞48 hours |
| Continuously Cleave Time: | ＞24 hours |
| Charge Time: | 2 hours |
| Cleave Time: | 5s (Single cleave) |
| Operating Environment: | Temperature: 0-40℃/Humidity: 5-95%RH |
| Dimensions (LxWxH): | 142x102x104mm |
| Weight: | 2Kg |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- The lithium battery can provide more than 24 hours power supply for each charge.
- The lithium battery can be replaced by the user.
- 50-400μm cladding diameter fibers can be cleaved.
- Cleave time: 5 seconds.
- Diamond cleaver blade.
Applications
- Industrial Lasers
- Optical Fiber Communication
- Optical Fiber Sensing
- Biomedicine
- Laser Radar
- Military Industry
Frequently Asked Questions
What is the XQ7415 Mini Large Diameter Fiber Cleaver used for?
The XQ7415 Mini Large Diameter Fiber Cleaver is used for cleaving large diameter fibers with cladding diameters ranging from 50 to 400 micrometers.
What types of fibers can the XQ7415 cleave?
The XQ7415 can cleave single-mode (SM), multi-mode (MM), graded-index (GDF), and ytterbium-doped fibers (YDF).
How long does it take to cleave a fiber using the XQ7415 fiber cleaver?
It takes approximately 5 seconds to cleave a fiber using the XQ7415.
What is the cleave angle precision of the XQ7415 fiber cleaver?
The XQ7415 provides a cleave angle precision of less than or equal to 0.5 degrees.
Does the XQ7415 have a built-in battery?
The XQ7415 model does not have a built-in battery, but the XQ7415B model does include a replaceable lithium battery.
What is the operating environment for the XQ7415 cleaver?
The XQ7415 fiber cleaver operates in temperatures from 0 to 40°C and humidity levels from 5% to 95% RH.
How long does the battery of the XQ7415B last on a full charge?
The built-in lithium battery of the XQ7415B cleaver can provide continuous power for more than 24 hours on a full charge.
